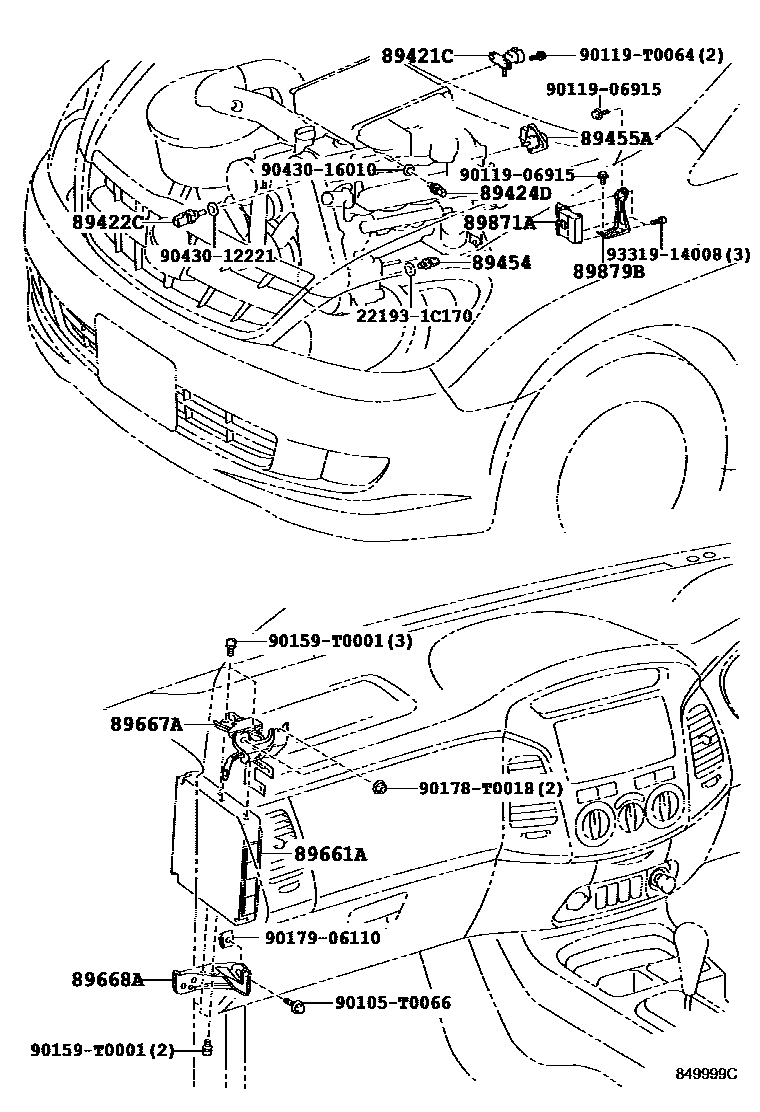

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0003 1 0005 1 0007 1

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-71020iKUN15..XTR..DCR;KUN15,25..DCB,SCB200507-200610

main89421-71030iKUN25..DCB,SCB200608-201108

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iKUN15,2#..4FC,5F200507-201108

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iKUN26..4FC,5F;KUN15..DLX..HDCR;KUN25..THDCB,THSCB,XTR200608-201108

89454SENSOR, FUEL TEMPERATURE

main89454-20010iKUN15,2#..4FC,5F200509-201108

main89454-60010iKUN15,25200507-200508

89455ASENSOR, EGR VALVE POSITION

main89455-35020iKUN15,2#..5F,5FC200507-201108

89661ACOMPUTER, ENGINE CONTROL

main89661-0K390iKUN25..DCB,SCB200507-200610

P/N LABEL=896610KB00

main89661-0K390iKUN25..XTR200511-200610

P/N LABEL=896610K390

main89661-0K440iKUN25..LHD..DCB..CBU200507-200610

TURKEY SPEC,P/N LABEL=896610KB50,P/N LABEL=8966171160,P/N LABEL=896610K440

main89661-0K450iKUN15..DCR200507-200610

P/N LABEL=896610KB30

main89661-0K450iKUN15..DCR200511-200610

P/N LABEL=896610K450

main89661-0K480iKUN15..DCB..DCR..CBU200507-200610

TURKEY SPEC,P/N LABEL=896610K480,P/N LABEL=896610KB60

main89661-0K530iKUN15..SR200507-200610

P/N LABEL=896610KB20

main89661-0K530iKUN15..SR200511-200610

P/N LABEL=896610K530

main89661-0KC60iKUN26..5F200610-200711

P/N LABEL=896610KC60

sub89661-0KC61

main89661-0KC61iKUN26..5F200712-200810

P/N LABEL=896610KC61

main89661-0KD00iKUN26..4FC200610-200711

P/N LABEL=896610KD00

sub89661-0KD01

main89661-0KD01iKUN26..4FC200712-200810

P/N LABEL=896610KD01

sub89661-0KC91

main89661-0KD10iKUN15..HDCR..IV3;KUN25..THDCB,THSCB,XTR;KUN15..(DCB,THDCB)..DLX..HDCR..CBU200608-200711

P/N LABEL=896610KD10

sub89661-0KD11

main89661-0KD11iKUN25..DCB,SCB;KUN15..DCB..CBU;KUN15..(DCB,SCB)..IV3200712-200910

P/N LABEL=896610KD11

main89661-0KD20iKUN15..HDCR..IV3;KUN25..THDCB,THSCB,XTR;KUN15..(DCB,THDCB)..DLX..HDCR..CBU200608-200711

P/N LABEL=896610KD20

sub89661-0KD21

main89661-0KD21iKUN15..THDCB,XTR;KUN15..THSCB..IV3;KUN25..THDCB,THSCB,XTR200712-200910

P/N LABEL=896610KD21

sub89661-0KD11

main89661-0KD30iKUN15..(SCB,THSCB,XTR)..HDCR..CBU200608-200711

P/N LABEL=896610KD30

sub89661-0KD31

main89661-0KD31iKUN15..(SCB,THSCB,XTR)..CBU200712-200910

P/N LABEL=896610KD31

main89661-0KD40iKUN15..(SCB,THSCB,XTR)..HDCR..CBU200608-200711

P/N LABEL=896610KD40

sub89661-0KD41

main89661-0KD41iKUN15..(SCB,THSCB,XTR)..CBU200712-200910

P/N LABEL=896610KD41

main89661-0KE40iKUN26..THDCB..5F200808-200910

LABEL=-0KE40,-0KE50

main89661-0KF20iKUN26..DCB..5FC200808-200910

LABEL=-0KF20,-0KF30

main89661-0KN00iKUN26..DCB..5F200908-201010

P/N LABEL=896610KN00

main89661-0KN10iKUN26..THDCB..5F200908-201010

P/N LABEL=896610KN10

main89661-0KN40iKUN26..LHD..THDCB..5FC200908-201108

P/N LABEL=896610KN40

main89661-0KN50iKUN26..LHD..THDCB..5FC200908-201108

P/N LABEL=896610KN50

main89661-0KN80iKUN15..SCB..CBU200908-201010

P/N LABEL=896610KN80

main89661-0KN90iKUN15..THSCB..CBU200908-201010

P/N LABEL=896610KN90

main89661-0KP00iKUN15..THDCB,XTR;KUN15..THSCB..IV3200908-201010

P/N LABEL=896610KP00

main89661-0KP10iKUN15..THDCB,XTR;KUN15..THSCB..IV3200908-201010

P/N LABEL=896610KP10

main89661-0KP20iKUN25..DCB,SCB200908-201010

P/N LABEL=896610KP20

main89661-0KP30iKUN25..THDCB,THSCB,XTR200908-201010

P/N LABEL=896610KP30

sub89661-0KP20

main89661-0KQ40iKUN26..DCB..5F;KUN26..LHD..THDCB..5F201008-201108

P/N LABEL=896610KQ40

main89661-0KQ50iKUN26..DCB..5F;KUN26..LHD..THDCB..5F201008-201108

P/N LABEL=896610KQ50

main89661-0KQ90iKUN25..RHD..(THDCB,THSCB)201008-201108

P/N LABEL=896610KQ90

main89661-0KR00iKUN25..RHD..(THDCB,THSCB)201008-201108

P/N LABEL=896610KR00

sub89661-0KQ90

main89661-0KR40iKUN15..SCB..CBU201008-201108

P/N LABEL=896610KR40

main89661-0KR50iKUN15..THSCB..CBU201008-201108

P/N LABEL=896610KR50

main89661-0KR60iKUN15..DCB..CBU;KUN15..(DCB,SCB)..IV3201008-201108

P/N LABEL=896610KR60

main89661-0KR70iKUN15..DCB..CBU;KUN15..(DCB,SCB)..IV3201008-201108

P/N LABEL=896610KR70

sub89661-0KR60

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-0K010iKUN15,2#..RHD..(THDCB,THSCB)..5F200507-201108

main89667-0K020iKUN15,2#..LHD..5F200507-201108

main89667-0K030iKUN26..RHD..THDCB..5FC200610-201108

main89667-0K040iKUN26..LHD..5FC200507-201108

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0K030iKUN15,2#..RHD..5F200507-201108

main89668-0K040iKUN2#..LHD..5F;KUN15..LHD..(DCB,SCB)200507-201108

main89668-0K050iKUN26..RHD..DCB..5FC200610-201108

main89668-0K060iKUN26..LHD..5FC200507-201108

89871ADRIVER, INJECTOR

main89871-25010iKUN15,2#..DCB,SCB200908-201108

main89871-71010iKUN15,25..DCB,SCB200507-200910

main89871-71020iKUN26..THDCB200610-200910

89879BBRACKET, INJECTOR DRIVER

main89879-71010iKUN15,2#..RHD..(4FC,5F)200507-200910

main89879-71020iKUN15,2#..LHD..(THDCB,THSCB,XTR)200507-200910

main89879-71030iKUN15,2#..RHD..(THDCB,THSCB)200908-201108

main89879-71040iKUN15..LHD..(THDCB,THSCB,XTR)200908-201108

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

90105T0066

main90105-T0066

9011906915

main90119-06915

90119T0064

main90119-T0064

90159T0001

main90159-T0001

90178T0018

main90178-T0018

9017906110

main90179-06110

9043012221

main90430-12221

9043016010

main90430-16010

9331914008

main93319-14008

20 parts on this diagram · 4 diagrams in section
