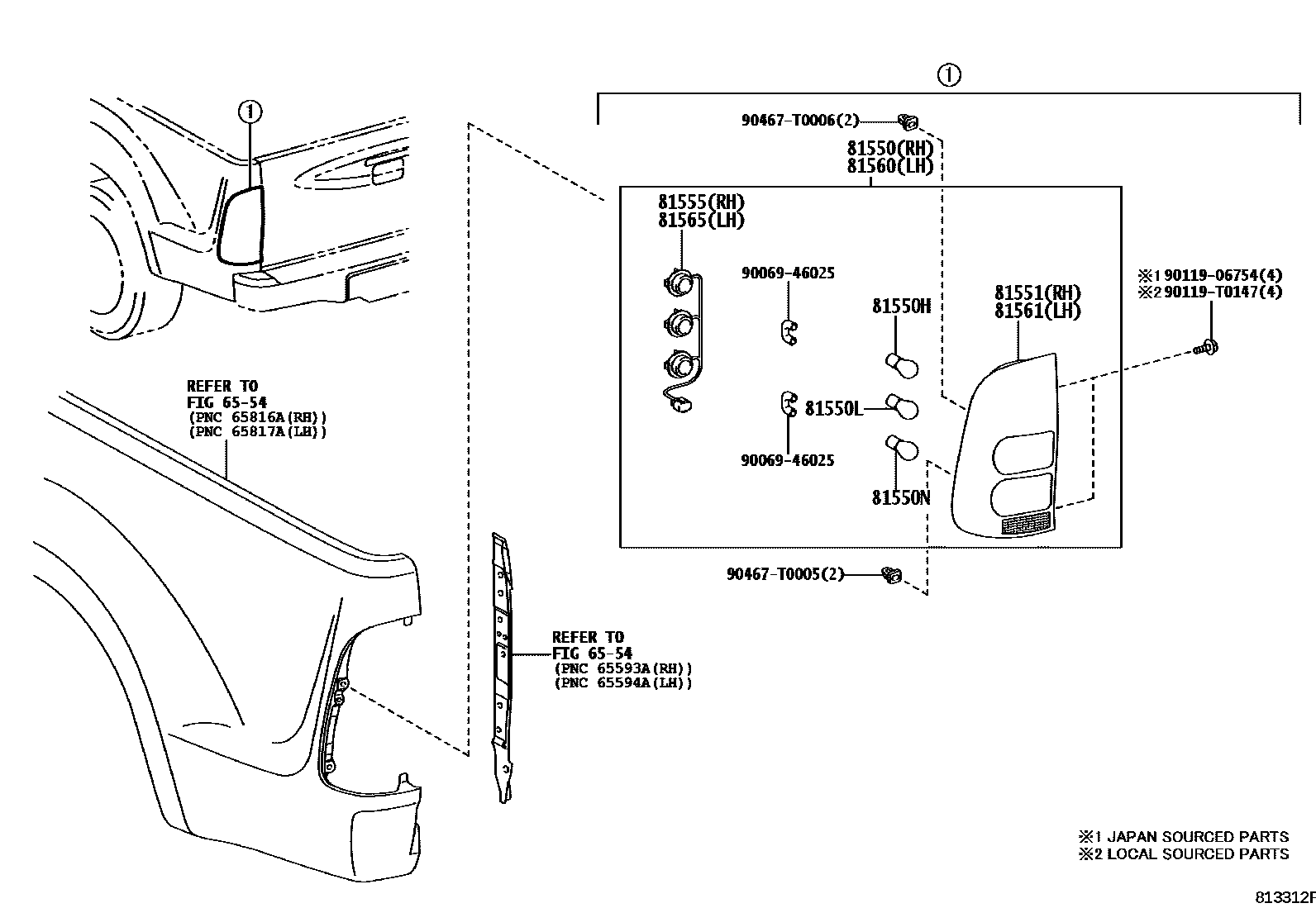

REAR COMBINATION LAMP

0001 1 0002 1

6554

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K010iKUN15,2#..LHD..(THDCB,THSCB,XTR)..CBU200507-201107

main81550-0K020iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-201107

main81550-0K030iKUN15,2#..LHD..(DCB,SCB)..CBU200507-201108

main81550-0K040iKUN15,2#..RHD..(DCB,SCB)200507-201108

main81550-71010iKUN25..IV3;KUN15..(DCB,SCB)..IV3200507-201108

81550HBULB, TAIL & STOP LAMP

main99132-21210iKUN15,2#..4FC,5F200507-201108

81550LBULB, REAR TURN SIGNAL LAMP

main99132-11210iKUN15,2#..4FC,5F200507-201108

81550NBULB, BACK UP LAMP

main99132-11210iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

81551LENS, REAR COMBINATION LAMP, RH

main81551-0K010iKUN15,2#..LHD..(THDCB,THSCB,XTR)..CBU200507-201107

main81551-0K020iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-201107

main81551-0K030iKUN15,2#..LHD..(DCB,SCB)..CBU200507-201108

main81551-0K040iKUN15,2#..RHD..(DCB,SCB)200507-201108

main81551-60442iKUN25..IV3;KUN15..(DCB,SCB)..IV3200507-201108

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K010iKUN15,2#..LHD..(THDCB,THSCB,XTR)..CBU200507-201107

main81555-0K020iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-201107

main81555-0K030iKUN15,2#..LHD..(DCB,SCB)..CBU200507-201108

main81555-0K040iKUN15,2#..RHD..(DCB,SCB)200507-201108

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K010iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-201107

main81560-0K020iKUN15,2#..LHD..(THDCB,THSCB,XTR)..CBU200507-201107

main81560-0K030iKUN15,2#..RHD..(DCB,SCB)200507-201108

main81560-0K040iKUN15,2#..LHD..(DCB,SCB)..CBU200507-201108

main81560-71010iKUN25..IV3;KUN15..(DCB,SCB)..IV3200507-201108

81561LENS, REAR COMBINATION LAMP, LH

main81561-0K010iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-201107

main81561-0K020iKUN15,2#..LHD..(THDCB,THSCB,XTR)..CBU200507-201107

main81561-0K030iKUN15,2#..RHD..(DCB,SCB)200507-201108

main81561-0K040iKUN15,2#..LHD..(DCB,SCB)..CBU200507-201108

main81561-60372iKUN25..IV3;KUN15..(DCB,SCB)..IV3200507-201108

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K010iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-201107

main81555-0K020iKUN15,2#..LHD..(THDCB,THSCB,XTR)..CBU200507-201107

main81555-0K030iKUN15,2#..RHD..(DCB,SCB)200507-201108

main81555-0K040iKUN15,2#..LHD..(DCB,SCB)..CBU200507-201108

9006946025

main90069-46025

9011906754

main90119-06754

90119T0147

main90119-T0147

90467T0005

main90467-T0005

90467T0006

main90467-T0006

15 parts on this diagram · 2 diagrams in section
