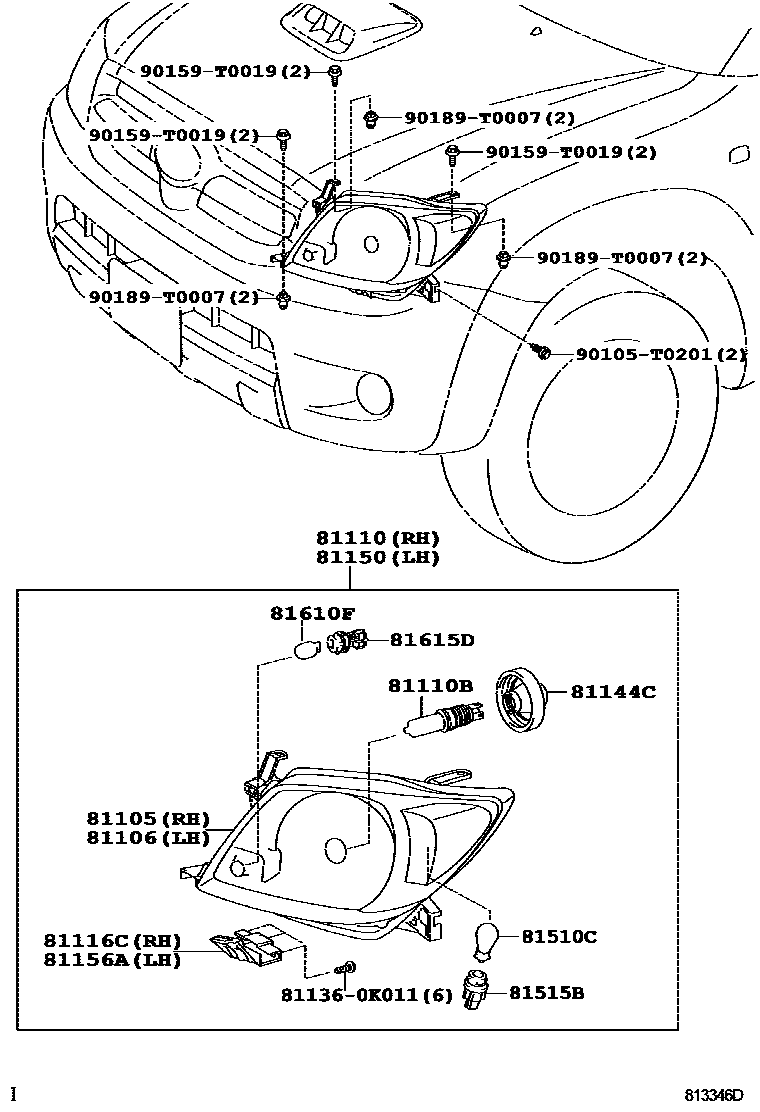

HEADLAMP

0001 1 0003 1

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-0K030iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-200808

main81105-0K040iKUN15,2#..LHD..(THDCB,THSCB,XTR)200507-200808

main81130-0K070iKUN15,2#..RHD..(DCB,SCB)200507-200810

main81130-0K080iKUN15,2#..LHD..(DCB,SCB)200507-200810

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-0K030iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-200808

main81106-0K040iKUN15,2#..LHD..(THDCB,THSCB,XTR)200507-200808

main81170-0K070iKUN15,2#..RHD..(DCB,SCB)200507-200810

main81170-0K080iKUN15,2#..LHD..(DCB,SCB)200507-200810

81110HEADLAMP ASSY, RH

main81110-0K031iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-200808

main81110-0K041iKUN15,2#..LHD..(THDCB,THSCB,XTR)200507-200808

main81110-0K070iKUN15,2#..RHD..(DCB,SCB)200507-200810

main81110-0K080iKUN15,2#..LHD..(DCB,SCB)200507-200810

main81110-0K200iKUN15,2#..RHD..(THDCB,THSCB,XTR)200808-201107

main81110-0K210iKUN15,2#..LHD..(THDCB,THSCB,XTR)200808-201107

main81110-0K240iKUN15,2#..RHD..(DCB,SCB)200810-201108

main81110-0K250iKUN15,2#..LHD..(DCB,SCB)200810-201108

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015iKUN2#..THDCB,THSCB,XTR;KUN15..(THDCB,THSCB,XTR)..HDCR200507-200810

12V 60/55W,*HAL *WH

sub90981-13058

main90981-13058iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200711-201108

12V 60/55W,HALOGEN

81116CBRACKET, HEADLAMP, RH

main81116-0K010iKUN15,2#..4FC,5F200507-200810

main81116-0K180iKUN15,2#..THDCB,THSCB,XTR200808-201107

main81116-0K220iKUN15,2#..DCB,SCB200810-201108

81144CCOVER, HEADLAMP SOCKET

main90069-81040iKUN15,2#..DCB,SCB200507-200810

main90075-65002iKUN15,2#..THDCB,THSCB,XTR200507-200808

81156ABRACKET, HEADLAMP, LH

main81156-0K010iKUN15,2#..4FC,5F200507-200810

main81156-0K180iKUN15,2#..THDCB,THSCB,XTR200808-201107

main81156-0K220iKUN15,2#..DCB,SCB200810-201108

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-WF006iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200808-201108

12V 21W,AMBER

main99132-11210iKUN15,2#..4FC,5F200507-200810

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60069iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200808-201108

main90075-99078iKUN15,2#..4FC,5F200507-200810

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iKUN15,2#..4FC,5F200507-201108

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60066iKUN15,2#..DCB,SCB200507-201108

main90075-65020iKUN15,2#..THDCB,THSCB,XTR200507-201107

811360K011PROTECTOR, HEADLAMP, NO.1 RH

main81136-0K011

90105T0201

main90105-T0201

90159T0019

main90159-T0019

90189T0007

main90189-T0007

15 parts on this diagram · 2 diagrams in section
