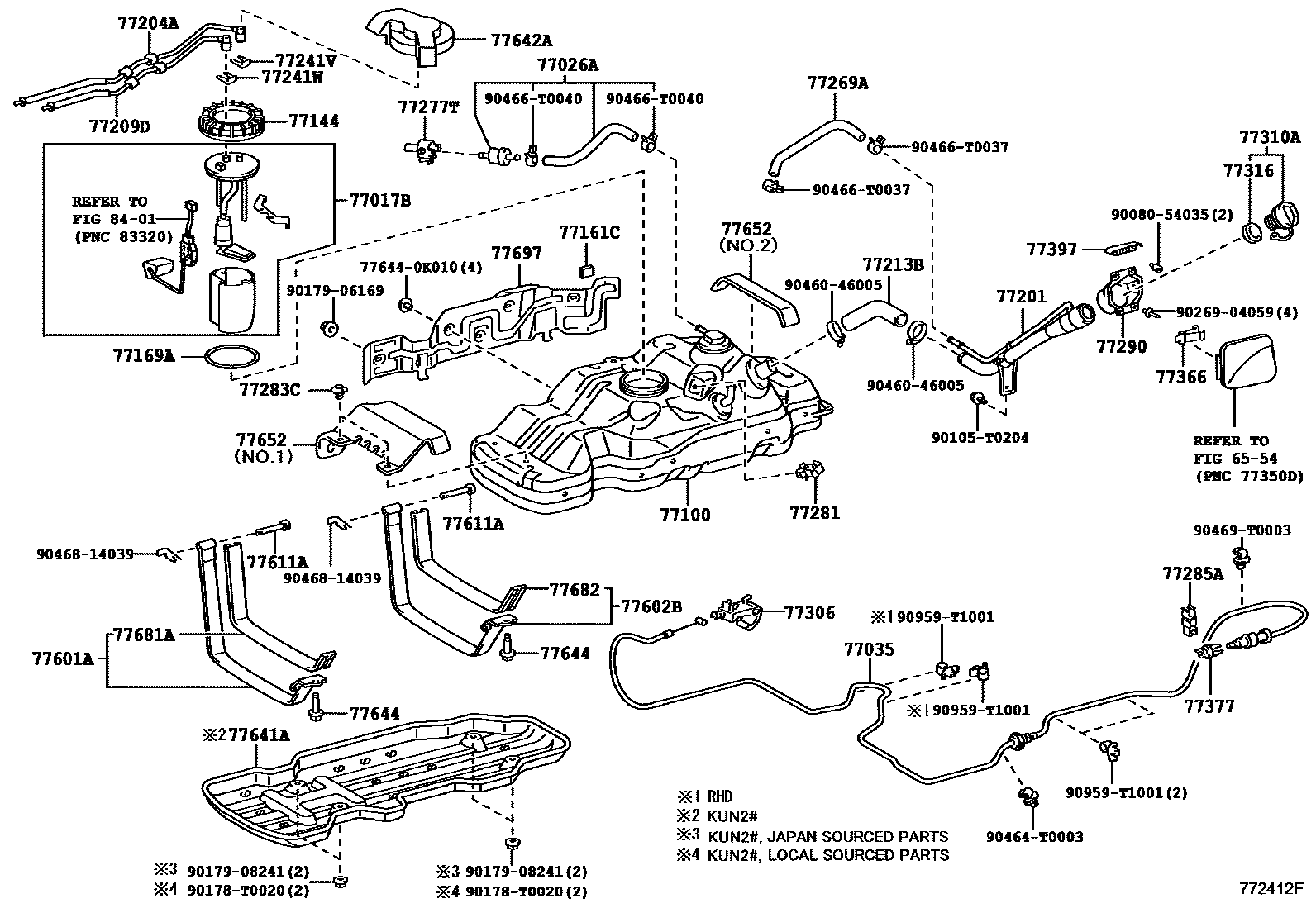

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0005 1FUEL TUBE

6554

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-0K010iKUN15,25..DCB,SCB200507-200511

sub77010-0K011¥13,000

main77010-0K011iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)¥13,000200512-201108

main77010-0K040iKUN15,25..XTR200507-200511

sub77010-0K041¥13,000

main77010-0K041iKUN15,25..XTR¥13,000200512-200808

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77027-0K010iKUN15,2#..4FC,5F200507-201108

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0K010iKUN2#..RHD..(DCB,THDCB)..(4FC,5F)200507-201107

main77035-0K030iKUN15,25..RHD..THSCB200507-201107

main77035-0K040iKUN15,25..LHD..(SCB,THSCB)..CBU200507-201107

main77035-0K110iKUN25..RHD..XTR200507-201107

main77035-0K120iKUN15,25..LHD..XTR..CBU200507-201107

main77035-0K130iKUN15,2#..LHD..DCB..(5F,5FC)..CBU200507-201107

main77035-0K290iKUN2#..RHD..DCB201103-201108

sub77035-0K010

main77035-0K300iKUN15,25..RHD..SCB201103-201108

sub77035-0K030

main77035-0K310iKUN15,25..LHD..SCB..CBU201103-201108

sub77035-0K040

main77035-0K320iKUN15,2#..LHD..DCB..CBU201103-201108

sub77035-0K130

77100TANK ASSY, FUEL

main77001-0K021iKUN15,25..XTR200507-200808

main77001-0K081iKUN15,2#..DCB,SCB200507-201108

main77001-0K220iKUN15,2#..THDCB,THSCB200702-201107

77144RETAINER, FUEL PUMP GAUGE

main77144-0K010iKUN15,2#..4FC,5F¥420200507-201108

77161CPROTECTOR, FUEL TANK, LOWER

main77671-0K010iKUN15,2#..DCB,SCB,XTR200507-201108

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K010iKUN15,2#..4FC,5F¥320200507-201108

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-0K100iKUN15,2#..(4FC,5F)..CBU200507-201108

main77201-0K120iKUN15..(THDCB,THSCB,XTR)..IV3200507-201108

77204ATUBE, FUEL TANK RETURN

main77204-0K020iKUN15..XTR200507-201108

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K020iKUN15,2#..4FC,5F200507-201108

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0K020iKUN15,26..DCB,SCB;KUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB)201006-201108

sub77213-0K021¥9,300

main77213-71010iKUN15,2#..4FC,5F200507-201005

77241VCLIP, TUBE JOINT

main77241-35450iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)¥80200507-201108

77241WCLIP, TUBE JOINT

main77241-33011iKUN15,2#..4FC,5F¥80200507-201108

77269AHOSE, FUEL TANK BREATHER

main77269-0K020iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)201006-201108

main77269-71010iKUN15,2#..5F,5FC200507-201005

77277TBRACKET, CHECK VALVE

main77277-0K010iKUN15,2#..4FC,5F200507-201108

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-0K040iKUN15,2#..4FC,5F¥110200507-201011

sub77281-0K070¥70

main77281-0K070iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)¥70201012-201108

77283CBRACKET, FUEL TANK PROTECTOR

main77283-0K010iKUN15,2#..4FC,5F200507-201108

77285ASUPPORT, FUEL RETURN AND MAIN TUBE

main77285-0K190iKUN2#..RHD..(THDCB,THSCB);KUN15..(THDCB,THSCB,XTR)..CBU¥200200507-201108

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-0K010iKUN15,2#..(THDCB,THSCB,XTR)..CBU200507-201107

main77290-0K020iKUN15,2#..(DCB,SCB)..CBU200507-201108

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-0K010iKUN15,2#..(THDCB,THSCB,XTR)..CBU200507-201107

main77306-0K030iKUN15,2#..(DCB,SCB)..CBU200507-201108

77310ACAP ASSY, FUEL TANK

main77300-52030iKUN25..LHD..SCB..CBU;KUN2#..RHD..(THDCB,THSCB);KUN15..(THDCB,THSCB,XTR)..CBU¥1,560200808-201108

main77300-60010iKUN26..RHD..DCB..4FC¥2,780200507-200810

77316GASKET, FUEL TANK CAP

main77316-16010iKUN15,25..CBU;KUN26..DCB..5F;KUN26..LHD..DCB..4FC;KUN26..THDCB..(4FC,5F)¥660200507-200810

main77316-52040iKUN25..LHD..SCB..CBU;KUN2#..RHD..(THDCB,THSCB);KUN15..(THDCB,THSCB,XTR)..CBU¥230200808-201108

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-0K030iKUN15,2#..(4FC,5F)..CBU¥280200507-201108

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-0K010iKUN15,2#..(4FC,5F)..CBU¥200200507-201108

77397PLATE, FUEL INLET PIPE SEAL

main77397-0K010iKUN15,2#..(4FC,5F)..CBU200507-201108

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0K010iKUN15..THDCB,THSCB,XTR200507-201107

main77601-0K040iKUN2#..THDCB,THSCB,XTR200507-201107

main77601-0K080iKUN15..DCB,SCB200507-201108

main77601-0K090iKUN2#..DCB,SCB200507-201108

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0K010iKUN15..THDCB,THSCB,XTR200507-201107

main77602-0K040iKUN2#..THDCB,THSCB,XTR200507-201107

main77602-0K070iKUN15..DCB,SCB200507-201108

main77602-0K080iKUN2#..DCB,SCB200507-201108

77611APIN (FOR FUEL TANK BAND)

main77653-0K040iKUN15..XTR¥1,160200507-200611

sub77653-0K041¥730

main77653-0K041iKUN25..THDCB,THSCB;KUN15,26..(THDCB,THSCB,XTR)..(4FC,5F)¥730200607-201108

77641APROTECTOR, FUEL TANK, NO.1

main77641-0K030iKUN25..XTR200507-200702

main77641-0K050iKUN2#..RHD..(THDCB,THSCB)200808-201108

main77641-0K070iKUN26..5F;KUN25..RHD..SR;KUN25..RHD..SCB;KUN26..LHD..4FC200507-200702

sub77641-0K090

main77641-0K120iKUN25..LHD..SCB;KUN25..(DCB,XTR)..DLX;KUN25..LHD..(DCB,XTR)..SR200612-200808

sub77641-0K050

77642APROTECTOR, FUEL TANK, NO.2

main77641-0K100iKUN15,25..XTR200509-201107

77644BOLT, FUEL TANK

main77644-35030iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)¥130200507-201108

77652CUSHION, FUEL TANK, NO.1

main77652-0K010iKUN15,2#..4FC,5F¥2,060200507-201108

NO.1

main77652-0K020iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)¥560200507-201108

NO.2

77681ASEAT, FUEL TANK BAND

main77681-0K040iKUN15,2#..4FC,5F200507-201108

77682SEAT, FUEL TANK BAND, LH

main77682-0K020iKUN15,2#..4FC,5F200507-201108

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)¥6,500200507-201108

8401

776440K010BOLT, FUEL TANK

main77644-0K010¥60

9008054035

main90080-54035

90105T0204

main90105-T0204¥80

90178T0020

main90178-T0020

9017906169

main90179-06169¥90

9017908241

main90179-08241¥80

9026904059

main90269-04059¥60

9046046005

main90460-46005¥190

90464T0003

main90464-T0003

90466T0037

main90466-T0037

90466T0040

main90466-T0040¥100

9046814039

main90468-14039¥60

90469T0003

main90469-T0003

90959T1001

main90959-T1001

51 parts on this diagram · 4 diagrams in section
