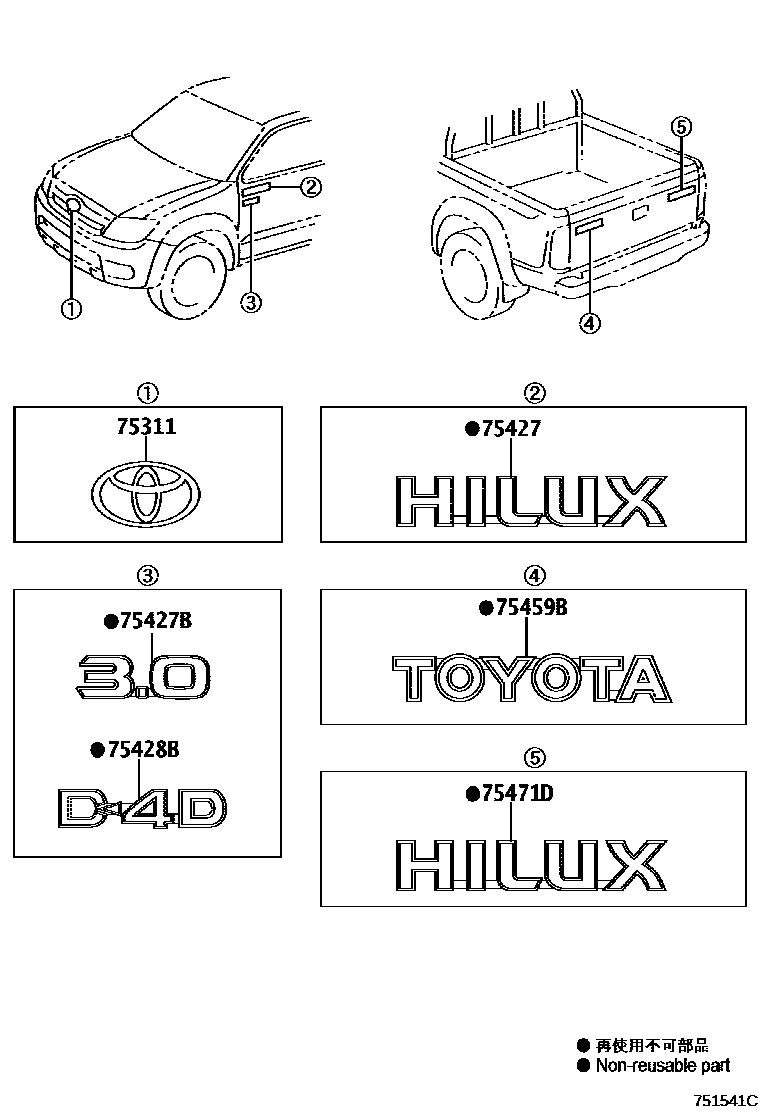

EMBLEM & NAME PLATE

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-0K010iKUN15,2#..4FC,5F200507-201108

main75311-0K090iKUN2#..LHD..DCB..CBU201008-201108

RUSSIA & UKURAINE SPEC

75427PLATE, FRONT DOOR NAME

main75427-0K010iKUN15,25200507-200606

sub75427-0K011

main75427-0K011iKUN15,2#..5F,5FC200607-200811

main75427-0K040iKUN25..LHD..THDCB..CBU201008-201108

RUSSIA & UKURAINE SPEC

main75427-0K050iKUN15,26..DCB,SCB;KUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB)200812-201108

75427BPLATE, FRONT DOOR NAME, NO.1

main75473-0K021iKUN26..4FC,5F200610-200810

75428BPLATE, FRONT DOOR NAME, NO.2

main75428-0K020iKUN15,25200507-200606

sub75428-0K021

main75428-0K021iKUN15,2#..4FC,5F200607-200810

75459BMARK, TAIL GATE, NO.2

main75469-0K010iKUN15,25..SCB..CBU200507-200606

TOYOTA

sub75469-0K011

main75469-0K011iKUN15,2#..CBU200607-200711

main75469-0K020iKUN2#..RHD..(THDCB,THSCB);KUN15..(THDCB,THSCB,XTR)..CBU200808-201108

main75469-0K020iKUN15,2#..(4FC,5F)..CBU200711-200810

TOYOTA

main75469-0K030iKUN25..LHD..THDCB..CBU201008-201108

RUSSIA & UKURAINE SPEC

75471DPLATE, REAR NAME

main75427-0K010iKUN15,25..CBU200507-200606

HILUX

sub75427-0K011

main75427-0K011iKUN25..LHD..(DCB,THDCB)..SR;KUN25..LHD..(SCB,THSCB)..CBU;KUN15,26..LHD..(DCB,SCB,THDCB,THSCB)..(5F,5FC)..CBU200808-200811

HILUX,RUSSIA & UKURAINE SPEC&TAIL GATE-WITHOUT

main75427-0K011iKUN15,2#..(4FC,5F)..CBU200607-200811

HILUX

main75427-0K011iKUN15,2#..(5F,5FC)..CBU200808-200811

HILUX,TAIL GATE-WITHOUT

main75427-0K040iKUN25..LHD..THDCB..CBU201008-201108

HILUX,RUSSIA & UKURAINE SPEC

main75427-0K050iKUN15,2#..CBU200812-201108

HILUX,RUSSIA & UKURAINE SPEC&TAIL GATE-WITHOUT

main75427-0K050iKUN25..LHD..(DCB,THDCB)..SR;KUN25..LHD..(SCB,THSCB)..CBU;KUN15,26..LHD..(DCB,SCB,THDCB,THSCB)..CBU200812-201108

HILUX

main75427-0K050iKUN25..LHD..(DCB,THDCB)..SR;KUN25..LHD..(SCB,THSCB)..CBU;KUN15,26..LHD..(DCB,SCB,THDCB,THSCB)..CBU200812-201108

HILUX,TAIL GATE-WITHOUT

6 parts on this diagram · 1 diagram in section
