ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1ARMREST 0004 1ARMREST 0005 1VISOR & ASSIST GRIP

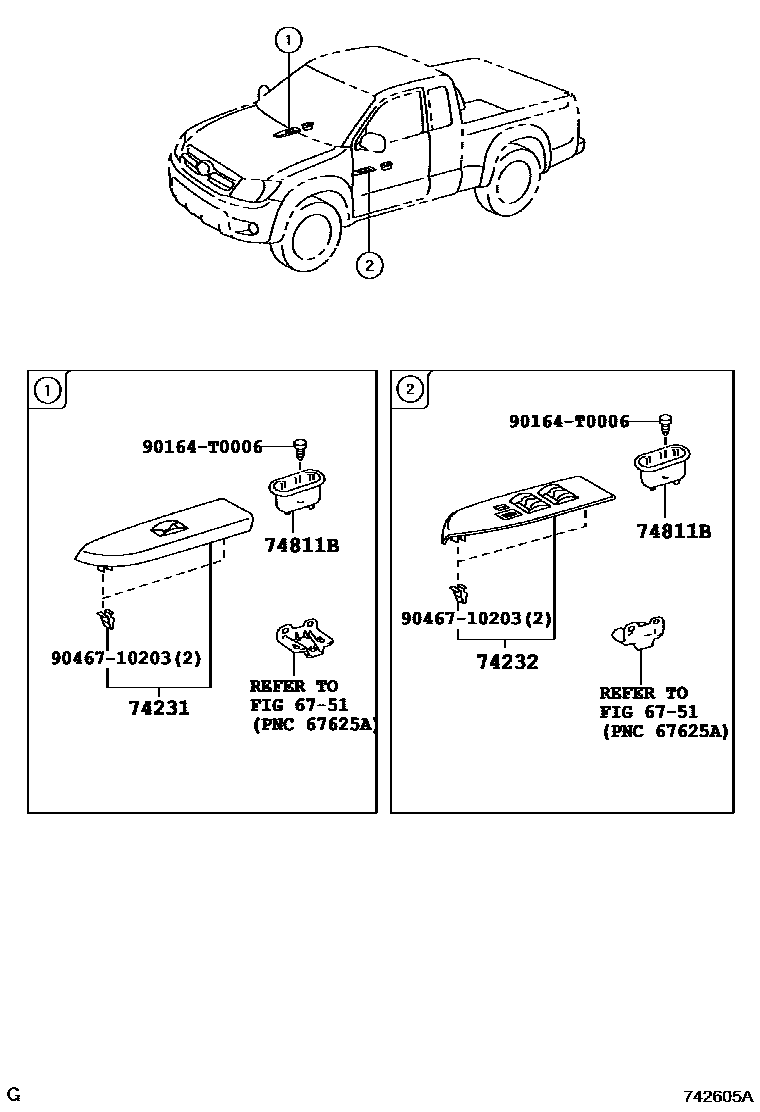

6751

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0K010-B0iKUN25..RHD..THDCB..DLX200702-200808

GRAY,TRIM1#

main74231-0K030-B0iKUN25..RHD..DCB..DLX200810-201108

GRAY,TRIM1#

main74231-0K060-B0iKUN15,25..RHD..(SCB,THSCB,XTR)200507-200810

GRAY,TRIM1#

main74231-0K130iKUN2#..RHD..THDCB..SR200702-200808

sub74231-0KA10

main74231-0K140iKUN15,2#..LHD..(DCB,XTR)..SR200507-200810

sub74231-0KA20

main74231-0K160iKUN2#..RHD..(5F,5FC)..SR200808-201108

sub74231-0KA10

main74231-0K170iKUN2#..LHD..(DCB,THDCB)..(5F,5FC)..SR200808-201108

sub74231-0KA20

main74231-0K180iKUN2#..RHD..DCB..SR200507-200810

main74231-0K250iKUN2#..LHD..THDCB..SR200702-200808

sub74231-0KA20

main74231-0K310iKUN25..XTR..SR200808-201107

GRAY

sub74231-0KA20

main74231-0K020-B0iKUN15,25..LHD..DLX200507-200810

POWER DOOR LOCK-WITH,GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0K010-B0iKUN15,25..RHD..(THDCB,THSCB,XTR)..DLX200507-200808

GRAY,TRIM1#

main74232-0K030-B0iKUN15,25..RHD..(DCB,SCB)..DLX200810-201108

GRAY,TRIM1#

main74232-0K130iKUN2#..RHD..THDCB..SR200702-200808

sub74232-0K880

main74232-0K150iKUN25..XTR..SR200507-200808

sub74232-0K481

main74232-0K160iKUN2#..RHD..(5F,5FC)..SR200808-201108

sub74232-0K880

main74232-0K170iKUN2#..LHD..(DCB,THDCB)..(5F,5FC)..SR200808-201108

sub74232-0K890

main74232-0K180iKUN2#..RHD..DCB..SR200507-200810

main74232-0K190iKUN15,2#..LHD..DCB..SR200507-200810

sub74232-0K890

main74232-0K250iKUN2#..LHD..THDCB..SR200702-200808

sub74232-0K890

main74232-0K310iKUN25..XTR..SR200808-201107

GRAY

sub74232-0K481

main74232-0K020-B0iKUN15,25..LHD..(DCB,THDCB)..DLX200507-200810

POWER DOOR LOCK-WITH,GRAY,TRIM1#

main74232-0K060-B0iKUN15,25..LHD..(SCB,THSCB,XTR)..DLX200808-201108

POWER DOOR LOCK-WITH,GRAY,TRIM1#

74811BHANDLE, DOOR PULL

main74811-0K010-A0×2iKUN25..XTR..SR200507-200808

IVORY,TRIM0#

main74811-0K010-B0×2iKUN15,25..THSCB,XTR200507-200808

GRAY,TRIM1#

main74811-0K020-A0×4iKUN15,25..DCB..SR200507-200810

IVORY,TRIM0#

main74811-0K020-B0×4iKUN15,25..SCB200810-201108

GRAY,TRIM1#

90164T0006

main90164-T0006

9046710203

main90467-10203

6 parts on this diagram · 5 diagrams in section
