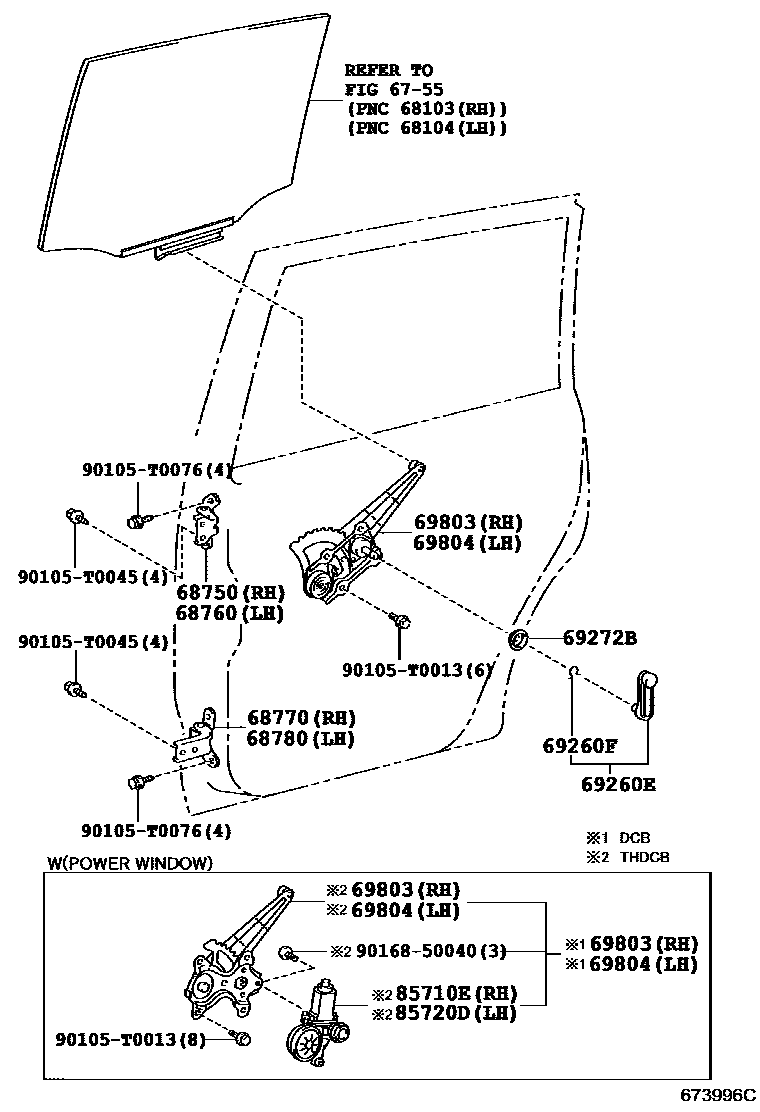

REAR DOOR WINDOW REGULATOR & HINGE

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0K010iKUN25..THDCB200702-201107

main68750-0K020iKUN15,2#..DCB200507-201108

sub68750-0K010

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0K010iKUN25..THDCB200702-201107

main68760-0K020iKUN15,2#..DCB200507-201108

sub68760-0K010

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02020iKUN15,2#..DCB200704-201108

main68770-52030iKUN15,25..DCB200507-200609

sub68770-52031

main68770-52031iKUN25..THDCB200610-201107

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02020iKUN15,2#..DCB200704-201108

main68780-52030iKUN15,25..DCB200507-200609

sub68780-52031

main68780-52031iKUN15,26..THDCB200610-201107

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-0K010-B0iKUN25..LHD..THDCB..DLX200702-201107

GRAY,TRIM1#

main69260-0K020-B0iKUN15,25..LHD..DCB..DLX200507-201108

GRAY,TRIM1#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274iKUN15..THDCB200702-201108

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-04020iKUN25..LHD..THDCB..DLX200702-201107

main69268-0K010iKUN15,25..LHD..DCB..DLX200507-201108

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0K010iKUN26..THDCB200702-201107

POWER DOOR LOCK-WITH

main69830-0K010iKUN25..LHD..THDCB..DLX200702-201107

main69830-0K030iKUN15,25..LHD..DCB..DLX200507-200902

sub69830-0K031

main69830-0K031iKUN15,25..LHD..DCB..DLX200903-201108

main69830-0K040iKUN15,25..LHD..DCB..DLX200507-200902

POWER DOOR LOCK-WITH

sub69830-0K041

main69830-0K041iKUN2#..DCB..SR;KUN25..RHD..DCB..DLX200903-201108

POWER DOOR LOCK-WITH

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0K010iKUN25..RHD..THDCB;KUN25..LHD..THDCB..SR200702-201107

POWER DOOR LOCK-WITH

main69840-0K010iKUN25..LHD..THDCB..DLX200702-201107

main69840-0K030iKUN15,25..LHD..DCB..DLX200507-200902

sub69840-0K031

main69840-0K031iKUN15,25..LHD..DCB..DLX200903-201108

main69840-0K040iKUN15,25..LHD..DCB..DLX200507-200902

POWER DOOR LOCK-WITH

sub69840-0K041

main69840-0K041iKUN2#..DCB..SR;KUN25..RHD..DCB..DLX200903-201108

POWER DOOR LOCK-WITH

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0K020iKUN25..RHD..THDCB;KUN25..LHD..THDCB..SR200702-201107

POWER DOOR LOCK-WITH

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0K020iKUN25..RHD..THDCB;KUN25..LHD..THDCB..SR200702-201107

POWER DOOR LOCK-WITH

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
