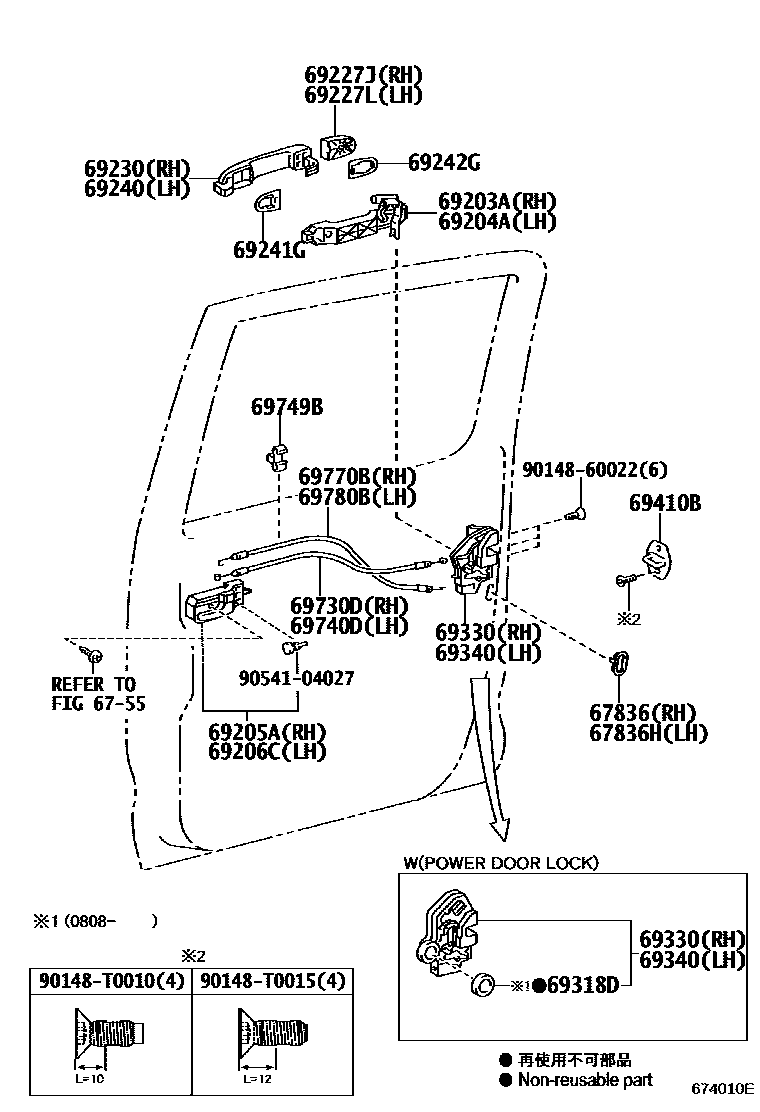

REAR DOOR LOCK & HANDLE
6755
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
BLACK
BLACK,*299
BLACK,WIRELESS DOOR LOCK-WITH,*299
BLACK
*CR
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
BLACK
BLACK,*299
BLACK,WIRELESS DOOR LOCK-WITH,*299
BLACK
*CR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATED
PLATING
NO PAINT REQ.
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH,*299
NO PAINT REQ.,*299
NO PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATED
PLATING
NO PAINT REQ.
NO PAINT REQ.,*299
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH,*299
NO PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
POWER DOOR LOCK-WITH
69330LOCK ASSY, REAR DOOR, RH
POWER DOOR LOCK-WITH
POWER DOOR LOCK-WITH
69340LOCK ASSY, REAR DOOR, LH
POWER DOOR LOCK-WITH
POWER DOOR LOCK-WITH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
POWER DOOR LOCK-WITH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
POWER DOOR LOCK-WITH
69749BCLAMP, REAR DOOR LOCK LINK
POWER DOOR LOCK-WITH
main69749-32040iKUN25..DCB;KUN25..RHD..THDCB;KUN25..LHD..THDCB..SR;KUN15,26..(DCB,THDCB)..(4FC,5F)200507-201108
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
POWER DOOR LOCK-WITH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
POWER DOOR LOCK-WITH
9014860022
main90148-60022
90148T0010
main90148-T0010
90148T0015
main90148-T0015
9054104027
main90541-04027
26 parts on this diagram · 1 diagram in section
