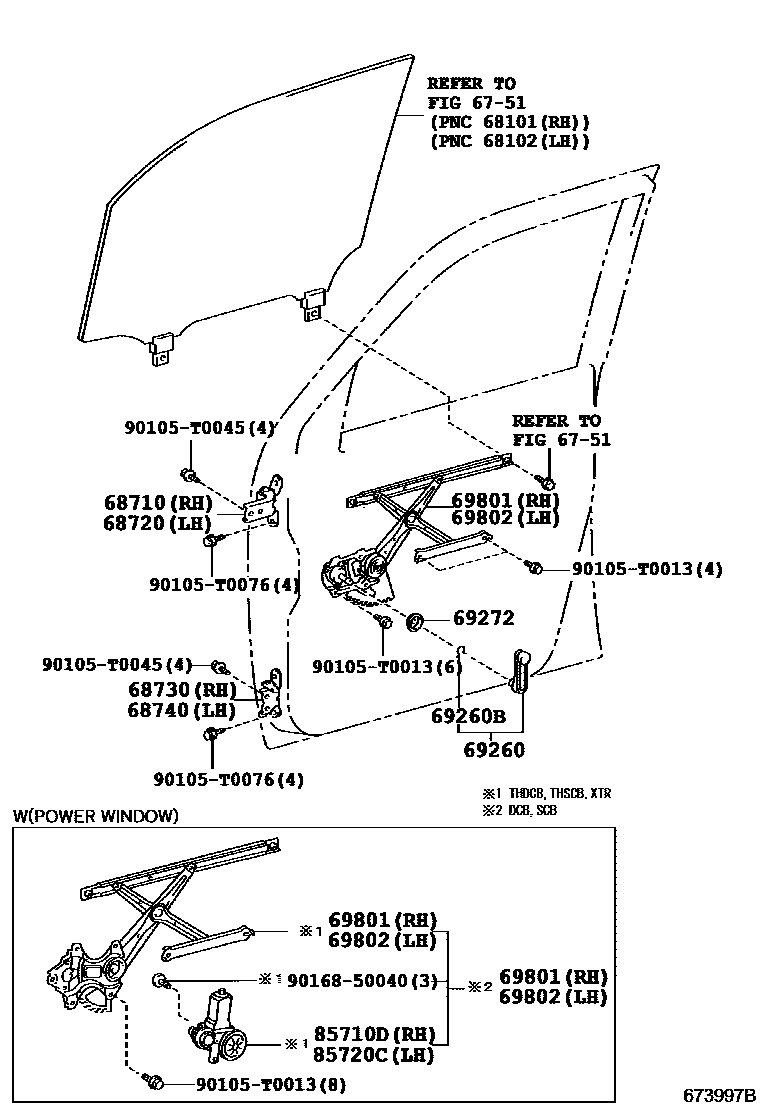

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02070iKUN15,2#..DCB,SCB200810-201108

main68710-0D030iKUN15,2#..THDCB,THSCB,XTR200808-201107

main68710-12150iKUN15,25..DCB,SCB200507-200609

main68710-12151iKUN15,2#..DCB,SCB200610-200703

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02070iKUN15,2#..DCB,SCB200810-201108

main68720-0D030iKUN25..THSCB,XTR;KUN15,26..THDCB,THSCB,XTR200507-200808

main68720-12150iKUN15,25..DCB,SCB200507-200609

main68720-12151iKUN15,2#..DCB,SCB200610-200703

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-52010iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200808-201108

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-52010iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200808-201108

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0K010-B0×2iKUN25..LHD..(THSCB,XTR)..DLX;KUN15..LHD..(THDCB,THSCB,XTR)200507-200808

GRAY,TRIM1#

main69260-0K020-B0×2iKUN15,25..LHD..(DCB,SCB)..DLX200810-201108

GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iKUN15,25..LHD..THDCB..DLX200702-200808

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-04020×2iKUN25..LHD..(THSCB,XTR)..DLX;KUN15..LHD..(THDCB,THSCB,XTR)200507-200808

main69268-0K010×2iKUN15,25..LHD..(DCB,SCB)..DLX200507-200810

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0K010supersedes 69810-0K010iKUN15,25..LHD..(THDCB,THSCB,XTR)..DLX200808-200908

POWER DOOR LOCK-WITH

main69801-0K011supersedes 69810-0K011iKUN15,25..LHD..(THDCB,THSCB,XTR)..DLX200909-201107

POWER DOOR LOCK-WITH

main69810-0K040supersedes 69810-0K030iKUN15,25..LHD..(DCB,SCB)..DLX200810-200902

POWER DOOR LOCK-WITH

main69810-0K041supersedes 69810-0K031iKUN15,25..LHD..(DCB,SCB)..DLX200903-201108

POWER DOOR LOCK-WITH

main69810-0K140iKUN26..RHD..DCB200710-200810

main69810-0K141iKUN26..RHD..DCB200903-201108

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0K010supersedes 69820-0K010iKUN15,25..LHD..(THDCB,THSCB,XTR)..DLX200808-200908

POWER DOOR LOCK-WITH

main69802-0K011supersedes 69820-0K011iKUN15,25..LHD..(THDCB,THSCB,XTR)..DLX200909-201107

POWER DOOR LOCK-WITH

main69820-0K040supersedes 69820-0K030iKUN26..LHD..DCB200507-200710

main69820-0K041supersedes 69820-0K031iKUN15,25..LHD..(DCB,SCB)..DLX200903-201108

POWER DOOR LOCK-WITH

main69820-0K140iKUN26..LHD..DCB200810-200902

main69820-0K141iKUN26..LHD..DCB200903-201108

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0K010iKUN15,25..LHD..(THDCB,THSCB,XTR)..DLX200808-201107

POWER DOOR LOCK-WITH

main85710-0K030iKUN26..RHD..THDCB200808-201107

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0K010iKUN25..XTR..SR;KUN26..RHD..THDCB;KUN15,25..RHD..(THSCB,XTR)200507-200808

POWER DOOR LOCK-WITH

main85720-0K050iKUN26..LHD..THDCB200708-200808

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
