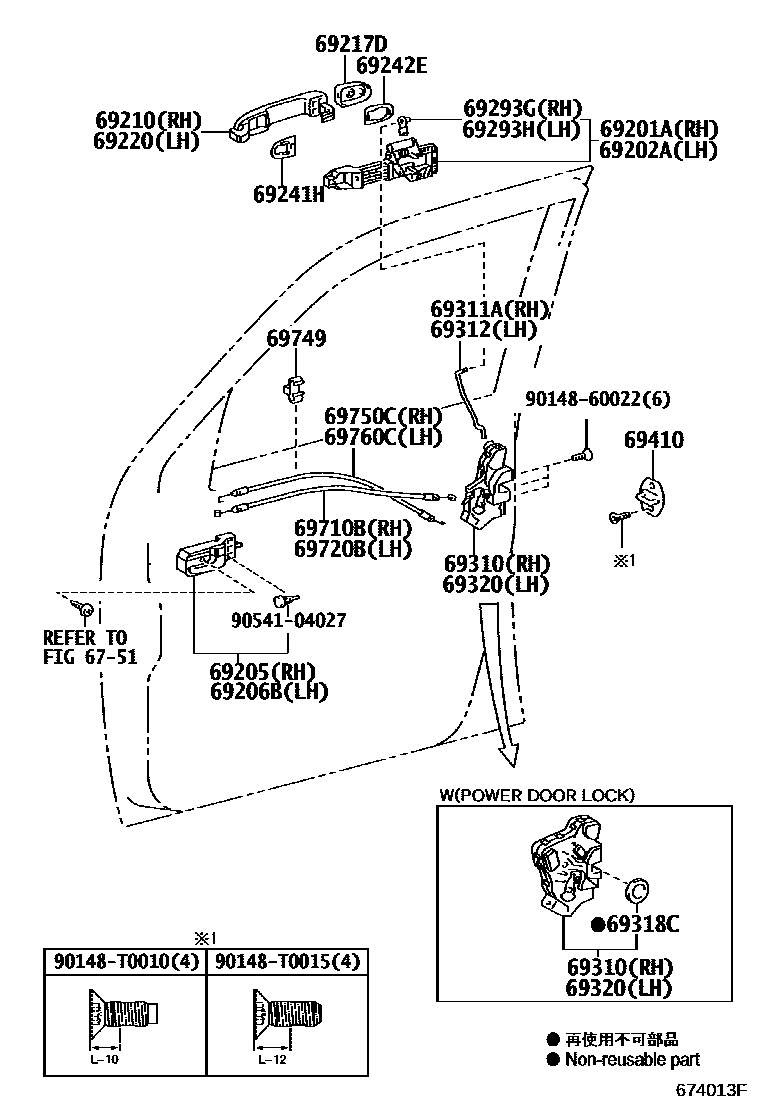

FRONT DOOR LOCK & HANDLE
6751
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
GRAY,TRIM1#
sub69206-0D070
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
PLATED,*299
PLATING
NO PAINT REQ.
NO PAINT REQ.,*299
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH,*299
NO PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
BLACK,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
BLACK
BLACK,*299,DRIVER SIDE
BLACK,DRIVER SIDE
BLACK,WIRELESS DOOR LOCK-WITH,*299,DRIVER SIDE
BLACK,PASSENGER SIDE
BLACK,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
BLACK
BLACK,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
BLACK,DRIVER SIDE
*CR
*CR,DRIVER SIDE
BLACK,PASSENGER SIDE
BLACK,WIRELESS DOOR LOCK-WITH,*299,PASSENEGER SIDE
BLACK,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
BLACK,*299,PASSENEGER SIDE
*CR,(L),PASSENGER SIDE
*CR,PASSENGER SIDE
*CR,DRIVER SIDE
*CR
*CR,PASSENGER SIDE
*CR,(J),PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
PLATED,*299
PLATING
NO PAINT REQ.,*299
NO PAINT REQ.
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH,*299
NO PAINT REQ.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
POWER DOOR LOCK-WITH
POWER DOOR LOCK-WITH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
POWER DOOR LOCK-WITH
69320LOCK ASSY, FRONT DOOR, LH
POWER DOOR LOCK-WITH
POWER DOOR LOCK-WITH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014860022
main90148-60022
90148T0010
main90148-T0010
90148T0015
main90148-T0015
9054104027
main90541-04027
27 parts on this diagram · 1 diagram in section
