672570
›

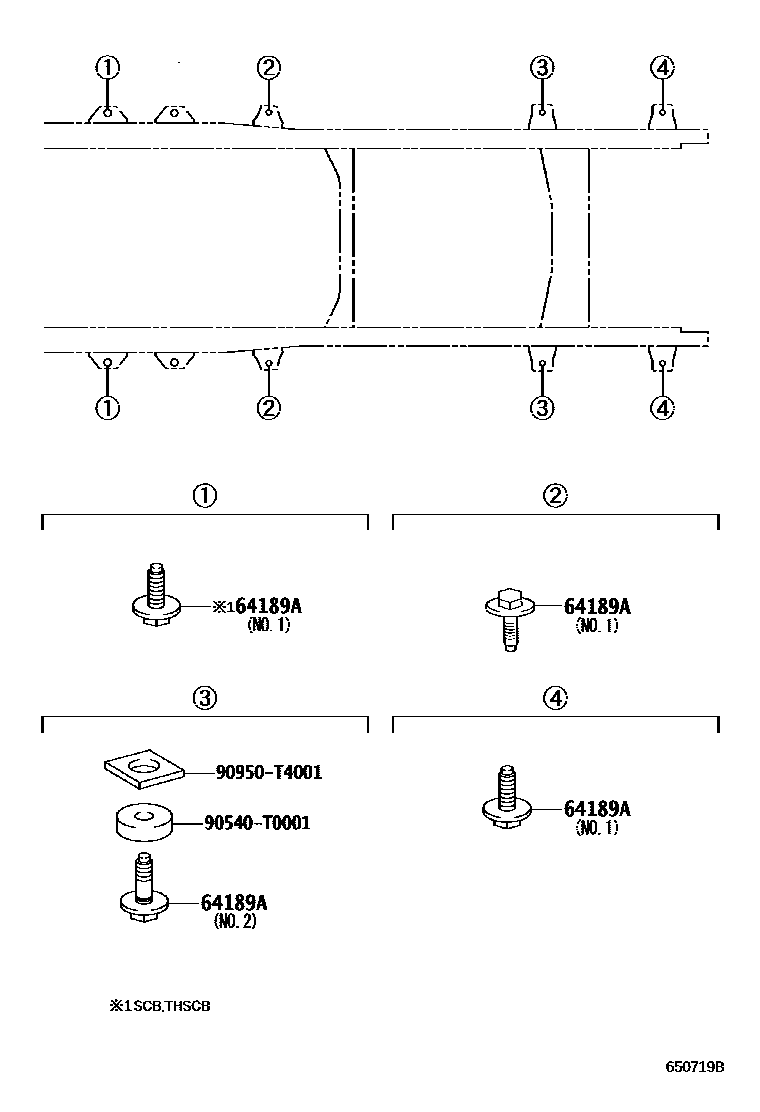

REAR BODY MOUNTING
REAR BODY MOUNTING
64189A
BOLT, REAR BODY MOUNTING
main
64189-0K010
i
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU
200507-201108
NO.1
main
64189-0K020
i
KUN15,2#..(4FC,5F)..CBU
200507-201108
NO.2
90540T0001
main
90540-T0001
90950T4001
main
90950-T4001
3 parts on this diagram · 1 diagram in section
