REAR BODY SIDE PANEL

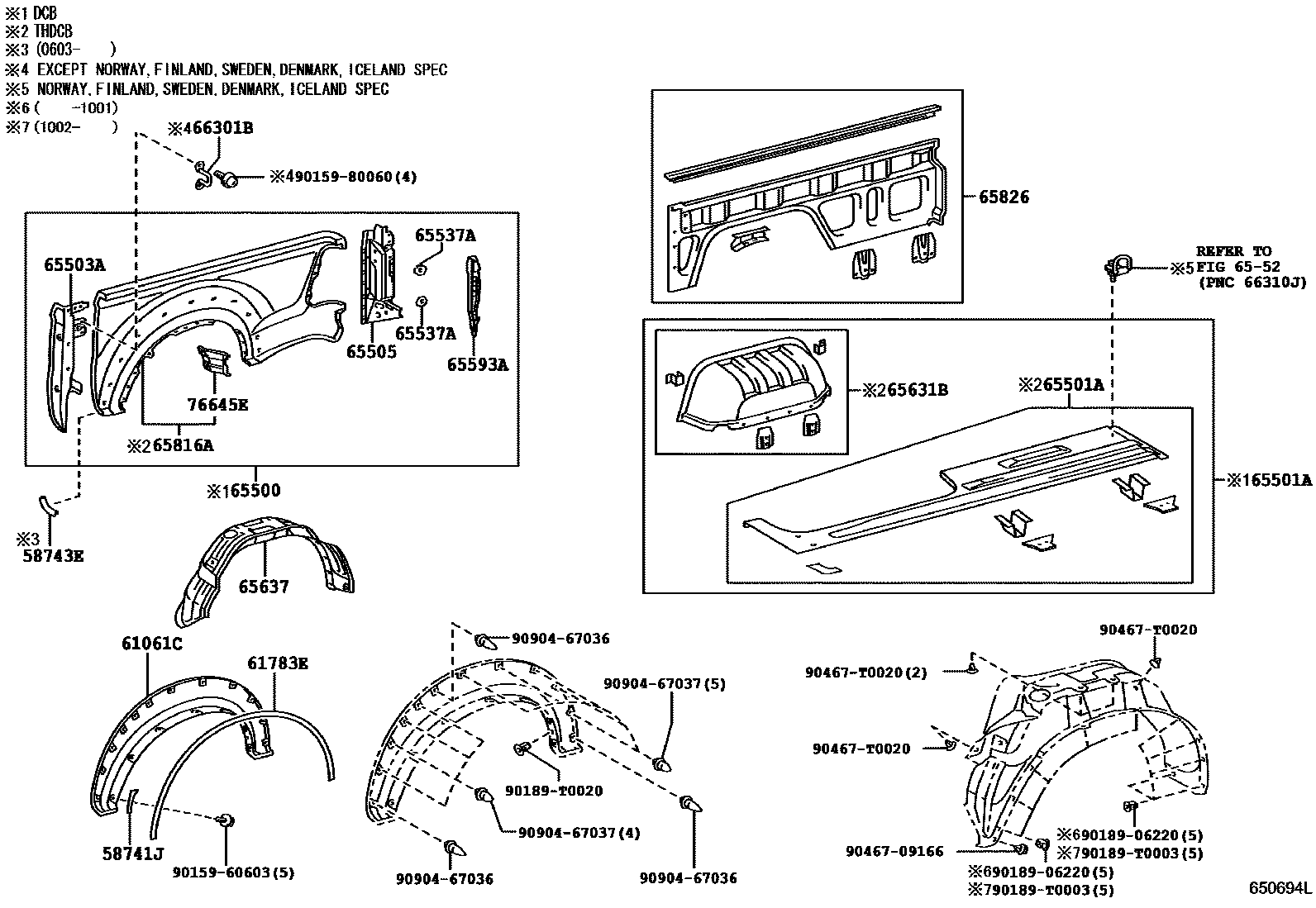

Parts diagram
58741JPROTECTOR, REAR WHEEL EXTENSION, RH
main58741-0K010i200808-201107
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM
main58741-0K010i200507-201107
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
main58741-0K030i200808-201108
STEP & STEP COVER-WITHOUT
main58741-0K030i200507-201108
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
main58741-0K030i200808-201108
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM
58743EPROTECTOR, REAR WHEEL EXTENSION, NO.2 RH
main58743-0K010i200603-201108
main58743-0K020i200603-201108
61061CEXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH
main61681-0K904i200702-201107
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH
main61681-0K904i200702-201107
STEP & STEP COVER-WITH
main61681-0K904i200808-201107
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM&STEP & STEP COVER-WITH
main61681-0K905i200808-201107
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM
main61681-0K905i200507-201107
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH
main61681-0K905i200507-201107
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
main61681-0K905i200808-201107
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM&STEP & STEP COVER-WITH
main61681-0K909i200507-200810
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH
main61681-0K909i200808-201107
STEP & STEP COVER-WITHOUT
main61681-0K909i200507-201108
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
main61681-0K909i200808-201108
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM
61783EPAD, REAR WHEEL OPENING EXTENSION, NO.1
main61783-0K040-B0i200507-200607
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY,040 ,1C0 ,4P9 ,8P1
sub61783-0K040
sub61783-0K041
main61783-0K040-B0i200507-200607
GRAY,040 ,1C0 ,4P9 ,8P1
sub61783-0K040
sub61783-0K041
main61783-0K040-B0i200507-200607
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,GRAY,040 ,1C0,8P1
sub61783-0K040
sub61783-0K041
main61783-0K040-B0i200507-200607
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,GRAY,040 ,1C0,4P9 ,8P1
sub61783-0K040
sub61783-0K041
main61783-0K040-B0i200507-200611
GRAY,040 ,1C0 ,8P1
sub61783-0K040
sub61783-0K041
main61783-0K040-B0i200507-200611
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY,040 ,1C0 ,8P1
sub61783-0K040
sub61783-0K041
main61783-0K040-C0i200507-200607
BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4
sub61783-0K040
sub61783-0K041
main61783-0K040-C0i200507-200607
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4
sub61783-0K040
sub61783-0K041
main61783-0K040-C0i200507-200607
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,BLACK,1E9 ,209 ,3Q2 ,6S3 ,8P1 ,8P4
sub61783-0K040
sub61783-0K041
main61783-0K040-C0i200507-200607
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4
sub61783-0K040
sub61783-0K041
main61783-0K040-C0i200507-200611
BLACK,1E9 ,209 ,3Q2 ,6S3 ,8P1 ,8P4
sub61783-0K040
sub61783-0K041
main61783-0K040-C0i200507-200611
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,1E9 ,209 ,3Q2 ,6S3 ,8P1 ,8P4
sub61783-0K040
sub61783-0K041
main61783-0K041-B0i200702-201108
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,GRAY,040 ,1C0,4P9
main61783-0K041-B0i200608-200810
GRAY,040 ,1C0
main61783-0K041-B0i200608-200810
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY,040 ,1C0
main61783-0K041-B0i200608-200810
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,GRAY,040 ,1C0
main61783-0K041-B0i200702-201108
GRAY,040 ,1C0 ,4P9
main61783-0K041-B0i200702-201108
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY,040 ,1C0 ,4P9
main61783-0K041-B0i200808-201108
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM,GRAY,040 ,1C0 ,4P9
main61783-0K041-B0i200808-201108
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM&STEP & STEP COVER-WITH,GRAY,040 ,1C0 ,4P9
main61783-0K041-C0i200612-200808
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,1E9 ,209 ,3E5 ,3Q2 ,6S3 ,8P4
main61783-0K041-C0i200612-200808
BLACK,1E9 ,209 ,3E5 ,3Q2 ,6S3 ,8P4
main61783-0K041-C0i200808-201108
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM&STEP & STEP COVER-WITH,BLACK,1E9 ,209 ,3E5,6S3 ,8T7
main61783-0K041-C0i200808-201108
BLACK,1E9 ,209 ,3E5 ,6S3 ,8T7
main61783-0K041-C0i200808-201108
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,1E9 ,209 ,3E5 ,6S3 ,8T7
main61783-0K041-C0i200808-201108
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,BLACK,1E9 ,209 ,3E5 ,6S3 ,8T7
main61783-0K041-C0i200808-201108
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM,BLACK,1E9 ,209 ,3E5 ,6S3 ,8T7
main61783-0K041-C0i200608-200810
BLACK,209 ,3E5 ,6S3 ,8P4
main61783-0K041-C0i200608-200810
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,209 ,3E5 ,6S3 ,8P4
main61783-0K041-C0i200608-200810
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,BLACK,209 ,3E5 ,6S3 ,8P4
65500PANEL ASSY, REAR BODY SIDE, RH
main65500-0K902i200507-201108
sub65816-0K020
sub65505-0K010
sub65537-0K010
sub65551-0K010
sub65593-0K020
sub65863-0K010
sub76645-0K010
main65500-0K903i200507-200810
TIRE & DISC WHEEL-205R16C 6JJ
sub65816-0K070
sub65503-0K070
sub65505-0K040
sub65537-0K010
sub65593-0K010
sub76645-0K010
main65500-0K903i200810-201108
sub65816-0K070
sub65503-0K070
sub65505-0K040
sub65537-0K010
sub65593-0K010
sub76645-0K010
main65500-0K904i200507-201108
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
sub65816-0K080
sub65503-0K070
sub65505-0K040
sub65537-0K010
sub65593-0K010
sub76645-0K010
main65500-0K904i200810-201108
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM
sub65816-0K080
sub65503-0K070
sub65505-0K040
sub65537-0K010
sub65593-0K010
sub76645-0K010
65501APANEL SUB-ASSY, REAR BODY SIDE, RH
main65317-0K905i200702-201107
main65317-0K906i200702-201107
main65317-0K915i200507-201107
main65501-0K901i200507-201108
sub65501-0K909
main65501-0K902i200507-201108
sub65501-0K912
65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH
main65503-0K030i200507-201107
main65503-0K070i200507-201108
main65551-0K010i200507-201108
65505POST SUB-ASSY, SIDE PANEL REAR END, RH
main65505-0K010i200507-201108
main65505-0K040i200507-201108
6552
65537APATCH, SIDE PANEL REINFORCEMENT, RH
main65537-0K010i200507-201108
65593APLATE, SIDE PANEL REAR END POST INSIDE, RH
main65593-0K010i200507-201108
main65593-0K020i200507-201108
65631BPANEL, WHEEL HOUSE, RH
main65631-0K903i200507-201107
sub65631-0K907
65637LINER, REAR WHEEL HOUSE, RH
main65637-0K010i200507-201107
main65637-0K060i200710-201108
65816APANEL, REAR BODY SIDE, RH
main65816-0K902i200702-201107
main65816-0K903i200808-201107
NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
main65816-0K903i200808-201107
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM
main65816-0K903i200702-201107
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
main65816-0K903i200808-201107
NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&TIRE & DISC WHEEL-255/70R15C 7J ALMINUM
main65816-0K904i200702-200808
NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&TIRE & DISC WHEEL-205R16C 6JJ
main65816-0K904i200702-200808
TIRE & DISC WHEEL-205R16C 6JJ
main65816-0K904i200808-201107
main65816-0K906i200808-201107
main65816-0K906i200507-200808
TIRE & DISC WHEEL-205R16C 6JJ
main65816-0K906i200507-200808
NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&TIRE & DISC WHEEL-205R16C 6JJ
main65816-0K907i200808-201107
NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&TIRE & DISC WHEEL-255/70R15C 7J ALMINUM
main65816-0K907i200507-201107
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
main65816-0K907i200808-201107
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM
main65816-0K907i200507-201107
NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
65826PANEL, REAR BODY SIDE, INNER RH
main65826-0K903i200507-201107
main65826-0K904i200507-201108
main65826-0K907i200507-201108
66301BHOOK SUB-ASSY, ROPE
main66312-0K010i200507-201108
76645EBRACKET, RR BODY MUDGUARD, RH
main76645-0K010i200507-201108
9015960603
main90159-60603
9015980060
main90159-80060
9018906220
main90189-06220
90189T0003
main90189-T0003
90189T0020
main90189-T0020
9046709166
main90467-09166
90467T0020
main90467-T0020
9090467036
main90904-67036
9090467037
main90904-67037

26 parts on this diagram · 10 diagrams in section
