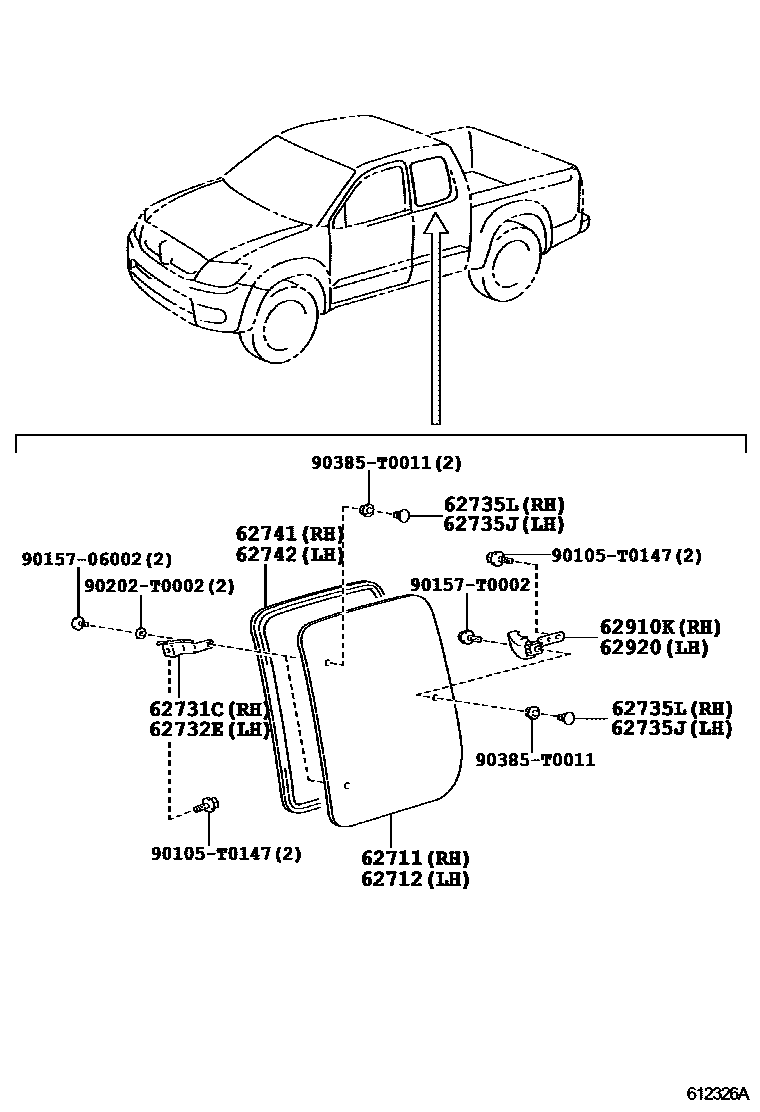

SIDE WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-0K010iKUN15,25..XTR200507-201107

*TT,T=3.5,GREEN

sub62711-0K011

62712GLASS, QUARTER WINDOW, LH

main62712-0K010iKUN15,25..XTR200507-201107

*TT,T=3.5,GREEN

sub62712-0K011

62731CHINGE, QUARTER WINDOW, RH

main62731-0K010iKUN15,25..XTR200507-201107

UPPER

main62731-0K040iKUN15,25..XTR200507-201107

LOWER

62732EHINGE, QUARTER WINDOW, LH

main62732-0K010iKUN15,25..XTR200507-201107

UPPER

main62732-0K040iKUN15,25..XTR200507-201107

LOWER

62735JRETAINER, QUARTER WINDOW HINGE, LH

main62735-35010iKUN15,25..XTR200507-201107

62735LRETAINER, QUARTER WINDOW HINGE, RH

main62735-35010iKUN15,25..XTR200507-201107

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-0K010iKUN15,25..XTR200507-201107

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-0K010iKUN15,25..XTR200507-201107

62910KLOCK ASSY, QUARTER WINDOW, RH

main62910-35021-B2iKUN15,25..XTR200507-201107

GRAY,TRIM1#

sub62910-35021

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-35021-B2iKUN15,25..XTR200507-201107

GRAY,TRIM1#

sub62910-35021

90105T0147

main90105-T0147

9015706002

main90157-06002

90157T0002

main90157-T0002

90202T0002

main90202-T0002

90385T0011

main90385-T0011

15 parts on this diagram · 1 diagram in section
