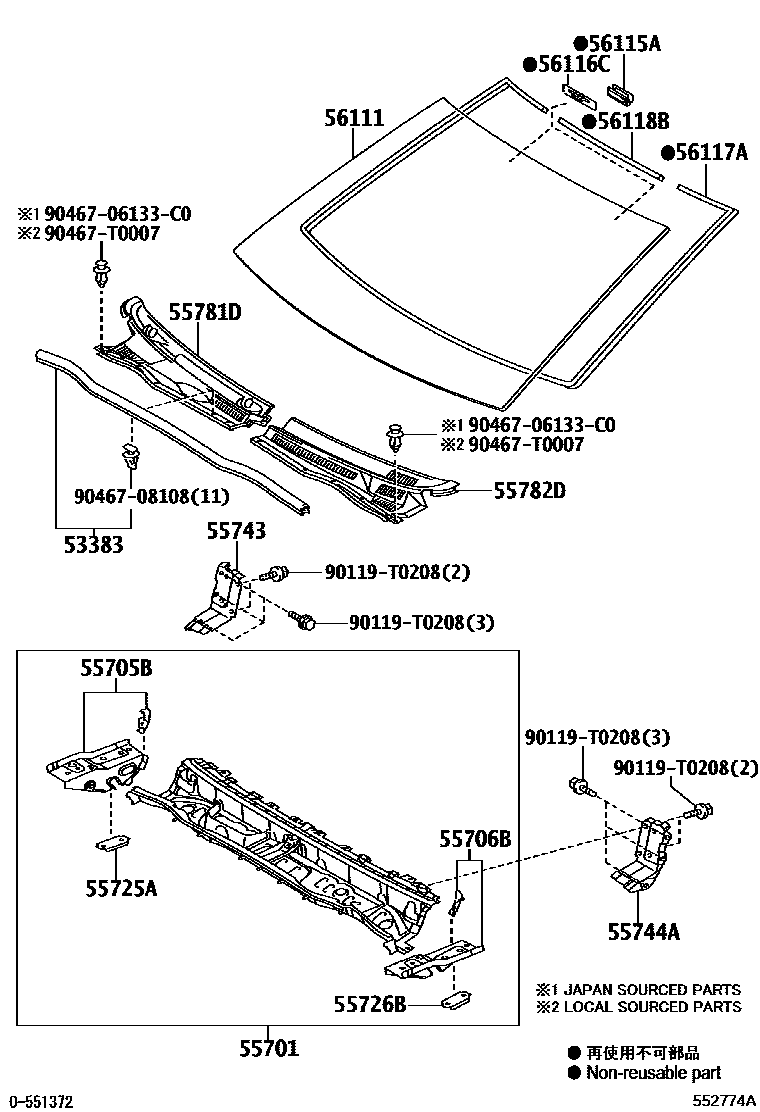

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-0K010iKUN15,2#..4FC,5F200507-201108

55701PANEL SUB-ASSY, COWL

main55700-0K010iKUN15..RHD..DCR;KUN25..RHD..(DCB,SCB)200507-200610

main55700-0K020iKUN25..XTR200507-200610

main55700-0K090iKUN25..RHD..(DCB,SCB)200608-201108

main55700-0K100iKUN2#..LHD..(5F,5FC);KUN15..LHD..(DCB,SCB)200608-201108

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0K050iKUN15,2#..4FC,5F200507-201108

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0K050iKUN15,2#..4FC,5F200507-201108

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-0K010iKUN15,2#..4FC,5F200507-201108

55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55725-0K010iKUN15,2#..4FC,5F200507-201108

55743PANEL, COWL TOP OUTSIDE CORNER, RH

main55743-0K010iKUN15,2#..4FC,5F200507-201108

55744AREINFORCEMENT, PEDAL BRACKET MOUNTING

main55744-0K010iKUN15,2#..4FC,5F200507-201108

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-0K010iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-201107

sub55708-0K290¥7,800

main55708-0K020iKUN15,2#..LHD..(THDCB,THSCB,XTR)200507-201107

sub55708-0K021

main55708-0K040iKUN15,2#..RHD..(DCB,SCB)200507-201108

main55708-0K050iKUN15,2#..LHD..(DCB,SCB)200507-201108

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-0K010iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-201107

main55709-0K020iKUN15,2#..LHD..(THDCB,THSCB,XTR)200507-201107

sub55709-0K021

main55709-0K040iKUN15,2#..RHD..(DCB,SCB)200507-201108

main55709-0K050iKUN15,2#..LHD..(DCB,SCB)200507-201108

56111GLASS, WINDSHIELD

main56101-0K010iKUN15,25..(THDCB,THSCB,XTR)..DLX200507-200712

*LAM,T=4.76,GREEN

sub56101-0K190

main56101-0K020iKUN2#..(THDCB,XTR)..SR¥104,000200507-200712

*LAM,T=4.76,GREEN

sub56101-0K200¥104,000

main56101-0K050iKUN15,25..(DCB,SCB)..DLX200507-201108

*LAM,T=4.96,GREEN

main56101-0K060iKUN15,2#..DCB..SR200507-201108

*LAM,T=4.96,GREEN

main56101-0K190iKUN15,25..(THDCB,THSCB,XTR)..DLX200801-201107

*LAM,T=4.76,GREEN

sub56101-0K192

main56101-0K200iKUN2#..(THDCB,XTR)..SR¥104,000200801-201107

*LAM,T=4.76,GREEN

sub56101-0K201

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-02020iKUN15,2#..4FC,5F200507-201108

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-02020iKUN15,2#..4FC,5F200507-201108

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0K010iKUN15,2#..4FC,5F¥920200507-201108

L=3089

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-0K010iKUN15,2#..4FC,5F¥410200507-201108

L=706

90119T0208

main90119-T0208

9046706133C0

main90467-06133C0

9046708108

main90467-08108¥70

90467T0007

main90467-T0007¥70

19 parts on this diagram · 2 diagrams in section
