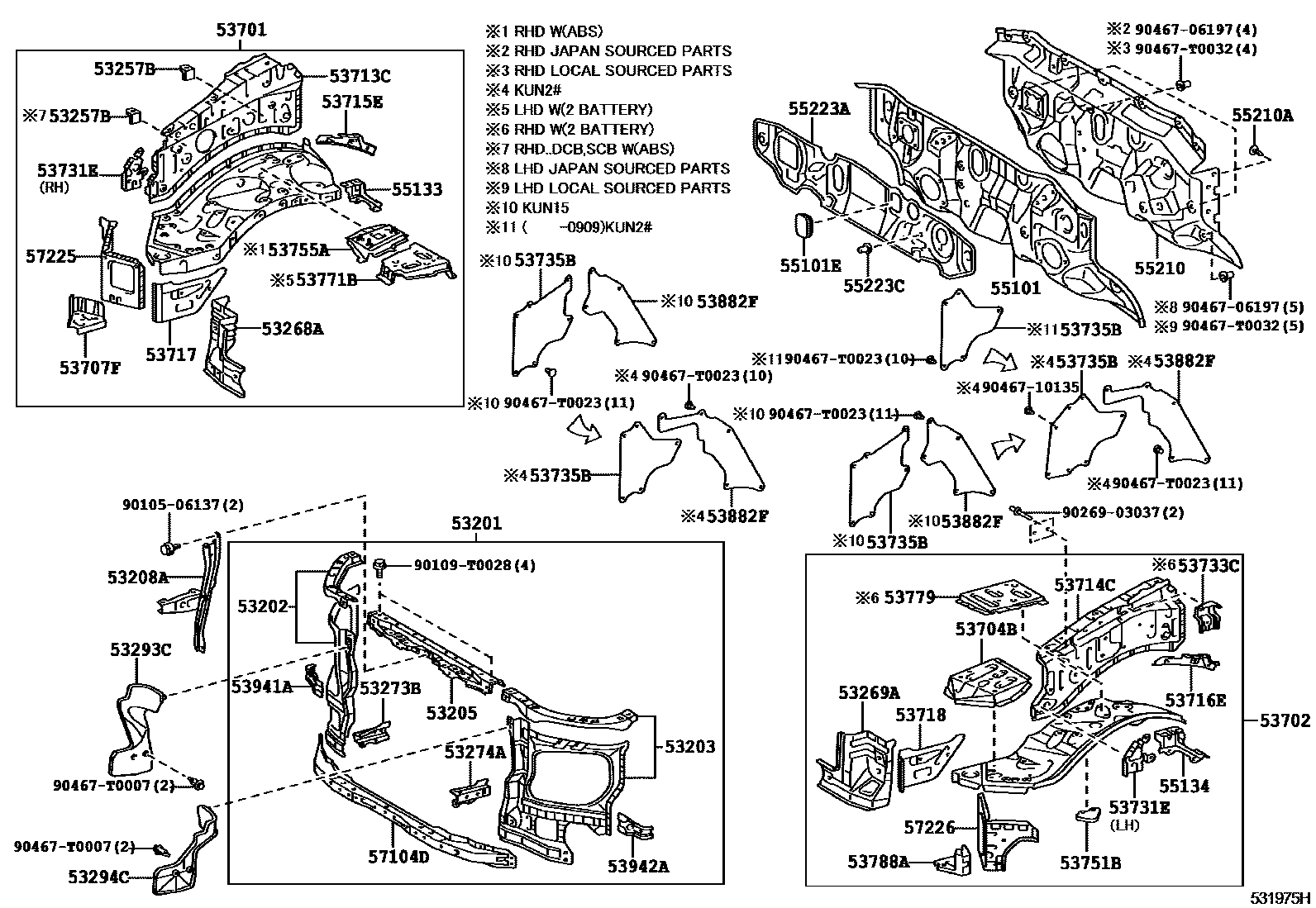

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0K010iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200507-201108

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0K010iKUN15,2#..4FC,5F200507-201108

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0K010iKUN15,2#..4FC,5F200507-201108

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0K010iKUN15,2#..4FC,5F200507-201108

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0K010iKUN15,2#..4FC,5F200507-201108

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iKUN15,25..RHD..(DCB,SCB)..DLX..HDCR200507-200710

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53257-35030iKUN15..LHD;KUN15..RHD..DCR;KUN2#..LHD..(DCB,SCB);KUN15..RHD..(THSCB,XTR)..HDCR;KUN2#..(THDCB,THSCB,XTR)..(4FC,5F)200507-201108

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-0K010iKUN15,2#..4FC,5F200507-201108

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-0K010iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200507-201108

53273BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, RH

main53273-0K010iKUN15,2#..4FC,5F200507-201108

53274AREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-0K010iKUN15,2#..4FC,5F200507-201108

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-0K010iKUN15,2#200507-200710

sub53293-0K011

main53293-0K011iKUN15,2#..4FC,5F200711-201108

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-0K010iKUN15,2#200507-200710

sub53294-0K011

main53294-0K011iKUN15,2#..4FC,5F200711-201108

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0K011iKUN15,2#..RHD..(THDCB,THSCB,XTR)200702-201105

sub53701-0K012

main53701-0K012iKUN15,2#..RHD..(THDCB,THSCB,XTR)201106-201107

main53701-0K030iKUN15;KUN25..LHD;KUN25..RHD..DLX200507-200512

sub53701-0K031

main53701-0K031iKUN15,25..RHD..(THDCB,THSCB,XTR)..DLX..HDCR200601-201010

sub53701-0K190

main53701-0K180iKUN25..RHD..SR200507-200512

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

sub53701-0K181

main53701-0K181iKUN15,25..RHD..(DCB,SCB)..DLX200601-201107

sub53701-0K182

main53701-0K190iKUN15..LHD..(THDCB,THSCB,XTR)201010-201108

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0K010iKUN15..DCR;KUN15,25..RHD..HDCR;KUN26..RHD..(4FC,5F)200507-200810

sub53702-0K011

main53702-0K010iKUN15,2#..RHD..(THDCB,THSCB)200808-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

sub53702-0K011

main53702-0K020iKUN25..XTR..SR;KUN15,26..LHD..(4FC,5F)..SR200507-201108

sub53702-0K021

sub44507-0K011

sub44590-0K011

sub44590-0K021

sub90179-08249

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-0K010iKUN15,2#..4FC,5F200507-201108

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-0K010iKUN15,2#..4FC,5F200507-201108

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-0K010iKUN15,2#..4FC,5F200507-201108

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-0K010iKUN15,2#..4FC,5F200507-201108

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K030iKUN15,2#..4FC,5F200507-201108

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K030iKUN15,2#..4FC,5F200507-201108

53717PLATE, FENDER APRON, RH

main53717-0K010iKUN15,2#..4FC,5F200507-201108

53718PLATE, FENDER APRON, LH

main53718-0K010iKUN15,2#..4FC,5F200507-201108

53731EPATCH, FRONT FENDER APRON

main53731-0K010iKUN15,2#..4FC,5F200507-201108

RH

main53732-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

LH

53733CPATCH, FRONT FENDER APRON

53735BSEAL, FRONT FENDER APRON, UPPER

main53735-0K010iKUN15..THDCB,THSCB,XTR200507-201108

main53735-0K020iKUN2#..4FC,5F200507-200909

main53735-0K020iKUN2#..RHD..(THDCB,THSCB)200909-201108

LH

main53735-0K050iKUN2#..RHD..(THDCB,THSCB)200909-201108

RH

53751BBRACKET, CHARCOAL CANISTER MOUNTING

main53751-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

53755AREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1

main53755-0K010iKUN2#..RHD..(4FC,5F)..SR200507-201108

53771BSUPPORT, BATTERY CARRIER, RH

53779SEAT, BATTERY CARRIER SUPPORT

main53779-0K010

main53779-0K011

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53708-0K010iKUN15,2#..4FC,5F200507-201108

53882FSEAL, FRONT FENDER

main53885-0K010iKUN15..THDCB,THSCB,XTR200507-201108

main53885-0K020iKUN2#..4FC,5F200507-201108

53941ABRACKET, FRONT END PANEL, NO.1 RH

main53941-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

53942ABRACKET, FRONT END PANEL, NO.1 LH

main53941-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

55101PANEL SUB-ASSY, DASH

main55101-0K010iKUN15,2#..RHD..5F200507-201108

main55101-0K020iKUN26..RHD..DCB..5FC200610-201108

main55101-0K030iKUN15..LHD..(THDCB,THSCB,XTR)200507-201108

main55101-0K040iKUN15,26..LHD..4FC200507-201108

55101EGROMMET, DASH PANEL, NO.2

main87128-0K010iKUN25..RHD;KUN15..RHD..XTR;KUN15..LHD..XTR..HDCR;KUN25..LHD..(DCB,SCB,THDCB,THSCB);KUN15,26..(DCB,SCB,THDCB,THSCB)..(4FC,5F)200507-201108

main87128-0K010iKUN15..LHD..(THDCB,THSCB,XTR)200808-201107

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-0K010iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200507-201108

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-0K010iKUN15,2#..4FC,5F200507-201108

55210INSULATOR ASSY, DASH PANEL

main55210-0K010iKUN15..RHD..XTR200507-200511

sub55210-0K011

main55210-0K011iKUN15..RHD..XTR200512-200608

main55210-0K020iKUN15,25..LHD..XTR200507-200511

sub55210-0K021

main55210-0K021iKUN15,25..LHD..XTR200512-200608

main55210-0K030iKUN15,25..RHD..(DCB,SCB)200507-200610

main55210-0K040iKUN15,25..LHD..(DCB,SCB)200507-200610

main55210-0K080iKUN15,2#..RHD..(THDCB,THSCB)200608-201108

sub55210-0K081

main55210-0K090iKUN26..LHD..(4FC,5F);KUN15..LHD..DLX..HDCR;KUN25..LHD..(THDCB,THSCB,XTR)200608-201108

sub55210-0K091

55210ACLIP

main90467-T0004-A0iKUN15,25..DCB..SR200507-200610

IVORY,TRIM0#

main90467-T0004-B0iKUN15,2#..4FC,5F200507-201108

LT.GRAY,TRIM1#

55223AINSULATOR, DASH PANEL, OUTER

main55223-0K010iKUN15,2#..RHD..(DCB,SCB,XTR)..(5F,5FC)200507-201108

main55223-0K020iKUN15..LHD..(THDCB,THSCB,XTR)200507-201108

55223CCLIP

main90467-06197iKUN15,2#..RHD..(4FC,5F)200607-201108

(J)

main90467-06197iKUN15,25..RHD200507-200607

main90467-T0032iKUN15,2#..RHD..(THDCB,THSCB)200607-201108

(L)

57104DMEMBER SUB-ASSY, FRONT CROSS

main57161-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200708-201108

main57226-0K010iKUN15,25..RHD200507-200810

COLD AREA SPEC

9010506137

main90105-06137

90109T0028

main90109-T0028

9026903037

main90269-03037

9046706197

main90467-06197

9046710135

main90467-10135

90467T0007

main90467-T0007

90467T0023

main90467-T0023

90467T0032

main90467-T0032

52 parts on this diagram · 1 diagram in section
