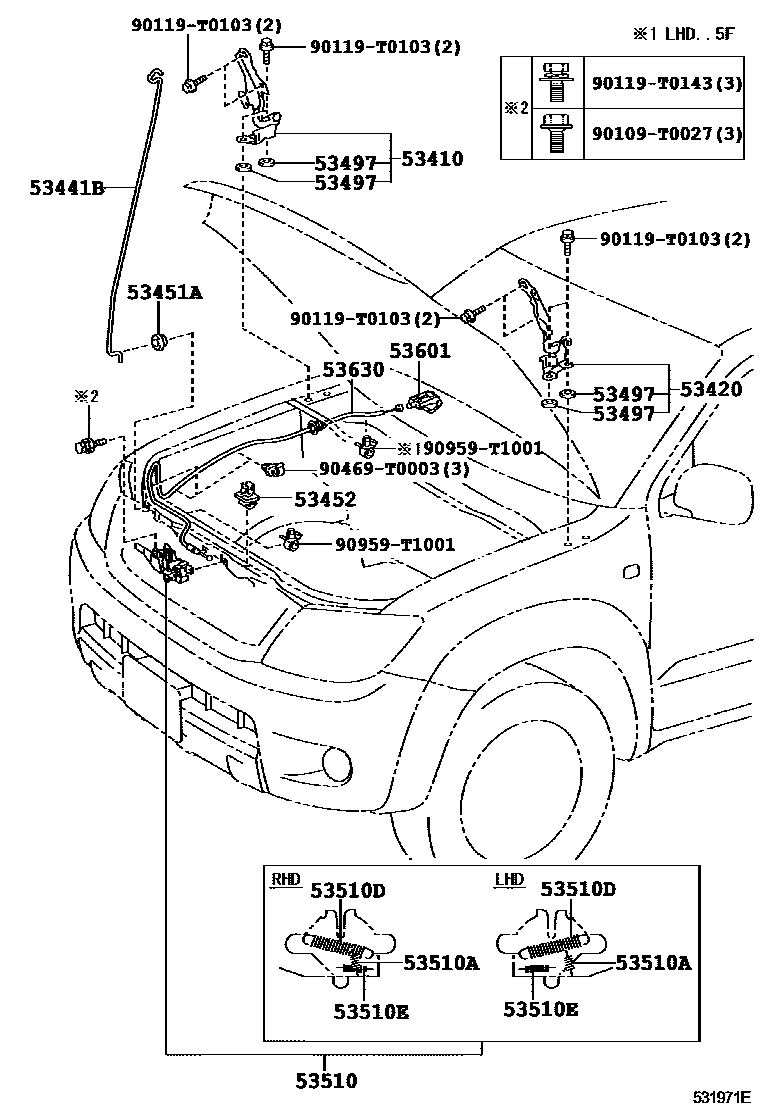

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0K020iKUN15,2#..DCB,SCB200507-201108

main53410-0K100iKUN15,2#..THDCB,THSCB,XTR200507-201107

53420HINGE ASSY, HOOD, LH

main53420-0K020iKUN15,2#..DCB,SCB200507-201108

main53420-0K100iKUN15,2#..THDCB,THSCB,XTR200507-201107

53441BSUPPORT, HOOD

main53441-0K010iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200507-201108

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-T0006iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200507-201108

53452HOLDER, HOOD STAY

main53452-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

53497PAD, HOOD HINGE, NO.1

main53497-0K020iKUN15,2#..DCB,SCB200507-201108

T=1.0

main53497-0K070iKUN15,2#..DCB,SCB200507-201108

T=2.0

main53497-0K100iKUN15,2#..DCB,SCB200507-201108

T=0.5

main53497-20070iKUN15,2#..THDCB,THSCB,XTR200507-201107

T=2.0

main53497-42010iKUN15,2#..THDCB,THSCB,XTR200507-201107

T=0.5

53510LOCK ASSY, HOOD

main53510-0K010iKUN15,2#..RHD..(DCB,SCB)200507-201108

main53510-0K020iKUN15,2#..LHD..(DCB,SCB)200507-201108

main53510-0K030iKUN15,2#..RHD..(DCB,SCB)200507-200903

main53510-0K040iKUN15,2#..LHD..(DCB,SCB)200507-200903

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-12063iKUN15,2#..DCB,SCB200810-201108

WD=1.2,CW=8.5,FOR SOUTH AFRICA

main90506-12063iKUN15,2#..DCB,SCB200507-200810

WD=1.2,CW=8.5

main90506-T0004iKUN15,2#..THDCB,THSCB,XTR200507-201107

WD=1.2,CW=8.5

main90506-T0004iKUN15,2#..DCB,SCB200903-201108

WD=1.2,CW=8.5,EXCEPT SOUTH AFRICA

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-T0003iKUN15,2#..4FC,5F200507-201107

WD=1.8,CW=13

sub90506-18067

main90506-T0003iKUN15,2#..DCB,SCB200810-201108

WD=1.8,CW=13,FOR SOUTH AFRICA

sub90506-18067

main90506-T0003iKUN15,2#..DCB,SCB200903-201108

WD=1.8,CW=13,EXCEPT SOUTH AFRICA

sub90506-18067

53510ESPRING, TENSION(FOR HOOD LOCK)

main90080-50412iKUN15,2#..DCB,SCB200810-201108

WD=0.9,CW=21,FOR SOUTH AFRICA

main90080-50412iKUN15,2#..DCB,SCB200507-200810

WD=0.9,CW=21

main90506-T0005iKUN15,2#..THDCB,THSCB,XTR200507-201107

WD=0.9,CW=21

main90506-T0005iKUN15,2#..DCB,SCB200903-201108

WD=0.9,CW=21,EXCEPT SOUTH AFRICA

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A0iKUN25..(DCB,XTR)..SR200507-200810

IVORY,TRIM0#

sub53601-52010

main53601-52010-B7iKUN15,25;KUN26..LHD..DCB..5F;KUN26..RHD..(4FC,5F);KUN26..LHD..THDCB..(4FC,5F)200507-201108

GRAY,TRIM1#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0K010iKUN15,2#..THDCB,THSCB,XTR200507-201107

main53630-0K110iKUN15,2#..DCB,SCB201103-201108

sub53630-0K010

90109T0027

main90109-T0027

90119T0103

main90119-T0103

90119T0143

main90119-T0143

90469T0003

main90469-T0003

90959T1001

main90959-T1001

17 parts on this diagram · 1 diagram in section
