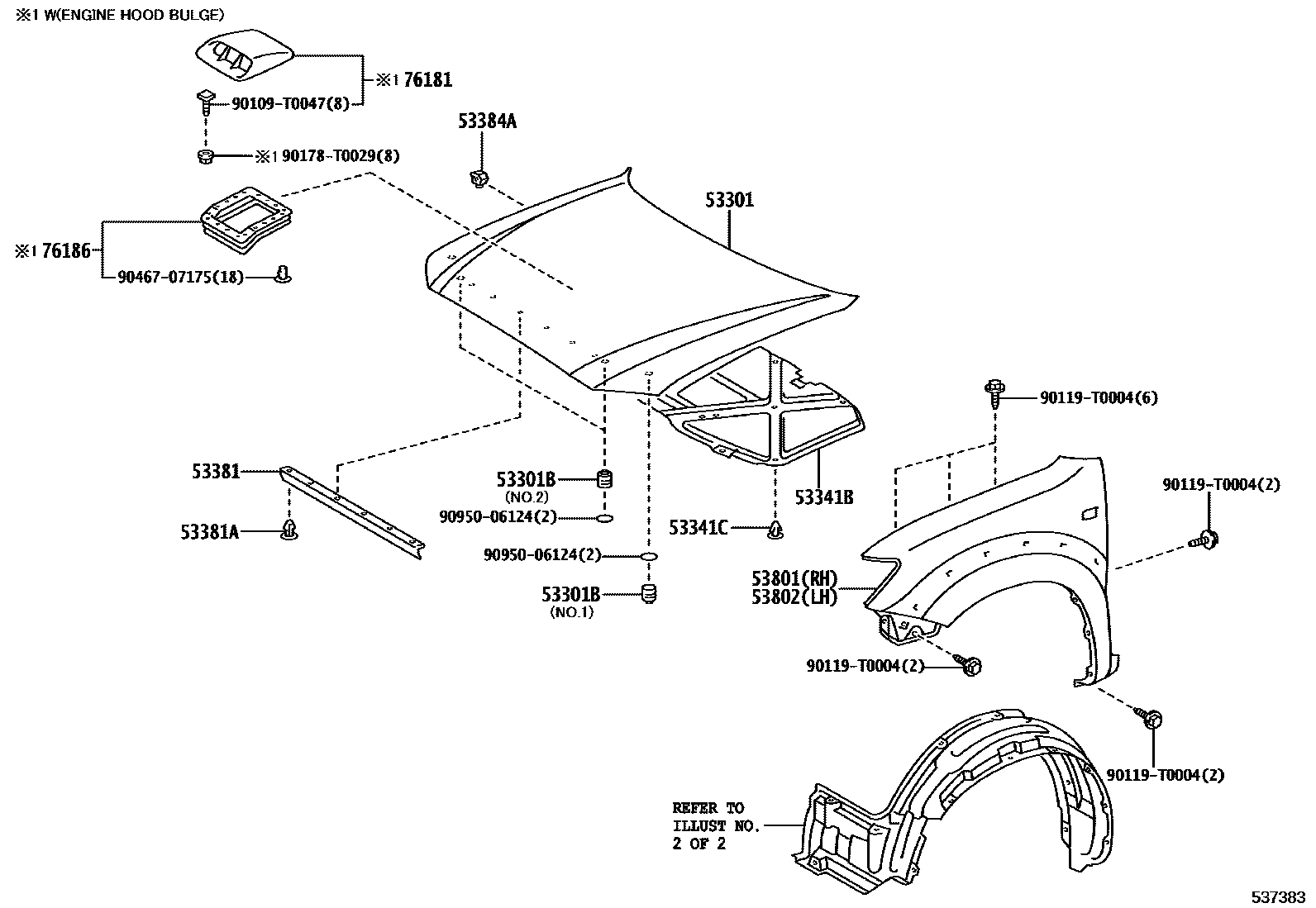

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1FENDER LINER

53301HOOD SUB-ASSY

main53301-0K010iKUN15..XTR..DCR;KUN15,25..DCB,SCB200507-200610

sub53301-0K011

main53301-0K020iKUN26;KUN25..XTR;KUN15..DLX..HDCR200608-200703

sub53301-0K021

main53301-0K021iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200703-201108

53301BCUSHION, HOOD BUMPER

main90541-15019iKUN15,2#..4FC,5F200701-201108

(J),NO.1

main90541-15019iKUN15,2#200507-200701

NO.1

main90541-15024iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

NO.2

main90541-T0006iKUN15,2#..4FC,5F200701-201108

(L),NO.1

53341BINSULATOR, HOOD

main53341-0K010iKUN15,25..XTR200507-200608

main53341-0K020iKUN15,2#..DCB,SCB200608-201108

main53341-0K030iKUN15,2#..DCB,SCB200610-200912

main53341-0K040iKUN15,25..DCB,SCB200507-200610

53341CCLIP(FOR HOOD INSULATOR)

main90467-T0014iKUN25..XTR200507-201108

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-T0013iKUN15,2#..4FC,5F200507-201108

53384ABUMPER, FENDER TO HOOD

main53384-0K010iKUN15,2#..4FC,5F200507-201108

53801FENDER SUB-ASSY, FRONT RH

main53811-0K010iKUN15..DCB,SCB;KUN25..(DCB,SCB,XTR)..DLX;KUN25..LHD..(THDCB,THSCB)..DLX200808-201108

main53811-0K010iKUN15;KUN25..DLX200507-200810

TIRE & DISC WHEEL-205R16C 6JJ

main53811-0K020iKUN25..(DCB,SCB,XTR)..DLX;KUN25..LHD..(THDCB,THSCB)..DLX200507-201108

TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)

main53811-0K020iKUN2#..RHD..THDCB..SR200808-201108

TIRE & DISC WHEEL-255/70R15C 7J ALMINUM

53802FENDER SUB-ASSY, FRONT LH

main53812-0K010iKUN25..SR200507-200810

TIRE & DISC WHEEL-205R16C 6JJ

main53812-0K010iKUN15..DCB,SCB;KUN25..(DCB,SCB,XTR)..DLX;KUN25..LHD..(THDCB,THSCB)..DLX200808-201108

main53812-0K020iKUN2#..RHD..THDCB..SR200808-201108

TIRE & DISC WHEEL-255/70R15C 7J ALMINUM

main53812-0K020iKUN25..RHD..(THDCB,THSCB)..DLX200507-201108

TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)

76181BULGE, HOOD

main76180-0K905iKUN15,2#..THDCB,THSCB,XTR200608-201107

main76180-0K906iKUN15,2#..DCB,SCB200610-201108

76186SEAL, HOOD AIR INTAKE

main76186-0K010iKUN26..4FC,5F;KUN15..DLX..HDCR;KUN25..THDCB,THSCB,XTR200608-201108

90109T0047

main90109-T0047

90119T0004

main90119-T0004

90178T0029

main90178-T0029

9046707175

main90467-07175

9095006124

main90950-06124

16 parts on this diagram · 4 diagrams in section
