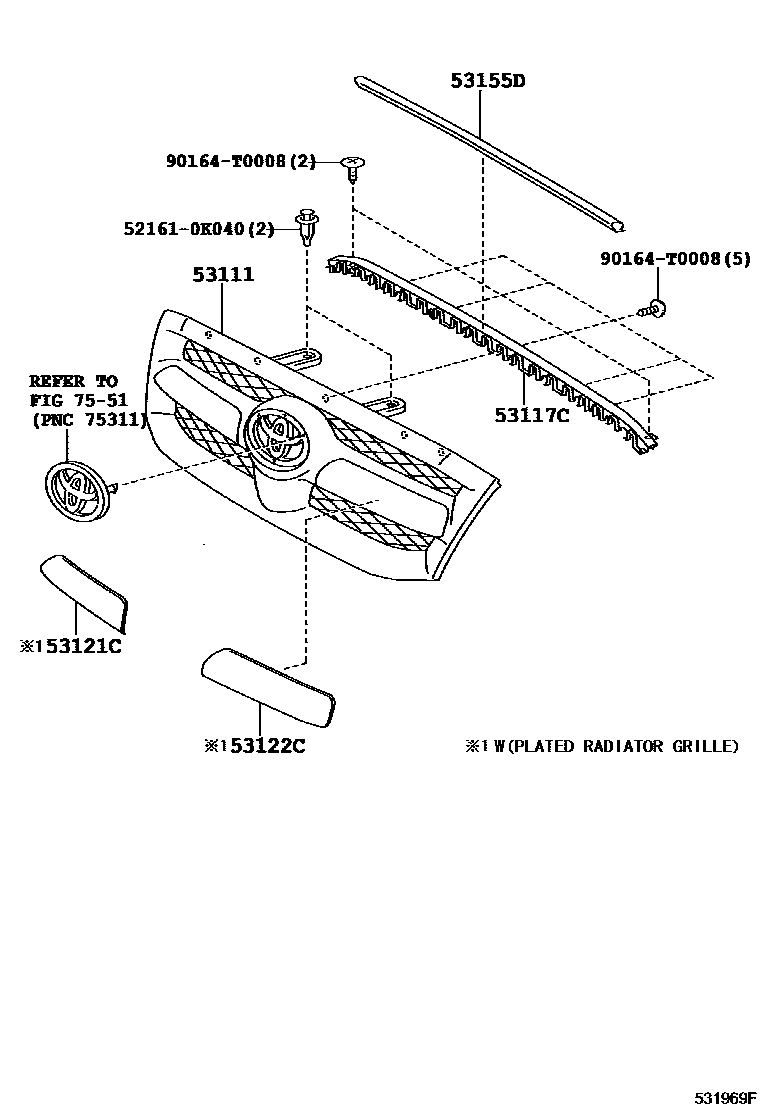

RADIATOR GRILLE

0001 1 0003 1

53111GRILLE, RADIATOR

main53111-0K010iKUN15,2#..THDCB,THSCB,XTR200507-200808

NO PAINT REQ.

main53111-0K090iKUN15,2#..DCB,SCB200507-200810

NO PAINT REQ.

main53111-0K200iKUN15,2#..THDCB,THSCB,XTR200808-201107

NO PAINT REQ.

main53111-0K210iKUN15,2#..DCB,SCB200810-201108

NO PAINT REQ.

53117CRETAINER, RADIATOR GRILLE, NO.1

main53117-0K010iKUN15,2#..THDCB,THSCB,XTR200507-200808

main53117-0K020iKUN15,2#..DCB,SCB200507-200810

53121CPLATE, RADIATOR GRILLE FINISH, RH

main53121-0K010iKUN15,2#..(4FC,5F)..SR200507-200810

53122CPLATE, RADIATOR GRILLE FINISH, LH

main53122-0K010iKUN15,2#..(4FC,5F)..SR200507-200810

53155DSEAL, RADIATOR GRILLE, NO.1

main53397-0K030iKUN15,2#..4FC,5F200507-201108

7551

521610K040CUSHION, REAR BUMPER GUARD, NO.1

main52161-0K040

90164T0008

main90164-T0008

8 parts on this diagram · 2 diagrams in section
