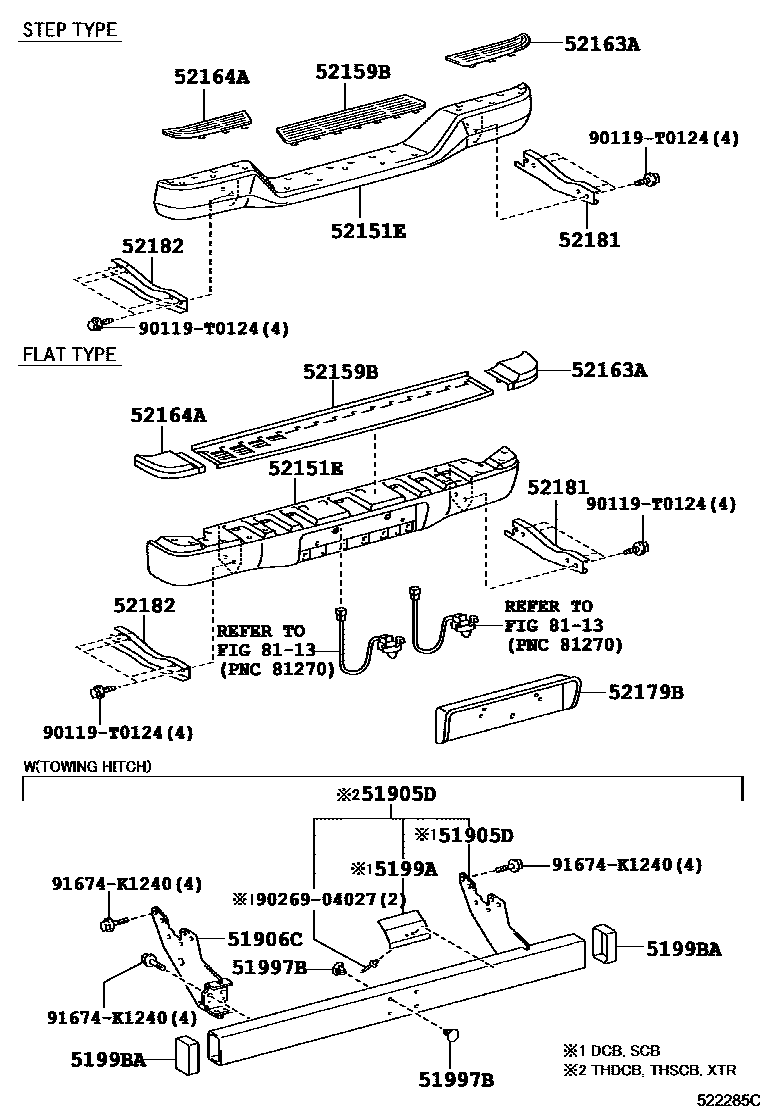

REAR BUMPER & BUMPER STAY

51905DBRACKET SUB-ASSY, RECEIVER HITCH, RH

main51905-0K020iKUN2#..(THDCB,THSCB,XTR)..CBU201008-201107

main51905-0K901iKUN2#..(DCB,SCB)..CBU¥77,600201010-201108

51906CBRACKET SUB-ASSY, RECEIVER HITCH, LH

main51906-0K020iKUN2#..(DCB,SCB)..CBU201008

51997BCAP, RECEIVER HITCH

main51997-0K020iKUN2#..(THDCB,THSCB,XTR)..CBU201008

5199AINSULATOR, HITCH CROSS HEAT

main5199A-0K010iKUN2#..(DCB,SCB)..CBU201010-201108

5199BACAP, REAR UNDERRUN PROTECTION

main5199B-0K010iKUN2#..(DCB,SCB)..CBU201008

52151EBAR, REAR BUMPER

main52105-04040iKUN25..(DCB,SCB,XTR)..DLX..CBU;KUN25..LHD..(THDCB,THSCB)..DLX..CBU200808-201108

NO PAINT REQ.,REAR BUMPER-STEEL STEP PAINT

main52105-04040iKUN25..(DCB,SCB,XTR)..DLX..CBU;KUN25..LHD..(THDCB,THSCB)..DLX..CBU200808-201108

NO PAINT REQ.

main52105-0K010iKUN15..DLX..CBU200507-200810

NO PAINT REQ.,REAR BUMPER-STEEL, FLAT TYPE, PAINTED

main52105-0K010iKUN15..DLX..CBU200507-200810

NO PAINT REQ.

main52105-0K020iKUN15,26..SR200507-200611

PLATED

sub52105-0K021¥44,200

main52105-0K020iKUN25..CBU200507-200611

PLATED,REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED

sub52105-0K021¥44,200

main52105-0K021iKUN25..(DCB,SCB)..CBU¥44,200200612-200701

PLATED,REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED

main52105-0K021iKUN26¥44,200200612-200701

PLATED

main52105-0K061iKUN26..4FC,5F¥96,900200701-201108

PLATED

main52105-0K061iKUN26..RHD..THDCB¥96,900200808-201108

PLATED,REAR BUMPER-STEEL FLAT PLATING

main52105-0K061iKUN26..4FC,5F¥96,900200701-200810

PLATED,REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED

52159BPLATE, REAR BUMPER

main52159-04010iKUN15..(DCB,SCB)..CBU200808-201108

REAR BUMPER-STEEL STEP PAINT

main52159-0K010iKUN26..LHD..THDCB;KUN26..DCB..(5F,5FC)¥11,100200808-201108

REAR BUMPER-STEEL FLAT PLATING

main52159-0K010iKUN15,26..(4FC,5F)..CBU¥11,100200507-200810

REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED

main52159-0K010iKUN15,26..(4FC,5F)..CBU¥11,100200507-200810

REAR BUMPER-STEEL, FLAT TYPE, PAINTED

52163APLATE, REAR BUMPER, RH

main52163-04010iKUN15..(DCB,SCB)..CBU200808-201108

REAR BUMPER-STEEL STEP PAINT

main52163-0K010iKUN25..(SCB,THSCB,XTR)..DLX..CBU;KUN25..LHD..(DCB,THDCB)..DLX..CBU¥2,880200507-200810

REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED

main52163-0K010iKUN25..(SCB,THSCB,XTR)..DLX..CBU;KUN25..LHD..(DCB,THDCB)..DLX..CBU¥2,880200507-200810

REAR BUMPER-STEEL, FLAT TYPE, PAINTED

main52163-0K010iKUN26..RHD..THDCB¥2,880200808-201108

REAR BUMPER-STEEL FLAT PLATING

52164APLATE, REAR BUMPER, LH

main52164-04010iKUN25..(DCB,SCB,XTR)..DLX..CBU;KUN25..LHD..(THDCB,THSCB)..DLX..CBU200808-201108

REAR BUMPER-STEEL STEP PAINT

main52164-0K010iKUN25..CBU¥2,880200507-200810

REAR BUMPER-STEEL, FLAT TYPE, PAINTED

main52164-0K010iKUN15,26..(4FC,5F)..CBU¥2,880200507-200810

REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED

main52164-0K010iKUN26..RHD..THDCB¥2,880200808-201108

REAR BUMPER-STEEL FLAT PLATING

52179BPLATE, REAR BUMPER BAR

main52179-0K010iKUN25..CBU¥5,400200507-200810

REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED

main52179-0K010iKUN25..CBU¥5,400200507-200810

REAR BUMPER-STEEL, FLAT TYPE, PAINTED

main52179-0K010iKUN26..RHD..THDCB¥5,400200808-201108

REAR BUMPER-STEEL FLAT PLATING

52181ARM, REAR BUMPER, RH

main52181-0K010iKUN15,26..(4FC,5F)..CBU¥4,540200507-200810

REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED

main52181-0K010iKUN15,26..(4FC,5F)..CBU¥4,540200507-200810

REAR BUMPER-STEEL, FLAT TYPE, PAINTED

main52181-0K010iKUN26..DCB..(5F,5FC)¥4,540200808-201010

REAR BUMPER-STEEL FLAT PLATING

main52181-0K020iKUN15..(DCB,SCB)..CBU200808-201108

main52181-0K040iKUN26..LHD..THDCB¥5,700201008-201108

REAR BUMPER-STEEL FLAT PAINT

main52181-0K040iKUN26..RHD..THDCB¥5,700201008-201108

REAR BUMPER-STEEL FLAT PLATING

52182ARM, REAR BUMPER, LH

main52182-0K010iKUN15,26..(4FC,5F)..CBU¥4,540200507-200810

REAR BUMPER-STEEL, FLAT TYPE, PAINTED

main52182-0K010iKUN15,26..(4FC,5F)..CBU¥4,540200507-200810

REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED

main52182-0K010iKUN26..THDCB¥4,540200808-201010

REAR BUMPER-STEEL FLAT PLATING

main52182-0K020iKUN15..(DCB,SCB)..CBU200808-201108

main52182-0K040iKUN25..RHD..THDCB..SR¥5,700201008-201108

REAR BUMPER-STEEL FLAT PLATING

main52182-0K040iKUN26..LHD..THDCB¥5,700201008-201108

REAR BUMPER-STEEL FLAT PAINT

8113

90119T0124

main90119-T0124¥190

9026904027

main90269-04027¥120

91674K1240

main91674-K1240¥190

16 parts on this diagram · 1 diagram in section
