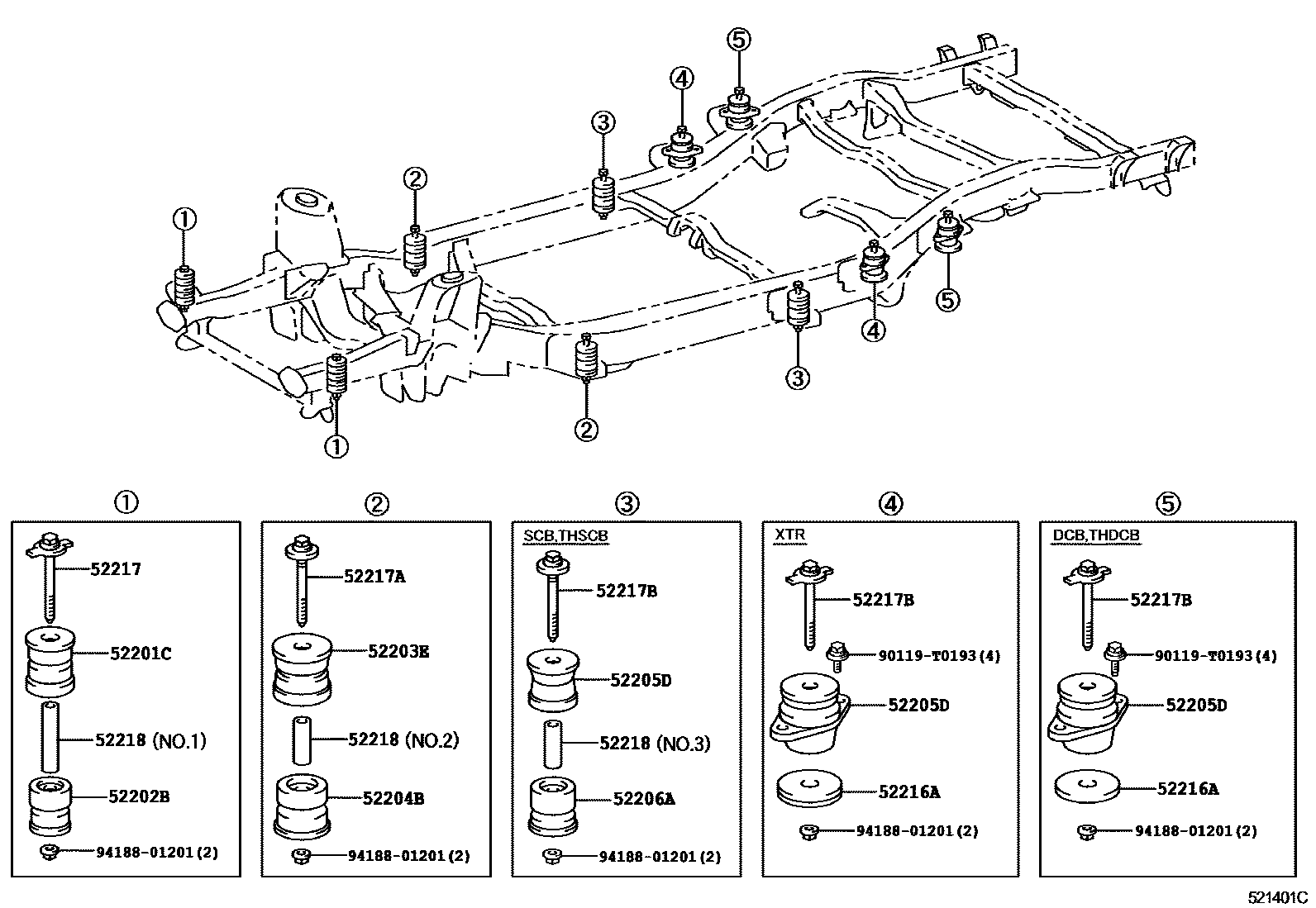

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K010iKUN15,2#..4FC,5F200507-201108

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K010iKUN15,2#..4FC,5F200507-201108

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K010iKUN15,2#..4FC,5F200507-201108

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K010iKUN15..THSCB;KUN25..RHD..THSCB200507-201108

main52205-0K030iKUN15,25..XTR200507-201107

main52205-0K040iKUN2#..LHD..THDCB;KUN15,2#..DCB..(5F,5FC)200507-201108

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K010iKUN15,25..SCB,THSCB200507-201108

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0K010iKUN15..THDCB;KUN2#..RHD..THDCB200507-201108

main52216-0K030iKUN15,25..XTR200507-201107

52217BOLT, BODY MOUNTING

main52217-0K010iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200507-201108

52217ABOLT, BODY MOUNTING

main52217-0K020iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200507-201108

52217BBOLT, BODY MOUNTING

main52217-0K020iKUN15..THDCB,THSCB;KUN2#..RHD..(THDCB,THSCB)200507-201108

main52217-0K030iKUN15,25..XTR200507-200801

sub52217-0K031

main52217-0K031iKUN15,25..XTR200801-201107

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

NO.1

main52219-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

NO.2

main52219-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

NO.3

90119T0193

main90119-T0193

9418801201

main94188-01201

13 parts on this diagram · 1 diagram in section
