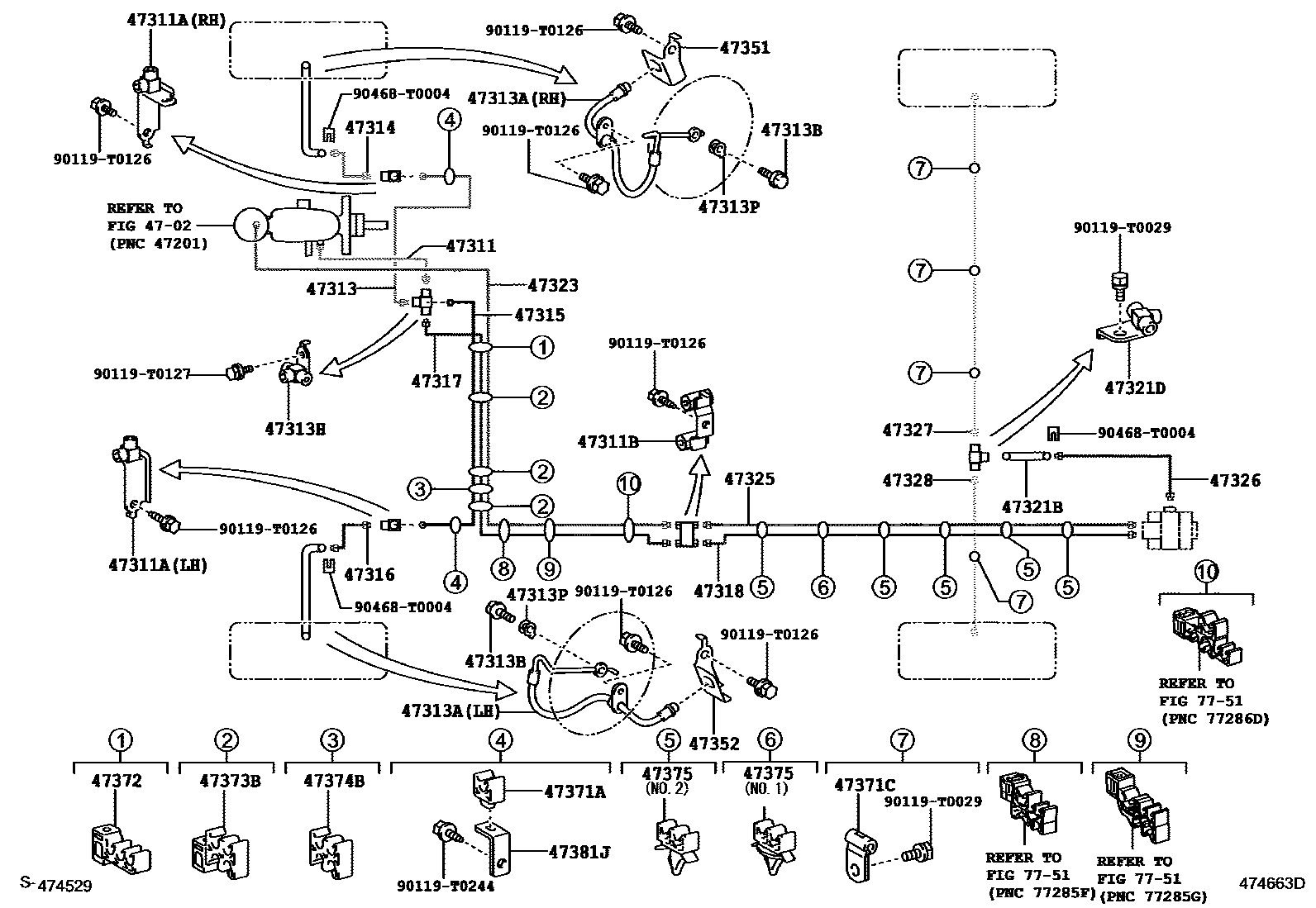

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1W(ABS) 0011 1W(ABS) 0012 1W(ABS) 0013 1W(ABS) 0014 1W(ABS) 0015 1W(ABS) 0016 1W(ABS) 0017 1W(ABS) 0018 1W(VSC) 0022 1W(VSC) 0025 1W(ABS) 0026 1W(ABS) 0027 1W(VSC) 0031 1W(VSC) 0033 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0K010iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-201107

main47311-0K020iKUN15,2#..RHD..(DCB,SCB)200507-201108

main47311-0K030iKUN15,2#..LHD..(THDCB,THSCB,XTR)200507-201107

main47311-0K040iKUN15,25..LHD..(DCB,SCB)200507-200610

main47311-0K041iKUN15,2#..LHD..(DCB,SCB)200610-201108

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10251iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

RH

main90412-10252iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

LH

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10253iKUN15,2#..4FC,5F200507-201108

47313TUBE, FRONT BRAKE, NO.3

main47313-0K010iKUN15,2#..RHD..(DCB,SCB,XTR)..(5F,5FC)200507-201108

main47313-0K020iKUN15,25..RHD..(THDCB,THSCB,XTR)..DLX200507-200708

main47313-0K030iKUN15,25..RHD..(DCB,SCB)..DLX200507-200710

main47313-0K040iKUN25..LHD..THDCB..SR;KUN15,25..LHD..(THDCB,THSCB,XTR)..DLX200507-201108

main47313-0K050iKUN25..LHD..THDCB..SR;KUN15,25..LHD..(THDCB,THSCB,XTR)..DLX200507-200708

main47313-0K060iKUN15,25..LHD..(DCB,SCB)..5F200507-200710

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94029iKUN2#..LHD..(THDCB,THSCB);KUN2#..(DCB,SCB,XTR)..(5F,5FC)¥1,170200507-201108

main90947-T2004iKUN15200507-201108

RH

main90947-T2005iKUN15200507-201108

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iKUN15¥200200507-201108

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90413-10309iKUN15,2#..RHD..(DCB,SCB,XTR)..(5F,5FC)200507-201108

main90413-10312iKUN25..LHD..THDCB..SR;KUN15,25..LHD..(THDCB,THSCB,XTR)..DLX200507-201108

main90414-10055iKUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX200507-200710

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iKUN15¥280200507-201008

main47389-50021iKUN15..THDCB,THSCB,XTR¥310201009-201108

47314TUBE, FRONT BRAKE, NO.4

main47314-0K020iKUN15200507-201108

main47314-0K030iKUN2#..RHD..(THDCB,THSCB)¥320200507-201108

47315TUBE, FRONT BRAKE, NO.5

main47315-0K010iKUN15,25..RHD..(THDCB,THSCB,XTR)..DLX200507-201108

main47315-0K020iKUN15,25..RHD..(THDCB,THSCB,XTR)..DLX200507-200708

main47315-0K030iKUN15,25..RHD..(DCB,SCB)..DLX200507-200710

main47315-0K040iKUN25..LHD..THDCB..SR;KUN15,25..LHD..(THDCB,THSCB,XTR)..DLX200507-201108

main47315-0K050iKUN25..LHD..THDCB..SR;KUN15,25..LHD..(THDCB,THSCB,XTR)..DLX200507-200708

main47315-0K060iKUN15,25..LHD..(DCB,SCB)..5F200507-200710

47316TUBE, FRONT BRAKE, NO.6

main47316-0K020iKUN15200507-201108

main47316-0K030iKUN2#..4FC,5F¥320200507-201108

47317TUBE, FRONT BRAKE, NO.7

main47317-0K010iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-201107

main47317-0K020iKUN15,2#..LHD..(THDCB,THSCB,XTR)200507-201107

main47317-0K030iKUN15,2#..LHD..(DCB,SCB)200507-201108

main47317-0K050iKUN15,2#..RHD..(DCB,SCB)200507-201108

47318TUBE, FRONT BRAKE, NO.8

main47318-0K020iKUN15,2#..4FC,5F200507-201108

47321TUBE, REAR BRAKE, NO.1

main47321-0K010iKUN15,2#..RHD..(THDCB,THSCB,XTR)200702-201107

main47321-0K020iKUN2#..RHD..DCB..SR200507-201108

main47321-0K030iKUN25..LHD..THDCB..SR;KUN15,25..LHD..(THDCB,THSCB,XTR)..DLX200507-201107

main47321-0K040iKUN15,2#..LHD..(DCB,SCB)200507-201108

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2011iKUN15..DCB,SCB200507-201108

main90947-T2015iKUN2#..LHD..(THDCB,THSCB);KUN2#..(DCB,SCB,XTR)..(5F,5FC)200507-201108

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10308iKUN2#..4FC,5F¥670200507-201108

main90413-10311iKUN15..THDCB,THSCB,XTR200507-201108

47323TUBE, REAR BRAKE, NO.3

main47323-0K010iKUN15,2#..RHD..(DCB,SCB,XTR)..(5F,5FC)200507-201108

main47323-0K020iKUN15,25..RHD..(THDCB,THSCB,XTR)..DLX200507-200708

main47323-0K030iKUN15,25..RHD..(DCB,SCB)..DLX200507-200710

main47323-0K040iKUN25..LHD..THDCB..SR;KUN15,25..LHD..(THDCB,THSCB,XTR)..DLX200507-201108

main47323-0K050iKUN25..LHD..THDCB..SR;KUN15,25..LHD..(THDCB,THSCB,XTR)..DLX200507-200708

main47323-0K060iKUN15,25..LHD..(DCB,SCB)..5F200507-200710

47325TUBE, REAR BRAKE, NO.5

main47325-0K020iKUN15,2#..4FC,5F200507-201108

47326TUBE, REAR BRAKE, NO.6

main47329-0K011iKUN15200507-201108

main47329-0K021iKUN2#..4FC,5F200507-201108

47327TUBE, REAR BRAKE, NO.7

main47327-0K010iKUN15200507-201007

sub47327-0K011

main47327-0K011iKUN15..THDCB,THSCB,XTR201008-201108

main47327-0K020iKUN2#..4FC,5F200507-201007

sub47327-0K021¥1,620

main47327-0K021iKUN2#..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB)¥1,620201008-201108

47328TUBE, REAR BRAKE, NO.8

main47328-0K010iKUN15200507-201007

sub47328-0K011

main47328-0K011iKUN15..THDCB,THSCB,XTR201008-201108

main47328-0K020iKUN2#..4FC,5F200507-201007

sub47328-0K021¥750

main47328-0K021iKUN2#..RHD..(THDCB,THSCB)¥750201008-201108

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-0K010iKUN2#..4FC,5F¥410200507-201108

main47353-0K010iKUN15..THDCB,THSCB,XTR200507-201108

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-0K030iKUN2#..4FC,5F¥410200507-201108

main47354-0K010iKUN15200507-201108

47371ACLAMP, BRAKE TUBE, NO.1

main90949-T1011iKUN15..LHD..(THDCB,THSCB,XTR)200507-201108

47371CCLAMP, BRAKE TUBE, NO.7

main90461-T0001iKUN15,2#..4FC,5F¥120200507-201108

47372CLAMP, BRAKE TUBE, NO.2

main90949-T1014iKUN15,2#..RHD..(4FC,5F)200507-201108

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1008iKUN15,2#..RHD..(THDCB,THSCB)200507-201108

main90949-T1012iKUN15..LHD..(THDCB,THSCB,XTR)200507-201108

47374BCLAMP, BRAKE TUBE, NO.4

main90949-T1009iKUN15,2#..RHD..(4FC,5F)200507-201108

47375CLAMP, BRAKE TUBE, NO.5

main90469-T0007iKUN15,2#..4FC,5F200507-201108

NO.1

main90949-T1006iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)¥160200507-201108

NO.2

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main90949-T2001iKUN15,2#..LHD..(4FC,5F)200507-201108

7751

90119T0029

main90119-T0029¥80

90119T0126

main90119-T0126

90119T0127

main90119-T0127

90119T0244

main90119-T0244

90468T0004

main90468-T0004

37 parts on this diagram · 23 diagrams in section
