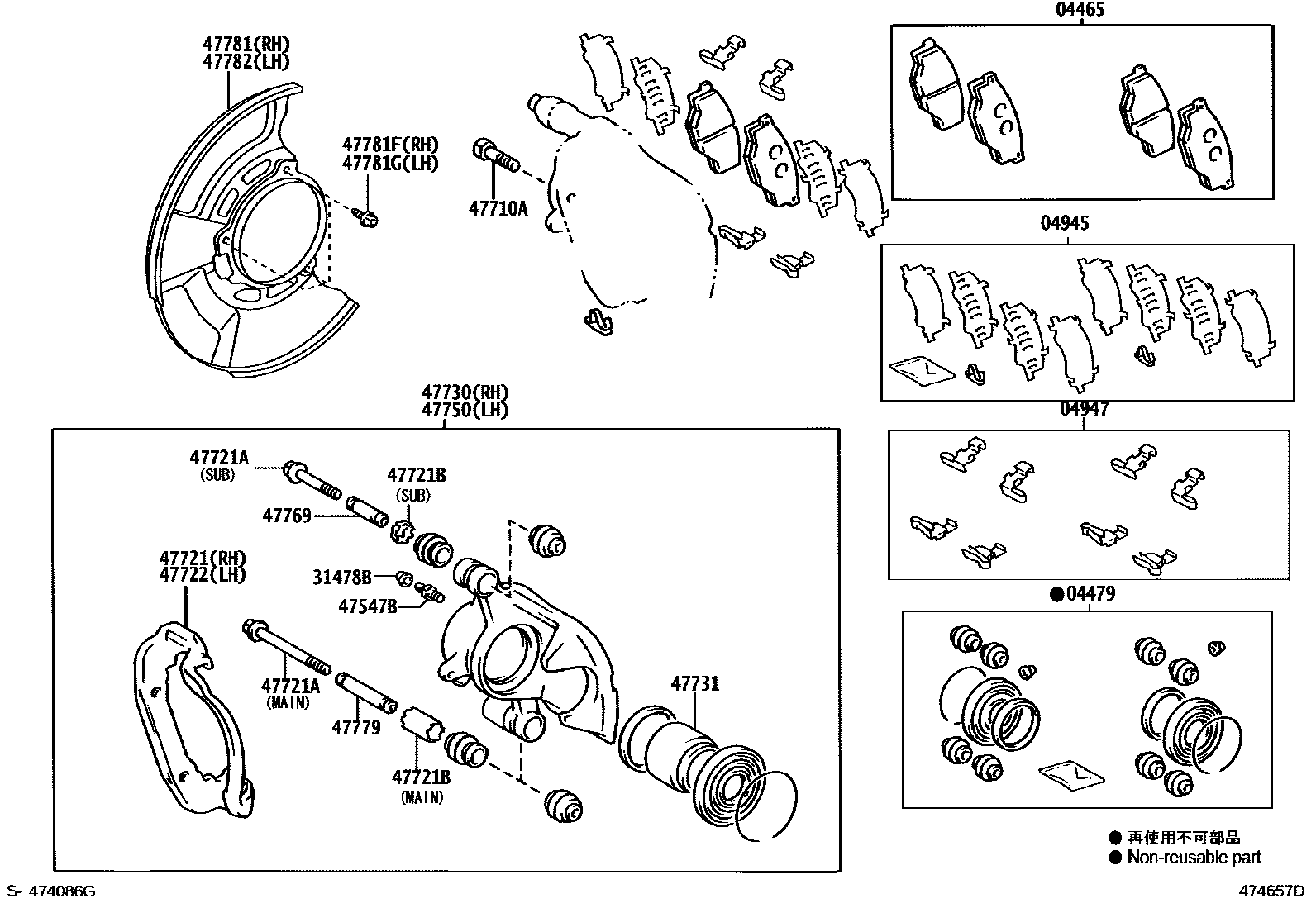

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1W(VSC)

04465PAD KIT, DISC BRAKE, FRONT

main04465-0K020iKUN2#..THDCB,THSCB,XTR200507-201107

MARK ADVICS PS558H

main04465-0K090iKUN25..THDCB..SR;KUN25..LHD..THDCB..DLX..CBU200808-201107

MARK SUMITOMO PS558H,VSC-WITH

main04465-0K130iKUN15..DCB,SCB200507-200810

MARK ADVICS PS558H

main04465-0K140iKUN2#..DCB,SCB200507-200810

MARK ADVICS PS558H

main04465-0K160iKUN15..THDCB,THSCB,XTR200507-200808

MARK ADVICS PS558H

main04465-0K240iKUN2#..DCB,SCB200810-201108

MARK ADVICS PS558H

main04465-0K290iKUN15..THDCB,THSCB,XTR200808-201107

MARK ADVICS PS558H

main04465-0K310iKUN15..DCB,SCB200810-201108

MARK ADVICS PS558H

main04465-35290iKUN26..DCB200810-201108

MARK SUMITOMO PS558H,VSC-WITH

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0K060iKUN15..DCB,SCB200507-201108

main04478-0K110iKUN2#..DCB,SCB200507-201108

main04478-0K130iKUN2#..THDCB,THSCB,XTR200507-201107

main04478-60050iKUN25..LHD..THDCB..CBU200808-201108

VSC-WITH

main04479-04030iKUN15..THDCB,THSCB,XTR200507-201107

sub04478-0K150

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0K130iKUN15..THDCB,THSCB,XTR200507-200808

main04945-0K150iKUN2#..THDCB,THSCB,XTR200507-201107

main04945-0K171iKUN15..DCB,SCB200507-201108

main04945-0K180iKUN2#..DCB,SCB200507-200810

main04945-0K210iKUN2#..DCB,SCB200810-201108

main04945-0K220iKUN25..THDCB..SR;KUN25..LHD..THDCB..DLX..CBU200808-201107

VSC-WITH

main04945-0K250iKUN15..THDCB,THSCB,XTR200808-201107

main04945-35120iKUN26..DCB200810-201108

VSC-WITH

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0K010iKUN15..THDCB,THSCB,XTR200507-201107

main04947-0K020iKUN15..DCB,SCB200507-201108

main04947-0K030iKUN2#..DCB,SCB200507-200810

main04947-0K070iKUN2#..DCB,SCB200810-201108

main04947-35050iKUN25..LHD..THDCB..CBU200808-201108

VSC-WITH

main04947-60080iKUN2#..THDCB,THSCB,XTR200507-201107

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0K020iKUN15..DCB,SCB200507-201108

main31478-0K030iKUN2#..DCB,SCB200507-201108

main31478-30010iKUN25..DCB..SR;KUN25..LHD..DCB..DLX..CBU200808-201108

VSC-WITH

main31478-30010iKUN15,2#..THDCB,THSCB,XTR200507-200808

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iKUN15..THDCB,THSCB,XTR200507-201107

main47547-20030iKUN2#..THDCB,THSCB,XTR200507-201107

main47547-27030iKUN26..THDCB200808-201107

VSC-WITH

main47547-35020iKUN25..DCB..SR;KUN25..LHD..DCB..DLX..CBU200810-201108

VSC-WITH

main90069-0K072iKUN2#..DCB,SCB200507-201108

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175iKUN2#..4FC,5F200507-201108

*12-1.25PX35-27

main91552-C1230iKUN15200507-201108

*12-1.25PX30-26.25

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09500iKUN15..DCB,SCB200810-201108

main47721-0K010iKUN15..THDCB,THSCB,XTR200507-200808

main47721-0K020iKUN15..DCB,SCB200507-200810

main47721-0K110iKUN15..THDCB,THSCB,XTR200808-201107

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA201iKUN15..THDCB,THSCB,XTR200507-201107

*10-1.25PX89.7-30,MAIN PIN SIDE

main90080-10190iKUN15..DCB,SCB200507-201108

*8-1.00PX22-14.5

main90080-11308iKUN15..THDCB,THSCB,XTR200507-201107

*10-1.25PX63.7-30,SUB PIN SIDE

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AX202iKUN15..THDCB,THSCB,XTR200507-201107

MAIN PIN SIDE

main90016-AX203iKUN15..THDCB,THSCB,XTR200507-201107

SUB PIN SIDE

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09200iKUN15..DCB,SCB200810-201108

main47722-0K010iKUN15..THDCB,THSCB,XTR200507-200808

main47722-0K020iKUN15..DCB,SCB200507-200810

main47722-0K110iKUN15..THDCB,THSCB,XTR200808-201107

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0K010iKUN15..THDCB,THSCB,XTR200507-200808

main47730-0K020iKUN15..DCB,SCB200507-200810

main47730-0K060iKUN2#..THDCB,THSCB,XTR200507-200708

sub47730-0K061

main47730-0K061iKUN2#..THDCB,THSCB,XTR200708-201107

main47730-0K070iKUN2#..DCB,SCB200507-200705

sub47730-0K071

main47730-0K071iKUN2#..DCB,SCB200705-200810

main47730-0K110iKUN15..THDCB,THSCB,XTR200808-201107

main47730-0K120iKUN15..DCB,SCB200810-201108

main47730-0K140iKUN25..THDCB..SR;KUN25..LHD..THDCB..DLX..CBU200808-201107

VSC-WITH

main47730-0K180iKUN2#..DCB,SCB200810-201108

main47730-71010iKUN26..DCB200810-201108

VSC-WITH

47731PISTON, FRONT DISC BRAKE

main47731-04050iKUN15..THDCB,THSCB,XTR200507-201107

main47731-0K060iKUN2#..THDCB,THSCB,XTR200507-201107

main47731-0K070iKUN2#..DCB,SCB200507-201108

main47731-35040iKUN25..DCB..SR;KUN25..LHD..DCB..DLX..CBU200808-201108

VSC-WITH

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0K010iKUN15..THDCB,THSCB,XTR200507-200808

main47750-0K020iKUN15..DCB,SCB200507-200810

main47750-0K060iKUN2#..THDCB,THSCB,XTR200507-200708

sub47750-0K061

main47750-0K061iKUN2#..THDCB,THSCB,XTR200708-201107

main47750-0K070iKUN2#..DCB,SCB200507-200705

sub47750-0K071

main47750-0K071iKUN2#..DCB,SCB200705-200810

main47750-0K110iKUN15..THDCB,THSCB,XTR200808-201107

main47750-0K120iKUN15..DCB,SCB200810-201108

main47750-0K140iKUN25..THDCB..SR;KUN25..LHD..THDCB..DLX..CBU200808-201107

VSC-WITH

main47750-0K180iKUN2#..DCB,SCB200810-201108

main47750-71010iKUN26..DCB200810-201108

VSC-WITH

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-04010iKUN15..THDCB,THSCB,XTR200507-201107

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-0K010iKUN15..THDCB,THSCB,XTR200507-201107

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-0K010iKUN15..THDCB,THSCB,XTR200808-201107

main47781-0K010iKUN15200507-200810

main47781-0K020iKUN15..DCB,SCB200810-201108

main47781-0K030iKUN25200507-200605

sub47781-0K031

main47781-0K031iKUN2#..THDCB,THSCB,XTR200606-201107

main47781-0K050iKUN25..DCB..SR;KUN25..LHD..DCB..DLX..CBU200808-201108

VSC-WITH

main47781-0K070iKUN2#..DCB,SCB200810-201108

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-T0005iKUN15200507-201108

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-T0005iKUN15200507-201108

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-0K010iKUN15..THDCB,THSCB,XTR200808-201107

main47782-0K010iKUN15200507-200810

main47782-0K020iKUN15..DCB,SCB200810-201108

main47782-0K030iKUN25200507-200605

sub47782-0K031

main47782-0K031iKUN2#..4FC,5F200606-201107

main47782-0K050iKUN25..DCB..SR;KUN25..LHD..DCB..DLX..CBU200808-201108

VSC-WITH

main47782-0K070iKUN2#..DCB,SCB200810-201108
