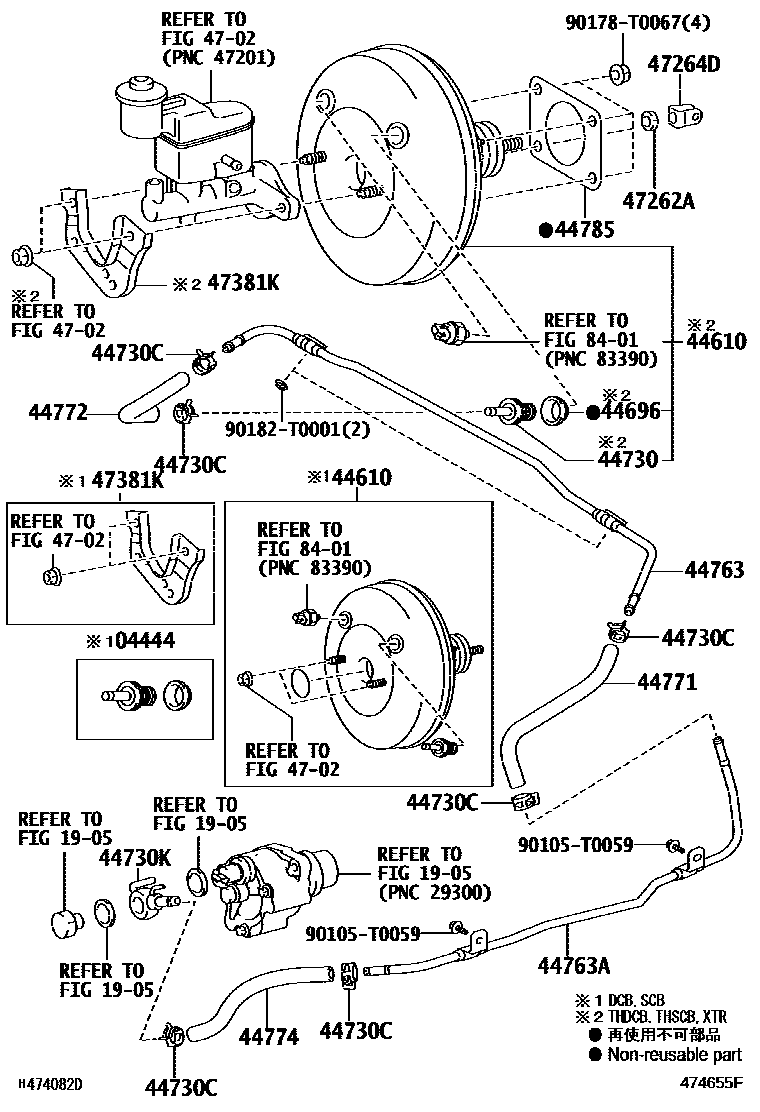

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1W(VSC) 0007 1W(VSC)

04444VALVE KIT, BOOSTER CONTROL

main04444-02010iKUN15,2#..DCB,SCB200507-201108

1905

44610BOOSTER ASSY, BRAKE

main44610-09290iKUN26..LHD..DCB200810-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ABS & EBD & VSC & BA)

sub44610-09820

main44610-09290iKUN25..LHD..DCB..CBU200810-201108

VSC-WITH

sub44610-09820

main44610-09290iKUN15,2#..LHD..(DCB,SCB)200507-200810

sub44610-09820

main44610-09330iKUN15,2#..RHD..(DCB,SCB)200810-201108

VSC-WITH

sub44610-09A90

main44610-09330iKUN15,2#..RHD..(DCB,SCB)200507-200810

sub44610-09A90

main44610-0K030iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-200808

sub44610-0K120

main44610-0K030iKUN15,2#..RHD..(THDCB,THSCB,XTR)200808-201107

VSC-WITH

sub44610-0K120

main44610-0K040iKUN25..LHD..THDCB..CBU200808-201107

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ABS & EBD & VSC & BA)

sub44610-0K230

main44610-0K040iKUN15,2#..LHD..(THDCB,THSCB,XTR)200507-200808

sub44610-0K230

main44610-0K040iKUN15,2#..LHD..(THDCB,THSCB,XTR)200808-201107

VSC-WITH

sub44610-0K230

44696GROMMET, CHECK VALVE

main90080-48050iKUN15,2#..THDCB,THSCB,XTR200507-200808

main90080-48050iKUN15,2#..THDCB,THSCB,XTR200808-201107

VSC-WITH

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iKUN15,2#..THDCB,THSCB,XTR200507-201107

44730CCLIP(FOR VACUUM HOSE)

main90466-T0019iKUN15,2#..LHD..(4FC,5F)200507-201108

44730KUNION, VACUUM HOSE(FOR VACUUM PUMP)

main90405-T0003iKUN15,2#..4FC,5F200507-201108

44763TUBE, BOOSTER VACUUM

main44763-0K010iKUN15,2#..RHD..(4FC,5F)200507-201108

44763ATUBE, HOSE TO HOSE, NO.1

main44763-0K020iKUN15,2#..4FC,5F200507-201108

44771HOSE, VACUUM TUBE CONNECTOR

main44771-0K010iKUN15,2#..RHD..(4FC,5F)200507-201108

sub44771-0K011

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0K010iKUN15,2#..RHD..(THDCB,THSCB,XTR)200507-201107

main44772-0K020iKUN15,2#..RHD..(DCB,SCB)200810-201108

*283 TYPE A:REF ILL.

main44772-0K020iKUN15,2#..RHD..(DCB,SCB)200507-200810

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0K020iKUN15,2#..4FC,5F200507-201108

sub44774-0K021

44785GASKET, BRAKE BOOSTER

main44785-17010iKUN15,2#..4FC,5F200507-201108

4702

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main47262-0K010iKUN15,2#..DCB,SCB200507-201108

main94120-41000iKUN15,2#..THDCB,THSCB,XTR200507-201107

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0K010iKUN15,2#..THDCB,THSCB,XTR200507-201107

main47264-0K020iKUN15,2#..DCB,SCB200507-201108

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-09020iKUN15,2#..DCB,SCB200507-201108

main47381-0K010iKUN15,2#..THDCB,THSCB,XTR200507-201107

8401

90105T0059

main90105-T0059

90178T0067

main90178-T0067

90182T0001

main90182-T0001

21 parts on this diagram · 4 diagrams in section
