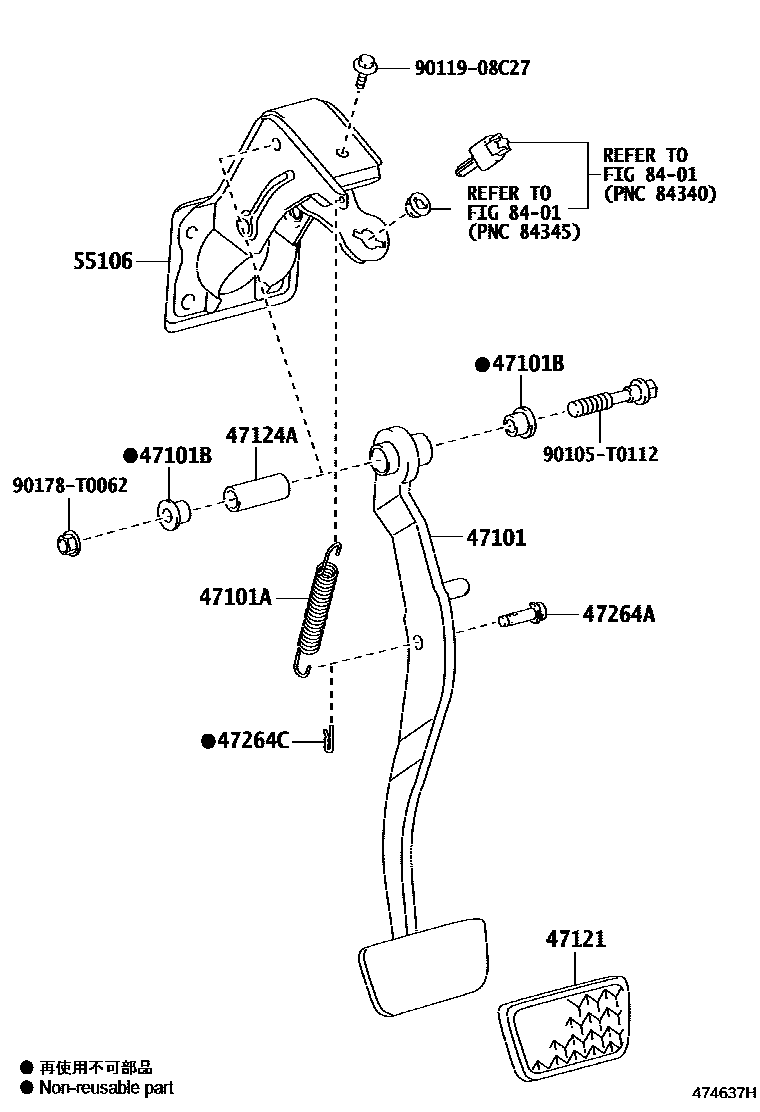

BRAKE PEDAL & BRACKET

0001 1 0002 1W(VSC)

47101PEDAL SUB-ASSY, BRAKE

main47101-0K010iKUN15,2#..RHD..(THDCB,THSCB,XTR)..5F200507-201107

main47101-0K020iKUN15,2#..LHD..(THDCB,THSCB,XTR)..5F200507-201107

main47101-0K040iKUN15,2#..RHD..(DCB,SCB)..5F200507-201108

main47101-0K050iKUN15,2#..LHD..(DCB,SCB)..5F200507-201108

main47101-0K060iKUN26..RHD..THDCB..5FC200702-201107

main47101-0K070iKUN26..LHD..THDCB..4FC200702-201107

sub47101-0K350

main47101-0K100iKUN26..RHD..DCB..5FC200610-201108

main47101-0K110iKUN26..LHD..DCB..5FC200507-201108

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iKUN15,2#..4FC,5F200507-201108

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200507-201108

47121PAD, BRAKE PEDAL

main31321-52010iKUN15,2#..5F200507-201108

main47121-52010iKUN15,26..4FC200507-201108

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iKUN15,2#..4FC,5F200507-201108

47264APIN(FOR PUSH ROD)

main47148-35010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iKUN15,2#..4FC,5F200507-201108

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0K010iKUN15,2#..4FC,5F200507-201010

sub55106-0K011

main55106-0K011iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)201008-201108

8401

90105T0112

main90105-T0112

9011908C27

main90119-08C27

90178T0062

main90178-T0062

12 parts on this diagram · 2 diagrams in section
