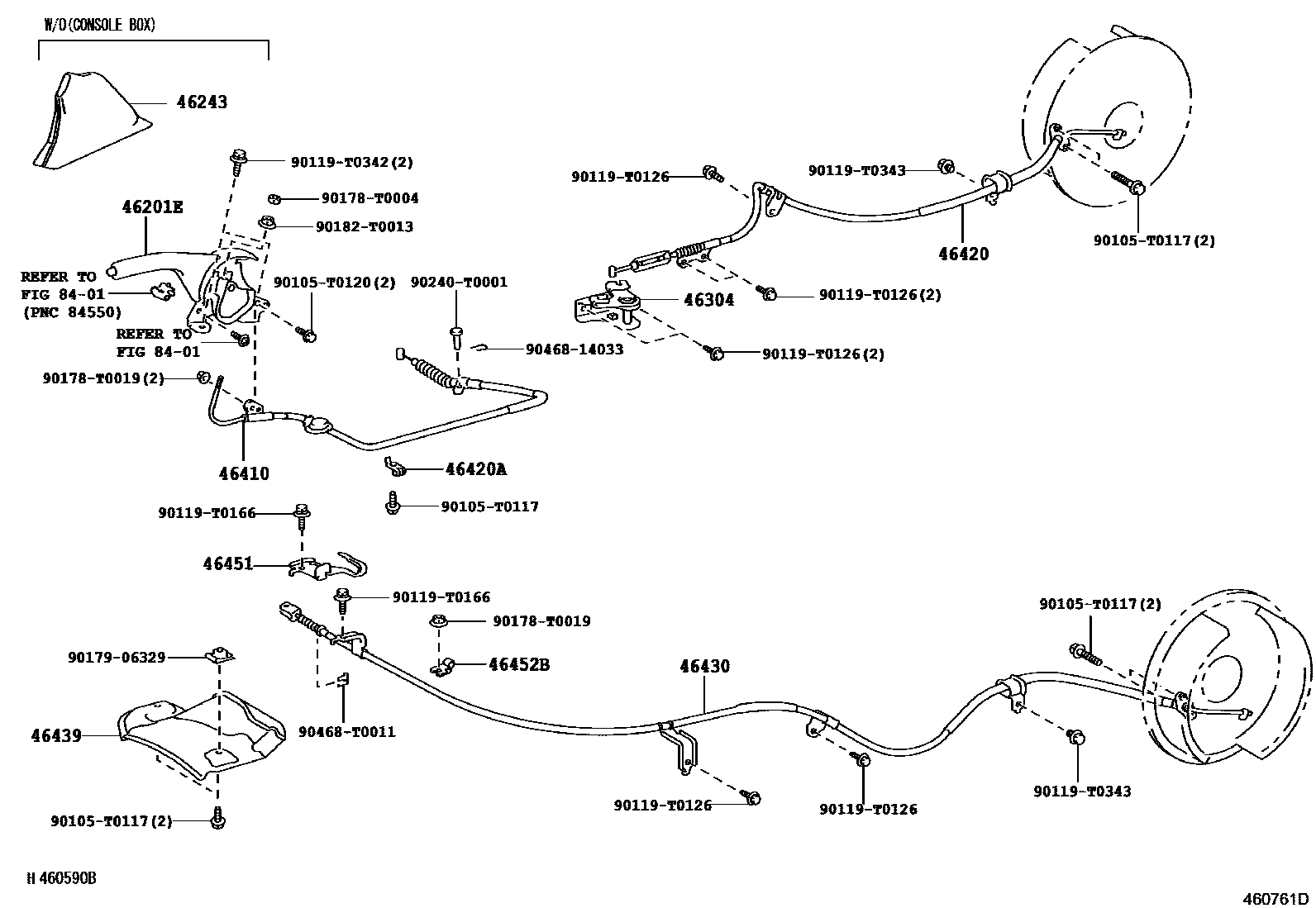

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K010-A0iKUN25..XTR..SR200507-200808

IVORY,TRIM0#

sub46201-0K011

main46201-0K010-B0iKUN15,2#..THDCB,THSCB,XTR200507-200908

GRAY,TRIM1#

sub46201-0K011

main46201-0K011-B0iKUN15,2#..THDCB,THSCB,XTR200909-201107

GRAY,TRIM1#

main46201-0K040-B0iKUN15,2#..DCB,SCB200507-201108

GRAY,TRIM1#

46243COVER, PARKING BRAKE LEVER

main46243-0K010-B0iKUN15,25..SCB,THSCB200507-201108

GRAY,TRIM1#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K021iKUN15,2#..DCB,SCB200507-201108

main46304-0K030iKUN15,2#..THDCB,THSCB,XTR200507-201107

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K040iKUN15,2#..4FC,5F200507-201108

sub46410-0K041

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K030iKUN15200507-201108

main46420-0K101iKUN2#..5F,5FC200507-201108

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01799iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K030iKUN15200507-201108

main46430-0K091iKUN2#..4FC,5F200507-201108

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K010iKUN15,2#..4FC,5F200507-201108

46451BRACKET, CABLE SUPPORT

main46451-0K040iKUN15,2#..4FC,5F200507-201108

46452BBRACKET, CABLE SUPPORT, NO.2

main46452-0K010iKUN15,2#..4FC,5F200507-201108

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0343

main90119-T0343

90178T0004

main90178-T0004

90178T0019

main90178-T0019

9017906329

main90179-06329

90182T0013

main90182-T0013

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

24 parts on this diagram · 2 diagrams in section
