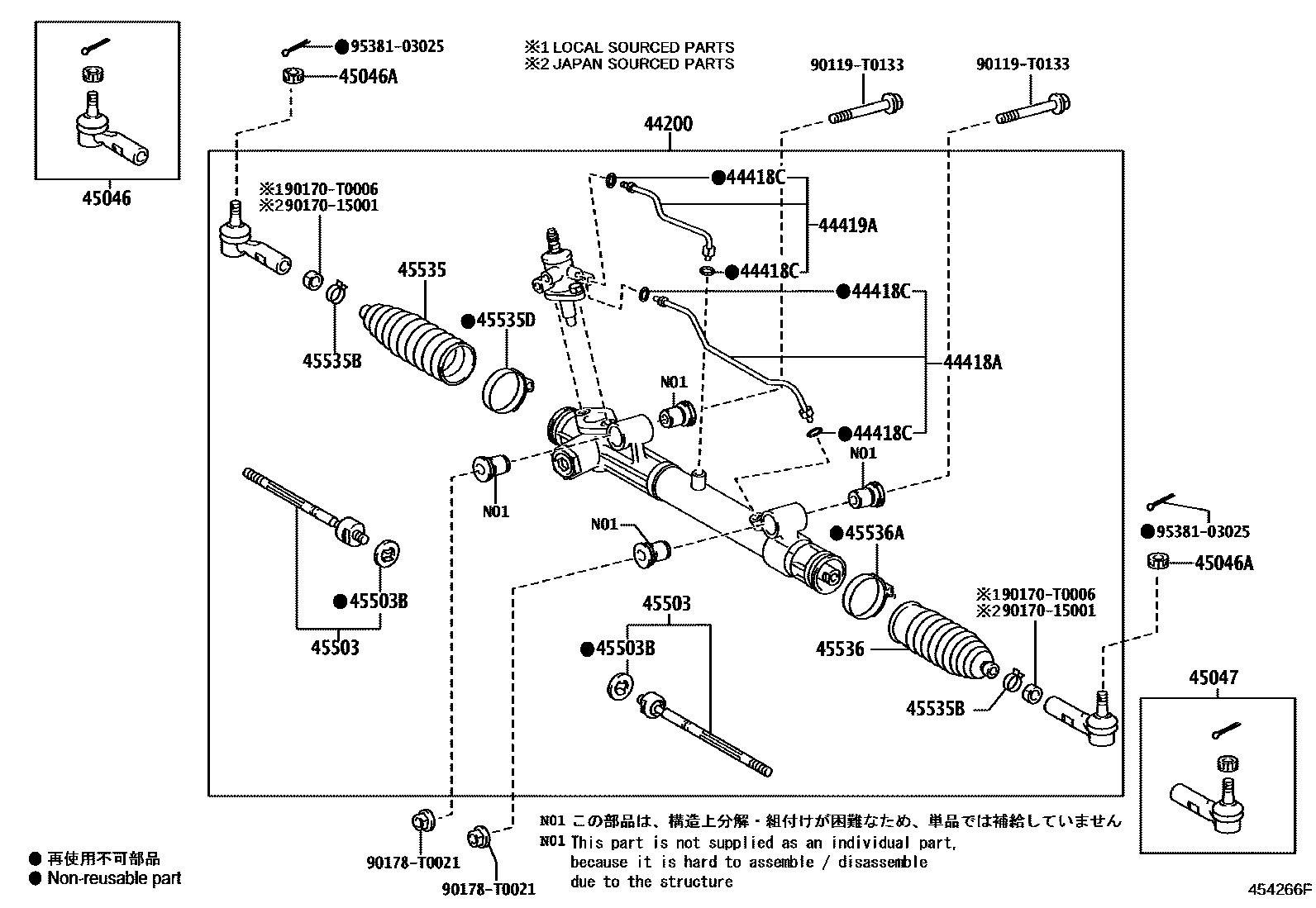

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1

44200LINK ASSY, POWER STEERING

main44200-0K010iKUN15..RHD..(THSCB,XTR)200507-200808

sub44200-0K011

main44200-0K011iKUN15..RHD..THSCB200808-201101

sub44200-0K200

main44200-0K020iKUN15..LHD..(THDCB,THSCB,XTR)200507-200808

sub44200-0K021

main44200-0K021iKUN15..LHD..(THDCB,THSCB,XTR)200808-201101

sub44200-0K210

main44200-0K030iKUN2#..RHD..(4FC,5F)200507-201101

sub44200-0K220

main44200-0K040iKUN2#..LHD..(DCB,SCB)..(5F,5FC)200507-201101

sub44200-0K230

main44200-0K050iKUN15..RHD..SCB200507-201102

sub44200-0K240

main44200-0K070iKUN15..LHD..(DCB,SCB)200507-201102

sub44200-0K260

main44200-0K110iKUN2#..RHD..(DCB,SCB)200904-201102

sub44200-0K280

main44200-0K190iKUN2#..LHD..(DCB,SCB)200904-201102

sub44200-0K340

main44200-0K200iKUN15..RHD..THSCB201102-201107

sub44200-0K360

main44200-0K210iKUN15..LHD..(THDCB,THSCB,XTR)201102-201107

sub44200-0K510

main44200-0K220iKUN2#..RHD..(THDCB,THSCB,XTR)201102-201107

sub44200-0K380

main44200-0K230iKUN2#..LHD..(THDCB,THSCB,XTR)201102-201107

sub44200-0K390

main44200-0K240iKUN15..RHD..SCB201103-201108

sub44200-0K400

main44200-0K260iKUN15..LHD..(DCB,SCB)201103-201108

sub44200-0K420

main44200-0K280iKUN2#..RHD..(DCB,SCB)201103-201108

sub44200-0K440

main44200-0K340iKUN2#..LHD..(DCB,SCB)201103-201108

sub44200-0K500

44418ATUBE, STEERING RIGHT TURN PRESSURE

main44418-0K090iKUN15..RHD..THSCB200507-201107

main44418-0K100iKUN15..RHD..SCB200810-201108

main44418-0K120iKUN15..LHD..(THDCB,THSCB,XTR)200507-201107

main44418-0K130iKUN15..LHD..(DCB,SCB)200507-201108

main44418-0K140iKUN2#..RHD..(DCB,SCB)..(5F,5FC)200507-201107

main44418-0K150iKUN2#..LHD..(THDCB,THSCB,XTR)200507-201107

main44418-0K170iKUN2#..RHD..(DCB,SCB)200904-201108

main44418-0K180iKUN2#..LHD..(DCB,SCB)200904-201108

44418CRING, O(FOR STEERING TURN PRESSURE TUBE)

main90301-T0032iKUN2#..RHD..(THDCB,THSCB,XTR)200507-201107

44419ATUBE, STEERING LEFT TURN PRESSURE

main44419-0K090iKUN15..RHD..(THSCB,XTR)200507-201107

main44419-0K100iKUN15..RHD..SCB200810-201108

main44419-0K120iKUN15..LHD..(THDCB,THSCB,XTR)200507-201107

main44419-0K130iKUN15..LHD..(DCB,SCB)200507-201108

main44419-0K140iKUN2#..RHD..(DCB,SCB)..(5F,5FC)200507-201107

main44419-0K150iKUN2#..LHD..(THDCB,THSCB,XTR)200507-201107

main44419-0K170iKUN2#..RHD..(DCB,SCB)200904-201108

main44419-0K180iKUN2#..LHD..(DCB,SCB)200904-201108

45046END SUB-ASSY, TIE ROD, RH

main45046-09251iKUN15..THDCB,THSCB,XTR200507-201107

main45046-09261iKUN15..DCB,SCB200507-201108

main45046-09281iKUN2#..LHD..(THDCB,THSCB);KUN2#..(DCB,SCB,XTR)..(5F,5FC)200507-201108

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-T0002iKUN2#..RHD..(THDCB,THSCB)200507-201108

main90171-T0004iKUN15..DCB,SCB200507-201108

45047END SUB-ASSY, TIE ROD, LH

main45046-09251iKUN15..THDCB,THSCB,XTR200507-201107

main45046-09261iKUN15..DCB,SCB200507-201108

main45046-09281iKUN2#..RHD..(THDCB,THSCB)200507-201108

45503END SUB-ASSY, STEERING RACK

main45503-09321iKUN2#..4FC,5F;KUN15..THDCB,THSCB,XTR200507-201107

main45503-09331iKUN15..DCB,SCB200507-201108

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-T0001iKUN2#..(DCB,SCB)..(5F,5FC)200507-201107

OD=43

main90214-T0002iKUN15..DCB,SCB200507-201108

OD=43

45535BOOT, STEERING RACK, NO.1

main45535-0K010iKUN15,2#..4FC,5F200507-201108

45535BCLIP(FOR STEERING RACK BOOT)

main90466-T0004iKUN2#..4FC,5F;KUN15..THDCB,THSCB,XTR200507-201107

main90466-T0005iKUN15..DCB,SCB200507-201108

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-T0001iKUN15,2#..4FC,5F200507-201108

45536BOOT, STEERING RACK, NO.2

main45536-0K010iKUN15,2#..4FC,5F200507-201108

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-T0001iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

90119T0133

main90119-T0133

9017015001

main90170-15001

90170T0006

main90170-T0006

90178T0021

main90178-T0021

9538103025

main95381-03025

19 parts on this diagram · 5 diagrams in section
