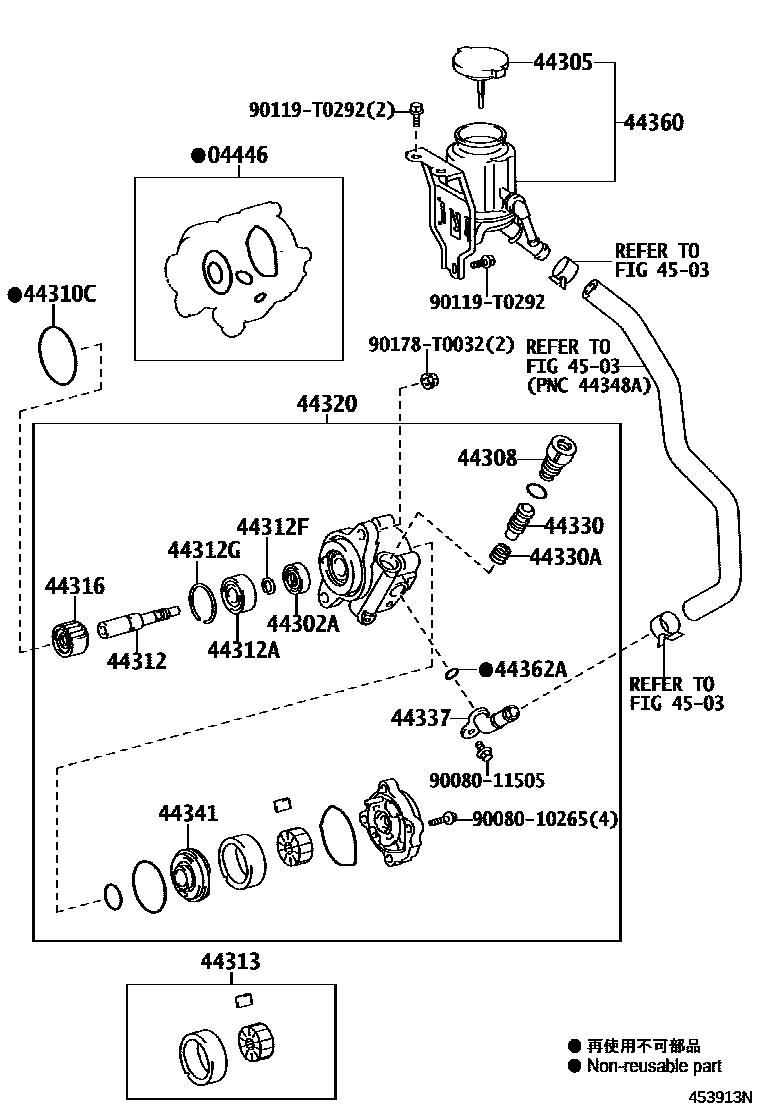

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-0B040iKUN15,2#200507-200804

sub04446-0K010

main04446-0K010iKUN15,2#..5F,5FC200804-201108

44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)

main90316-T0001iKUN15,2#..4FC,5F200507-201108

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-0K020iKUN15,2#200507-200709

sub44305-0K040

main44305-0K040iKUN15,2#..5F,5FC200710-201102

sub44305-0K041

main44305-0K041iKUN15,26..DCB,SCB;KUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB)201103-201108

sub44305-0K042

44308UNION SUB-ASSY, PRESSURE PORT

main44308-0K020iKUN15..THDCB,THSCB,XTR200507-201108

main44308-0K050iKUN2#..RHD..(THDCB,THSCB)200507-201108

44310CRING, O(FOR VANE PUMP)

main90301-T0014iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200507-201108

44312SHAFT, VANE PUMP

main44312-0K010iKUN15,2#..4FC,5F200507-201108

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-T0005iKUN15,2#..4FC,5F200507-201108

44312FRING, SNAP, NO.1(FOR VANE PUMP SHAFT BEARING)

main90520-T0001iKUN15,2#..4FC,5F200507-201108

44312GRING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)

main90520-T0002iKUN15,2#..4FC,5F200507-201108

44313ROTOR, VANE PUMP

main44313-09010iKUN15,2#..4FC,5F200507-201108

44316GEAR, VANE PUMP

main44316-0K010iKUN15,2#..4FC,5F200507-201108

44320PUMP ASSY, VANE

main44310-0K020iKUN15200507-201108

main44310-0K040iKUN2#..LHD..(THDCB,THSCB);KUN2#..(DCB,SCB,XTR)..(5F,5FC)200507-201108

44330VALVE ASSY, FLOW CONTROL

main44330-0K130iKUN15,2#..4FC,5F200507-201108

MARK A

main44330-0K140iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

MARK B

main44330-0K150iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

MARK C

main44330-0K160iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200507-201108

MARK D

main44330-0K170iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

MARK E

main44330-0K180iKUN25..DCB,SCB,XTR;KUN2#..LHD..(THDCB,THSCB);KUN15,26..(DCB,SCB)..(5F,5FC)200507-201108

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-T0001iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

44337UNION, POWER STEERING SUCTION PORT

main44337-06060iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

44341PLATE, VANE PUMP SIDE, FRONT

main44341-06010iKUN15,2#..4FC,5F200507-201108

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-0K020iKUN15,2#..4FC,5F200507-201108

sub44360-0K021

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90080-30093iKUN15,2#..4FC,5F200507-201108

4503

9008010265

main90080-10265

9008011505

main90080-11505

90119T0292

main90119-T0292

90178T0032

main90178-T0032

23 parts on this diagram · 1 diagram in section
