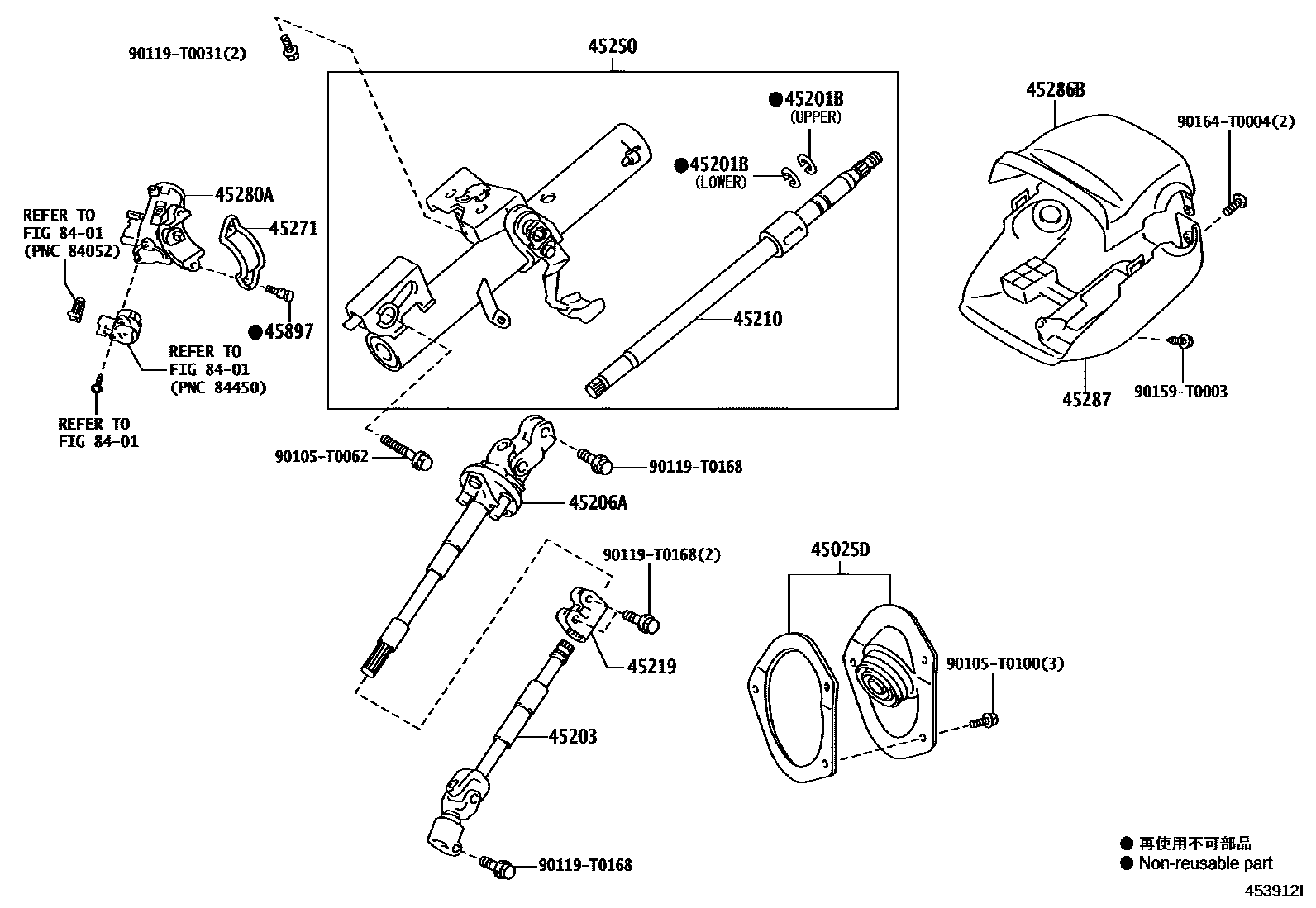

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0K030iKUN15,2#..RHD..(4FC,5F)200507-201108

main45025-0K040iKUN15,2#..LHD..(4FC,5F)200507-201108

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iKUN15,2#..4FC,5F200507-201108

T=1.20,UPPER

main90520-17269iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

T=1.20,LOWER

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-0K010iKUN15..RHD200507-201108

main45203-0K020iKUN15..LHD200507-201108

main45203-0K030iKUN2#..RHD..(4FC,5F)200507-201108

main45203-0K040iKUN2#..LHD..(5F,5FC)200507-201108

45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING

main45206-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

45210SHAFT ASSY, STEERING MAIN

main45210-0K010iKUN15,2#..4FC,5F200507-201108

45219YOKE, STEERING SLIDING

main45219-0K010iKUN15,2#..4FC,5F200507-201108

45250COLUMN ASSY, STEERING

main45250-0K010iKUN15,2#..4FC,5F200507-201108

45271CLAMP, STEERING COLUMN, UPPER

main45271-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-0K020iKUN15,2#..5F200507-201108

main45280-0K030iKUN15,26..4FC200507-201108

45286BCOVER, STEERING COLUMN, UPR

main45286-0K010-B0iKUN15,2#..THDCB,THSCB,XTR200507-201107

DK.GRAY,TRIM1#

sub45286-0K010

main45286-0K010-E0iKUN25..XTR..SR200507-200808

SANDAL WOOD,TRIM0#

sub45286-0K010

main45286-0K020-B0iKUN15,2#..DCB,SCB200507-201108

DK.GRAY,TRIM1#

main45286-0K020-E0iKUN15,25..DCB..SR200507-200810

SANDAL WOOD,TRIM0#

45287COVER, STEERING COLUMN, LWR

main45287-0K010-B0iKUN15,2#..THDCB,THSCB,XTR200507-201107

DK.GRAY,TRIM1#

sub45287-0K010

main45287-0K010-E0iKUN25..XTR..SR200507-200808

SANDAL WOOD,TRIM0#

sub45287-0K010

main45287-0K020-B0iKUN15,2#..DCB,SCB200507-201108

DK.GRAY,TRIM1#

sub45287-0K010

main45287-0K020-E0iKUN15,25..DCB..SR200507-200810

SANDAL WOOD,TRIM0#

sub45287-0K010

45897BOLT, STEERING LOCK SET

main45897-0K010iKUN15,2#..4FC,5F200507-201108

8401

90105T0062

main90105-T0062

90105T0100

main90105-T0100

90119T0031

main90119-T0031

90119T0168

main90119-T0168

90159T0003

main90159-T0003

90164T0004

main90164-T0004

19 parts on this diagram · 1 diagram in section
