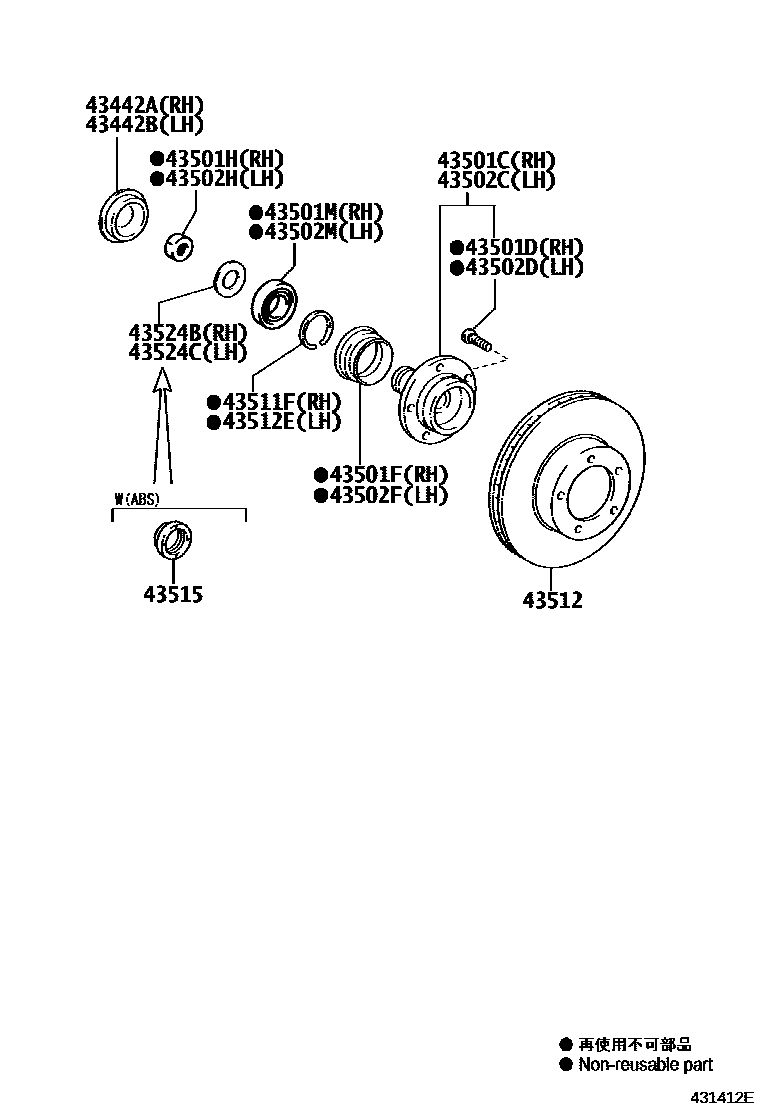

FRONT AXLE HUB

0001 1 0002 1

43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH

main43442-0K010iKUN15200507-201108

43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH

main43442-0K010iKUN15200507-201108

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0K010iKUN15200507-201108

sub43502-0K090

main43502-0K030iKUN2#..RHD..(THDCB,THSCB)200507-201108

main43502-0K090iKUN15..THDCB,THSCB,XTR200812-201107

sub43502-KK030

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iKUN2#..4FC,5F200507-201108

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-T0010iKUN15200507-201108

sub90311-T0090

main90312-T0001iKUN2#..RHD..(THDCB,THSCB)200507-201108

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-T0002iKUN15200507-200605

main90178-28002iKUN2#..4FC,5F200705-201108

main90178-T0040iKUN25200507-200605

main90179-24010iKUN15..THDCB,THSCB,XTR200606-201108

main90179-28007iKUN2#200606-200704

sub90178-28002

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90080-36205iKUN15..DCB,SCB200507-201108

main90080-37030iKUN2#..DCB,SCB200507-201108

main90366-T0007iKUN15..THDCB,THSCB,XTR200507-201107

main90369-T0003iKUN2#..THDCB,THSCB,XTR200507-201107

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0K010iKUN15200507-201108

sub43502-0K090

main43502-0K030iKUN2#..RHD..(THDCB,THSCB)200507-201108

main43502-0K090iKUN15..THDCB,THSCB,XTR200812-201107

sub43502-KK030

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iKUN15200507-201108

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-T0010iKUN15200507-201108

sub90311-T0090

main90312-T0001iKUN2#..4FC,5F200507-201108

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-T0002iKUN15200507-200605

main90178-28002iKUN2#..4FC,5F200705-201108

main90178-T0040iKUN25200507-200605

main90179-24010iKUN15..DCB,SCB200606-201108

main90179-28007iKUN2#200606-200704

sub90178-28002

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90080-36205iKUN15..DCB,SCB200507-201108

main90080-37030iKUN2#..DCB,SCB200507-201108

main90366-T0007iKUN15..THDCB,THSCB,XTR200507-201107

main90369-T0003iKUN2#..THDCB,THSCB,XTR200507-201107

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-T0003iKUN15..THDCB,THSCB,XTR200507-201108

43512DISC, FRONT

main43512-0K010iKUN15..THDCB,THSCB,XTR200507-200808

main43512-0K030iKUN15..DCB,SCB200507-200810

main43512-0K060iKUN2#..THDCB,THSCB,XTR200507-201107

main43512-0K070iKUN2#..DCB,SCB200507-201108

sub43512-0K071

main43512-0K120iKUN15..THDCB,THSCB,XTR200808-201107

main43512-0K130iKUN15..DCB,SCB200810-201108

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-T0003iKUN15200507-201108

43515ROTOR, SKID CONTROL, FRONT

main43515-0K010iKUN15..SR200507-201108

main43515-0K010iKUN15..LHD..(DCB,SCB)200708-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main43515-0K020iKUN2#..5F,5FC200808-201108

main43515-0K020iKUN26..4FC,5F;KUN25..RHD..SR;KUN25..XTR..SR200507-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

43524BSPACER, FRONT WHEEL INNER BEARING, RH

main43524-0K010iKUN15..(THDCB,THSCB,XTR)..HDCR200507-200710

main43524-0K020iKUN2#..4FC,5F200507-201108

43524CSPACER, FRONT WHEEL INNER BEARING, LH

main43524-0K010iKUN15..(THDCB,THSCB,XTR)..HDCR200507-200710

main43524-0K020iKUN2#..4FC,5F200507-201108

18 parts on this diagram · 2 diagrams in section
