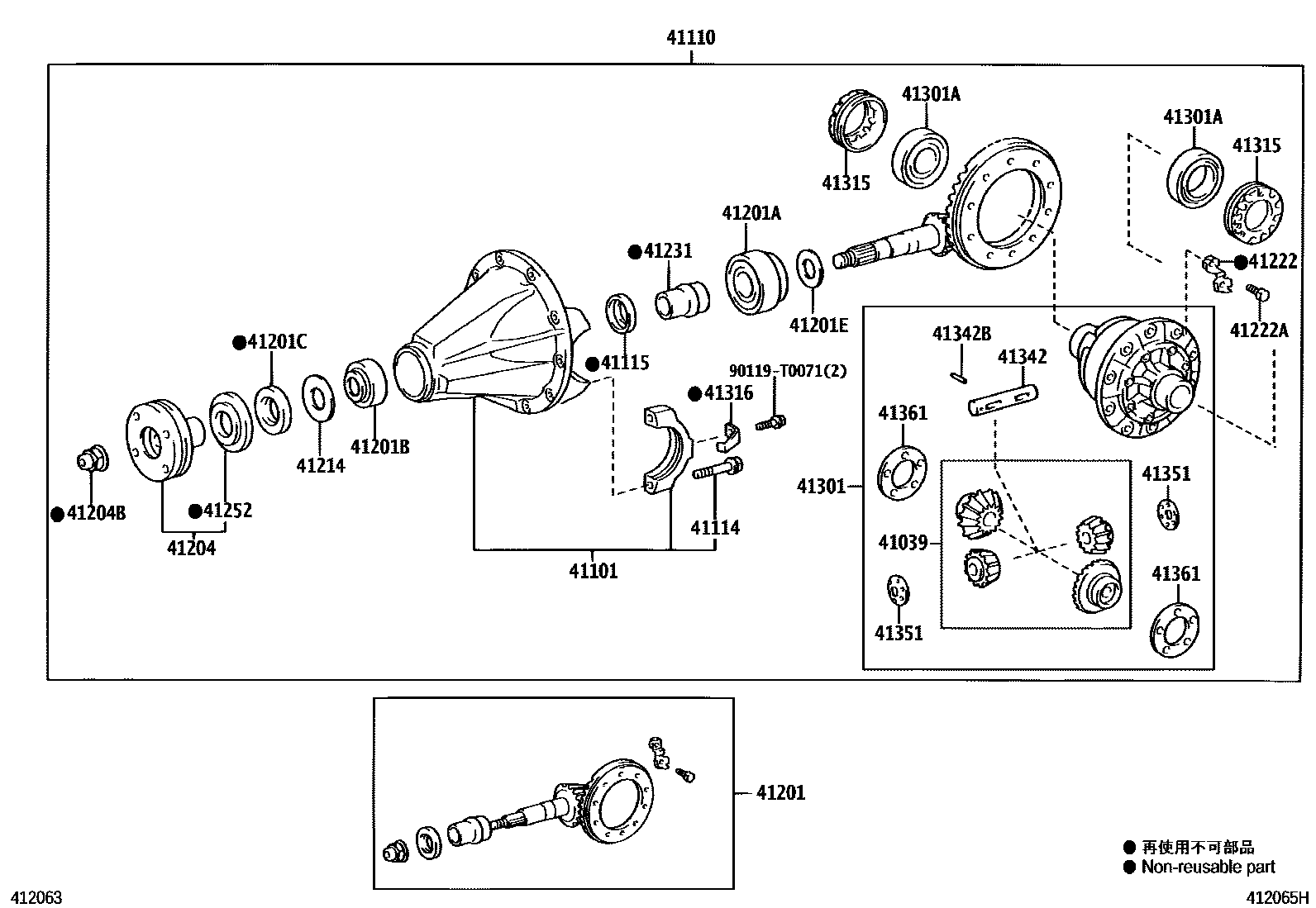

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=43:12=3.583
*FGR=43:11=3.909
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41115RING, DIFFERENTIAL OIL STORAGE
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:10=4.100
*FGR=41:11=3.727
*FGR=43:12=3.583
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
OD=52,T=1.70
OD=52,T=1.73
OD=52,T=1.76
OD=52,T=1.79
OD=52,T=1.82
OD=52,T=1.85
OD=52,T=1.88
OD=52,T=1.91
OD=52,T=1.94
OD=52,T=1.97
OD=52,T=2.00
OD=52,T=2.03
OD=52,T=2.06
OD=52,T=2.09
OD=52,T=2.12
OD=52,T=2.15
OD=52,T=2.18
OD=52,T=2.21
OD=52,T=2.24
OD=52,T=2.27
OD=52,T=2.30
OD=52,T=2.33
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
(L)
(J)
(J)
41204BNUT (FOR REAR DRIVE PINION)
OD=40.2
OD=39.5
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
DIFFERENTIAL-WITH(LSD)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
90119T0071
main90119-T0071
26 parts on this diagram · 7 diagrams in section
