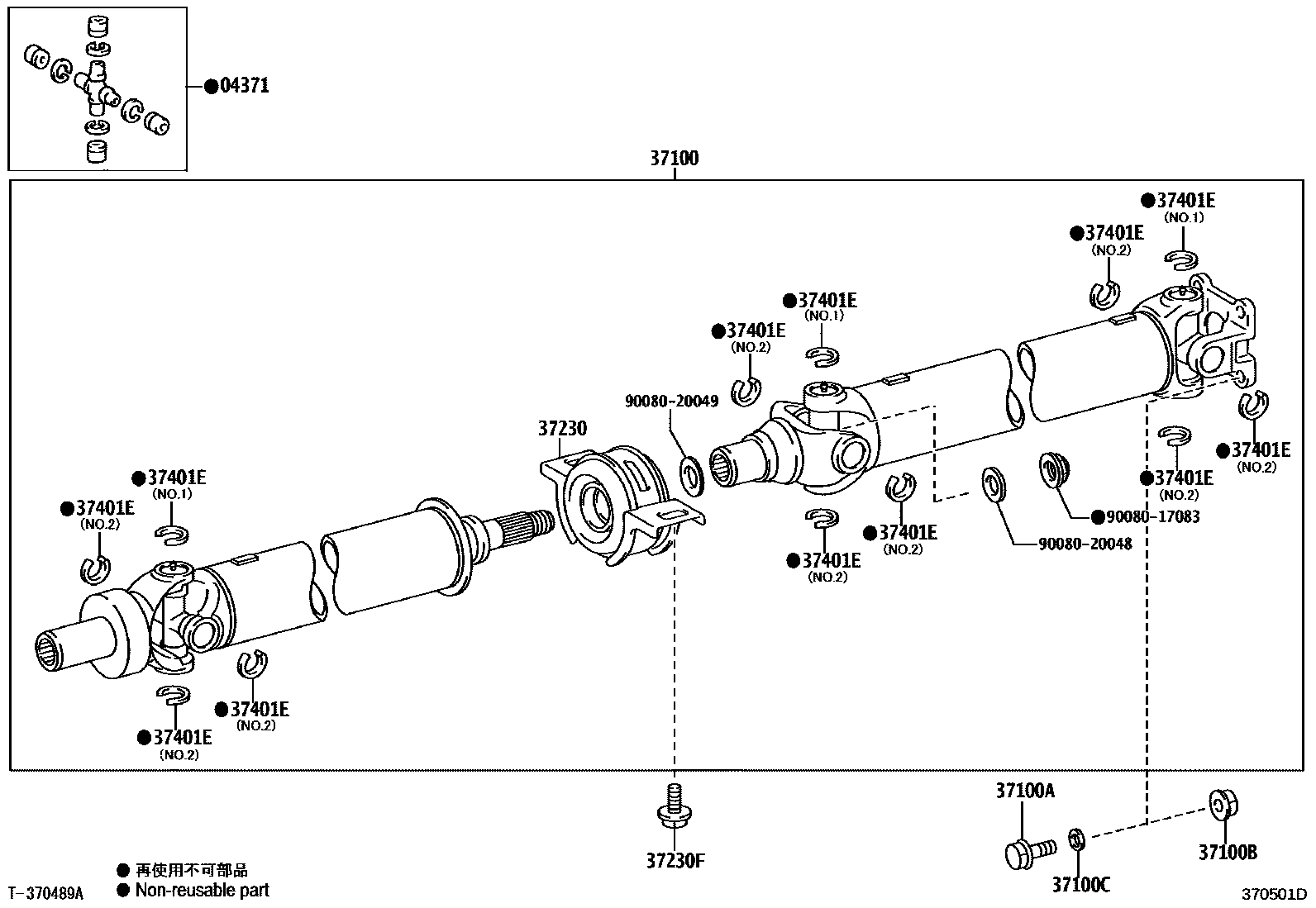

PROPELLER SHAFT & UNIVERSAL JOINT
04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
sub04371-04031
sub04371-0K060
sub04371-0K110
sub04371-04030
sub04371-0K082
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
sub37100-0K181
sub37100-0K182
sub37100-0K201
sub37100-0K261
sub37100-0K262
sub37100-0K263
sub37100-0K331
sub37100-0K351
sub37100-0K661
sub37100-0K671
sub37100-0K672
sub37100-0K673
sub37100-0K674
sub37100-0K701
sub37100-0K711
sub37100-0K712
sub37100-0K713
37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
sub90201-11013
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
T=1.64,BLUE,NO.2
T=1.64,BLUE,NO.1 & NO.2
T=1.59,YELLOW,NO.2
T=1.59,YELLOW,NO.1 & NO.2
T=1.54,SILVER,NO.1 & NO.2
T=1.54,SILVER,NO.2
T=1.49,COPPER,NO.2
T=1.49,COPPER,NO.1 & NO.2
T=1.51,BLACK,NO.1 & NO.2
T=1.51,BLACK,NO.2
T=1.44,RED,NO.1 & NO.2
T=1.44,RED,NO.2
T=1.38,GREEN,NO.1 & NO.2
T=1.38,GREEN,NO.2
T=1.52,NO.1
T=1.41,NO.2
T=1.41,NO.1 & NO.2
T=1.46,NO.2
T=1.46,NO.1 & NO.2
T=1.48,NO.1 & NO.2
T=1.48,NO.2
T=1.56,NO.1 & NO.2
T=1.56,NO.2
T=1.61,NO.2
T=1.61,NO.1 & NO.2
T=1.66,NO.2
T=1.66,NO.1 & NO.2
T=1.71,NO.2
T=1.71,NO.1 & NO.2
T=2.19,MARK F
T=2.21,MARK G
T=2.23,MARK H
T=2.25,MARK J
T=2.27,MARK K
T=2.29,MARK 1
T=2.31,MARK 2
T=2.33,MARK 3
T=2.35,MARK 4
T=2.37,MARK 5
T=2.39,MARK 6
T=2.41,MARK 7
T=2.43,MARK 8
T=2.45,MARK N
T=2.47,MARK 10
T=2.49,MARK A
T=2.51,MARK B
T=2.53,MARK C
T=2.55,MARK D
T=2.57,MARK E
9008017083
main90080-17083
9008020048
main90080-20048
9008020049
main90080-20049
11 parts on this diagram · 6 diagrams in section
