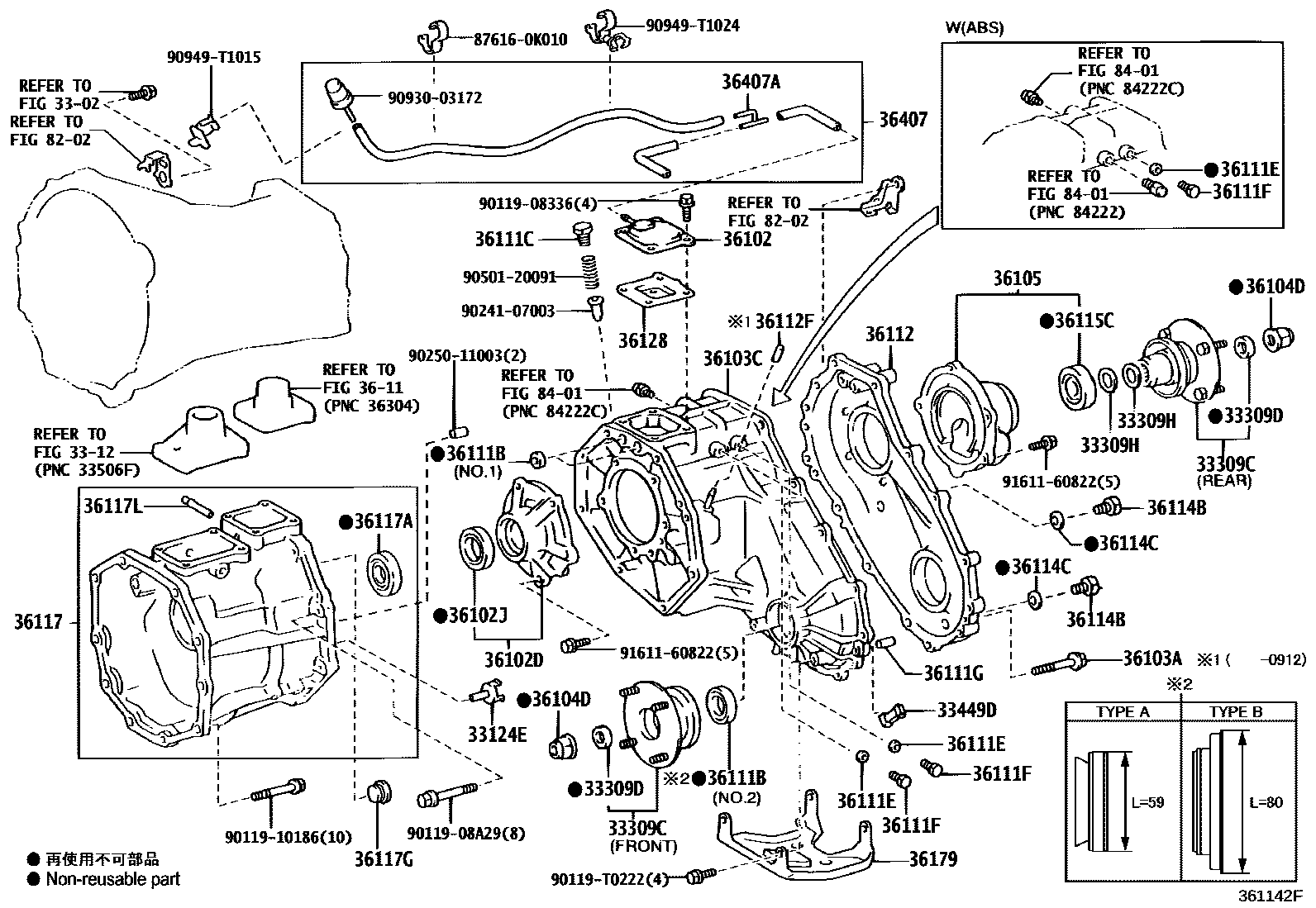

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

3302

3312

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33124-0K010iKUN2#..(DCB,SCB)..5F200507-201108

TYPE C:REFER 33-01

main33124-0K010iKUN2#..(DCB,SCB)..5F200808-200810

main33124-0K010iKUN2#..5F200808-201108

TYPE D:REFER 33-01

main33124-35100iKUN2#..(THDCB,THSCB,XTR)..5F200507-201107

TYPE B:REFER 33-01

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35110iKUN2#200507-200807

FRONT,*338

sub33309-35113

sub90311-41017

main33309-35111iKUN2#..4FC,5F200807-200810

FRONT,*339

sub33309-35112

sub90311-41017

main33309-35111iKUN2#..5F,5FC200808-201108

FRONT

sub33309-35112

sub90311-41017

main33309-35120iKUN2#..4FC,5F200507-201108

REAR

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iKUN2#..4FC,5F200507-201108

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35010iKUN2#..4FC,5F200507-201108

N=30,OD=38

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iKUN2#..4FC,5F200507-201108

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35040iKUN2#..4FC,5F200507-201108

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35060iKUN2#..4FC,5F200507-201108

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-43008iKUN2#..4FC,5F200507-201108

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28iKUN2#..5F,5FC200507-201108

*8-1.25PX55-30

36103CCASE, TRANSFER, FRONT

main36103-60340iKUN2#..5F,5FC200507-200912

sub36111-60261

main36111-60261iKUN2#200912-201108

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016iKUN2#..4FC,5F200507-201108

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-35040iKUN2#..4FC,5F200507-201108

3611

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-15008iKUN2#..4FC,5F200507-201108

NO.1

main90311-41010iKUN25200507-200609

NO.2

sub90311-41012

main90311-41012iKUN2#200609-200807

NO.2T/P A:REF.ILLUST

main90311-41013iKUN2#..4FC,5F200807-200810

NO.2T/P B:REF.ILLUST

main90311-41013iKUN2#..5F,5FC200808-201108

NO.2

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iKUN2#..5F,5FC200507-201108

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iKUN25..LHD200708-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main90430-18008iKUN25..LHD200808-201108

DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main90430-18008iKUN25..LHD..DCB..SR;KUN25..(DCB,SCB,XTR)..DLX200507-200708

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main90430-18008iKUN25..LHD..DCB..SR;KUN25..(DCB,SCB,XTR)..DLX200507-200708

AUTO DISCONNECT DIFFERENTIAL-WITH&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main90430-18008iKUN26..5F;KUN25..XTR..SR;KUN25..THDCB,THSCB;KUN25..RHD..DCB..SR200507-200810

main90430-18008iKUN25..LHD..DCB..SR;KUN25..(DCB,SCB,XTR)..DLX200708-200810

AUTO DISCONNECT DIFFERENTIAL-WITH&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iKUN25..(DCB,SCB,XTR)..DLX200507-200708

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main90341-18006iKUN25..LHD..DCB..SR;KUN25..(DCB,SCB,XTR)..DLX200507-200708

AUTO DISCONNECT DIFFERENTIAL-WITH&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main90341-18006iKUN26..5F;KUN25..XTR..SR;KUN25..THDCB,THSCB;KUN25..RHD..DCB..SR200507-200810

main90341-18006iKUN25..LHD..DCB..SR;KUN25..(DCB,SCB,XTR)..DLX200708-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main90341-18006iKUN25..LHD..DCB..SR;KUN25..(DCB,SCB,XTR)..DLX200708-200810

AUTO DISCONNECT DIFFERENTIAL-WITH&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main90341-18006iKUN2#..5F200808-201108

DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iKUN2#..5F,5FC200507-201108

L=14,OD=10

36112CASE, TRANSFER, REAR

main36112-35040iKUN2#..5F,5FC200507-201108

36112FCAP, TRANSFER, REAR CASE

main90339-04024iKUN2#..5F,5FC200507-200912

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iKUN2#..5F,5FC200507-201108

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iKUN2#..4FC,5F200507-201108

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iKUN2#..4FC,5F200507-201108

sub90311-41020

36117ADAPTER, TRANSFER

main36107-0K010iKUN2#..(DCB,SCB)..5F200507-200810

main36107-0K010iKUN2#..(DCB,SCB)..5F200810-201108

TYPE C:REFER 33-01

main36107-0K030iKUN2#..5F200808-201108

TYPE D:REFER 33-01

main36107-0K050iKUN2#..(THDCB,THSCB,XTR)..5F200808-201107

TYPE B:REFER 33-01

main36107-0K050iKUN2#..(THDCB,THSCB,XTR)..5F200507-200808

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-T0018iKUN2#..(DCB,SCB)..5F200507-200810

sub90311-T0080

main90311-T0018iKUN2#..5F200808-201108

TYPE D:REFER 33-01

sub90311-T0080

main90311-T0018iKUN2#..(DCB,SCB)..5F200810-201108

TYPE C:REFER 33-01

sub90311-T0080

main90311-T0028iKUN2#..(THDCB,THSCB,XTR)..5F200507-200808

main90311-T0028iKUN2#..(THDCB,THSCB,XTR)..5F200808-201107

TYPE B:REFER 33-01

36117GPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-24006iKUN2#..(THDCB,THSCB,XTR)..5F200507-201107

TYPE B:REFER 33-01

main90341-24006iKUN2#..(THDCB,THSCB,XTR)..5F200507-201108

TYPE C:REFER 33-01

main90341-24006iKUN2#..(DCB,SCB)..5F200808-200810

main90341-24006iKUN2#..(THDCB,THSCB,XTR)..5F200808-201108

TYPE D:REFER 33-01

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iKUN2#..4FC,5F200507-201108

sub90406-T0007

36128DEFLECTOR, BREATHER OIL

main36128-35060iKUN2#..4FC,5F200507-201108

36179PROTECTOR, TRANSFER CASE LOWER

main36179-0K010iKUN2#..4FC,5F200507-201108

sub36179-0K011

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-71010iKUN26..4FC200610-200810

main36407-71020iKUN2#..(DCB,SCB,XTR)..5F;KUN2#..LHD..(THDCB,THSCB)..5F200507-201108

main36407-71050iKUN26..DCB..5FC;KUN26..LHD..THDCB..5FC200808-201108

36407AWAY, 3(FOR TRANSFER BREATHER HOSE)

main90413-04008iKUN2#..4FC,5F200507-201108

8202

8401

876160K010CLAMP, COOLING UNIT CASE

main87616-0K010

9011908336

main90119-08336

9011908A29

main90119-08A29

9011910186

main90119-10186

90119T0222

main90119-T0222

9024107003

main90241-07003

9025011003

main90250-11003

9050120091

main90501-20091

9093003172

main90930-03172

90949T1015

main90949-T1015

90949T1024

main90949-T1024

9161160822

main91611-60822

47 parts on this diagram · 2 diagrams in section
