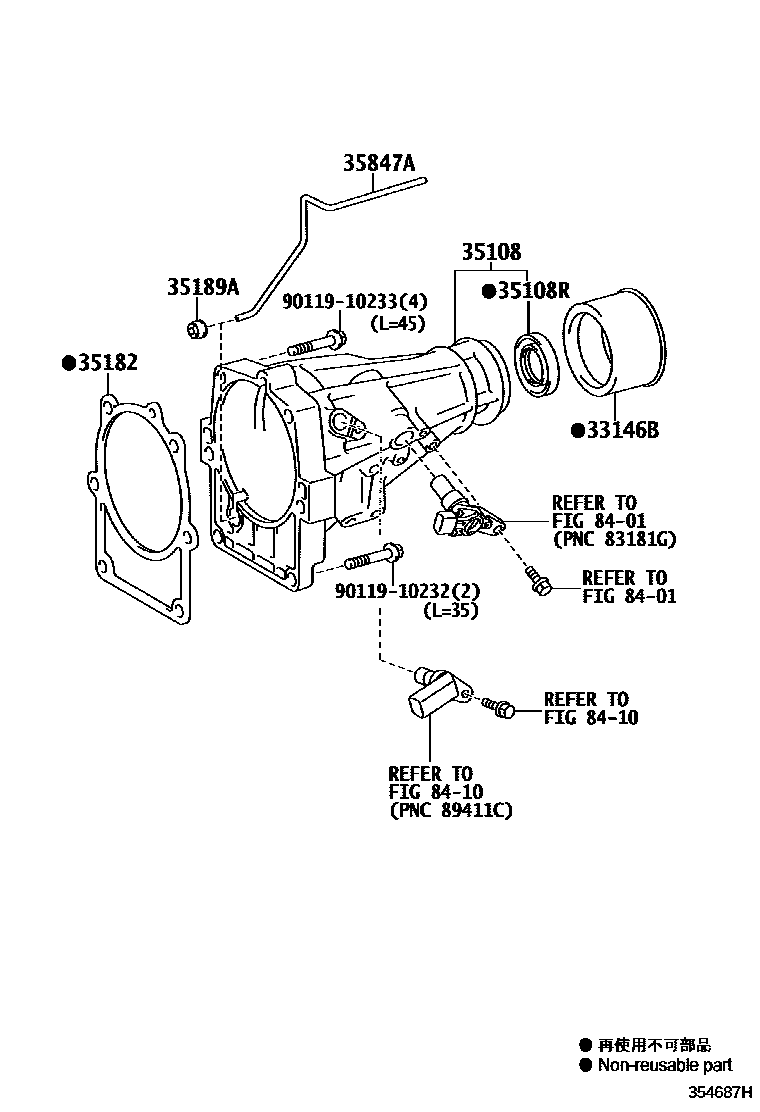

EXTENSION HOUSING (ATM)

33146BDEFLECTOR, EXTENSION HOUSING DUST

main33146-30020iKUN15..SR200507-200610

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-35060iKUN15..SR200507-200610

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40001iKUN15..SR200507-200610

35182GASKET, EXTENSION HOUSING (ATM)

main35182-28010iKUN15..SR200507-200610

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iKUN15..SR200507-200610

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iKUN15..SR200507-200610

8401

8410

9011910232

main90119-10232

9011910233

main90119-10233

10 parts on this diagram · 1 diagram in section
