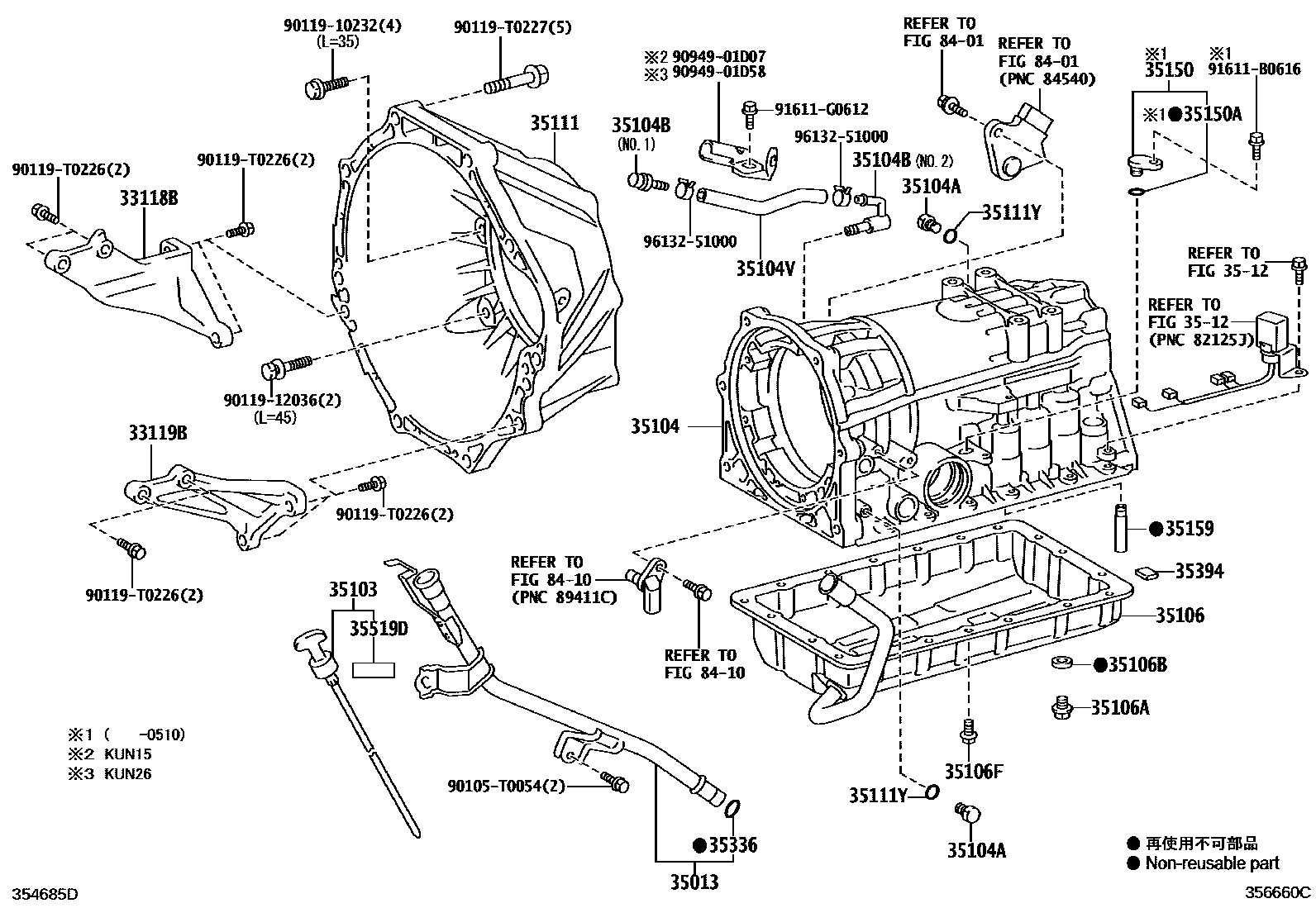

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A340E,A340F 0002 1A750F

33118BPLATE, STIFFENER, RH(ATM)

main33118-04020iKUN15,26..4FC200507-201108

33119BPLATE, STIFFENER, LH(ATM)

main33119-0K020iKUN15,26..4FC200507-201108

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-0K040iKUN15,26..4FC200507-200810

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-0K030iKUN15,26..4FC200507-200810

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26060iKUN15..HDCR200507-200510

sub35104-26061

main35104-26061iKUN15,26..4FC200510-200810

main35104-60221iKUN26..RHD..THDCB..5FC200808-201108

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iKUN15,26..4FC200507-201108

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iKUN15,26..4FC200507-200810

NO.2

main90930-03168iKUN26..RHD..THDCB..5FC200808-201108

main90930-03168iKUN15,26..4FC200507-200810

NO.1

35104VHOSE (FOR BREATHER PLUG)

main90445-11118iKUN15..SR200507-200610

main90445-11155iKUN26..RHD..THDCB..5FC200808-201108

main90445-11159iKUN26..4FC200610-200810

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-60180iKUN26..RHD..THDCB..5FC200808-201108

main35106-71030iKUN15,26..4FC200507-200810

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iKUN15,26..4FC200507-201108

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iKUN15,26..4FC200507-201108

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173iKUN26..5FC200808-201108

main90119-06513iKUN15,26..4FC200507-200810

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-35090iKUN15,26..4FC200507-200810

main35111-60160iKUN26..RHD..THDCB..5FC200808-201108

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iKUN15,26..4FC200507-201108

3512

35150PLUG ASSY, TRANSMISSION CASE

main35150-30010iKUN15..HDCR200507-200510

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09012iKUN15..HDCR200507-200510

35159GASKET, BRAKE DRUM

main35159-30010iKUN15,26..4FC200507-200810

main35159-60010iKUN26..RHD..THDCB..5FC200808-201108

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iKUN15,26..4FC200507-200810

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iKUN15,26..4FC200507-201108

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iKUN15,26..4FC200507-200810

8401

8410

90105T0054

main90105-T0054

9011910232

main90119-10232

9011912036

main90119-12036

90119T0226

main90119-T0226

90119T0227

main90119-T0227

9094901D07

main90949-01D07

9094901D58

main90949-01D58

91611B0616

main91611-B0616

91611G0612

main91611-G0612

9613251000

main96132-51000

33 parts on this diagram · 2 diagrams in section
