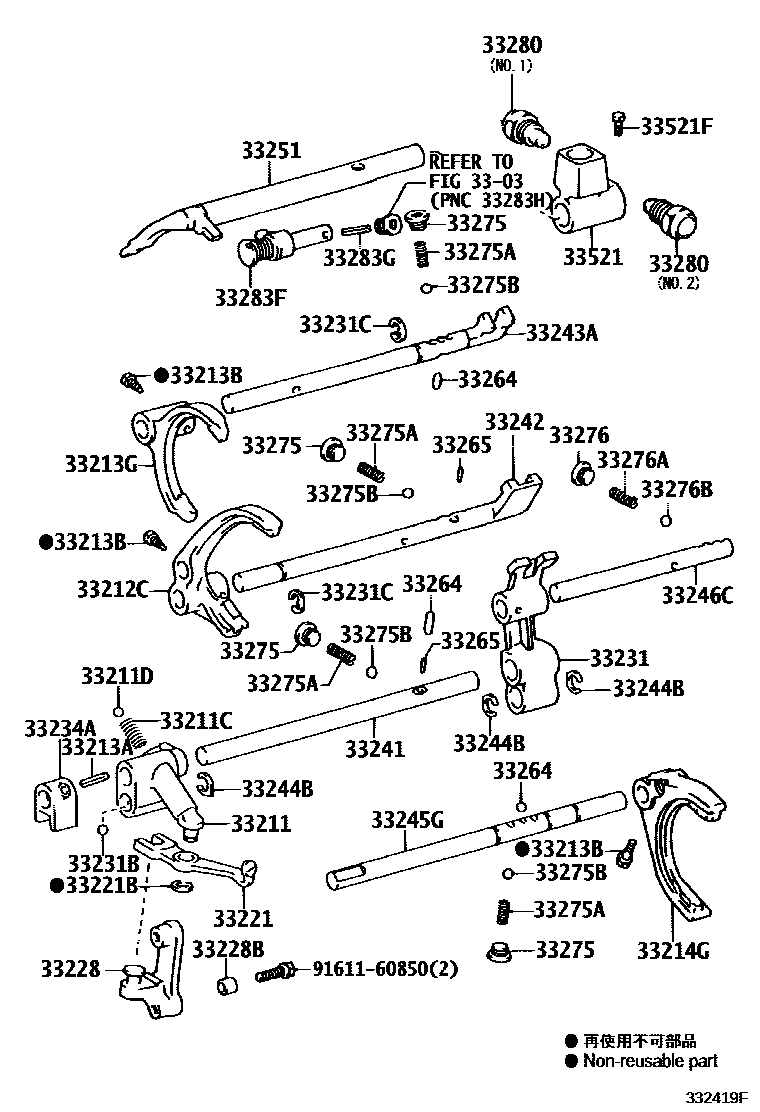

GEAR SHIFT FORK & LEVER SHAFT (MTM)
3303
33211CSPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN)
TYPE B:REFER 33-01
TYPE D:REFER 33-01
TYPE C:REFER 33-01
TYPE B:REFER 33-01
33211DBALL(FOR REVERSE SHIFT FORK)
OD=9.52,STEEL,TYPE B:REFER 33-01
OD=9.52,STEEL
OD=9.52,STEEL,TYPE C:REFER 33-01
OD=9.52,STEEL,TYPE B:SEE 33-01,(J)
OD=9.52,STEEL,TYPE D:REFER 33-01
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
TYPE B:SEE 33-01,(J)
TYPE B:REFER 33-01
TYPE C:REFER 33-01
TYPE D:REFER 33-01
33213BBOLT(FOR SHIFT FORK SET)
TYPE B:REFER 33-01
TYPE C:REFER 33-01
TYPE D:REFER 33-01
33213GFORK, GEAR SHIFT, NO.2
sub33213-0K011
sub33213-35034
TYPE B:REFER 33-01
TYPE C:REFER 33-01
TYPE D:REFER 33-01
33221BRING, E(FOR REVERSE SHIFT ARM)
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33231HEAD, REVERSE SHIFT
33231BBALL, REVERSE SHIFT RESTRICT
33231CRING(FOR REVERSE SHIFT HEAD)
33242SHAFT, GEAR SHIFT FORK, NO.1
TYPE C:REFER 33-01
sub33242-71010
TYPE B:REFER 33-01
TYPE D:REFER 33-01
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
TYPE C:REFER 33-01
sub33245-71010
TYPE B:REFER 33-01
TYPE D:REFER 33-01
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8,TYPE C:REFER 33-01
L=11.5,OD=4.8,TYPE B:REFER 33-01
L=11.5,OD=4.8
L=11.5,OD=4.8,TYPE D:REFER 33-01
L=11.5,OD=4.8,TYPE B:REFER 33-01
OD=9.52,STEEL
L=21.6,PIN
L=13.6,OD=9.5
33265PIN, SHIFT INTERLOCK, NO.2
L=11.1,OD=4.8
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=20.2
L=33.5
L=33.8,TYPE C:REFER 33-01
L=33.8,TYPE B:REFER 33-01
L=33.8
L=33.8,TYPE D:REFER 33-01
33275BBALL, SHAFT DETENT
TYPE B:REFER 33-01
TYPE C:REFER 33-01
TYPE B:SEE 33-01,(J)
TYPE D:REFER 33-01
33276SEAT, SHIFT DETENT BALL SPRING, NO.2
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33276BBALL, SHIFT DETENT, NO.2
33280PIN ASSY, REVERSE RESTRICT
T/P B:SEE 33-01,NO.1
T/P C:SEE 33-01,NO.1
T/P D:SEE 33-01,NO.1
NO.1
T/P B:SEE 33-01,NO.1
T/P C:SEE 33-01,NO.1
T/P D:SEE 33-01,NO.1
NO.1
T/P B:SEE 33-01,NO.2
NO.2
T/P D:SEE 33-01,NO.2
T/P C:SEE 33-01,NO.2
T/P C:SEE 33-01,NO.2
T/P B:SEE 33-01,NO.2
NO.2
T/P D:SEE 33-01,NO.2
NO.1
NO.2
33283FPIN, REVERSE RESTRICT
TYPE B:REFER 33-01
TYPE C:REFER 33-01
TYPE D:REFER 33-01
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
TYPE C:REFER 33-01
TYPE B:REFER 33-01
TYPE B:SEE 33-01,(J)
TYPE D:REFER 33-01
33521HOUSING, SHIFT LEVER
sub33521-0K260
sub33521-0K270
sub33521-35071
TYPE B:REFER 33-01
TYPE B:REFER 33-01
TYPE D:REFER 33-01
TYPE D:REFER 33-01
TYPE D:REFER 33-01
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
TYPE C:REFER 33-01
(J)
TYPE B:REFER 33-01
TYPE D:REFER 33-01
(L)
9161160850
main91611-60850
38 parts on this diagram · 2 diagrams in section
