TRANSMISSION GEAR (MTM)

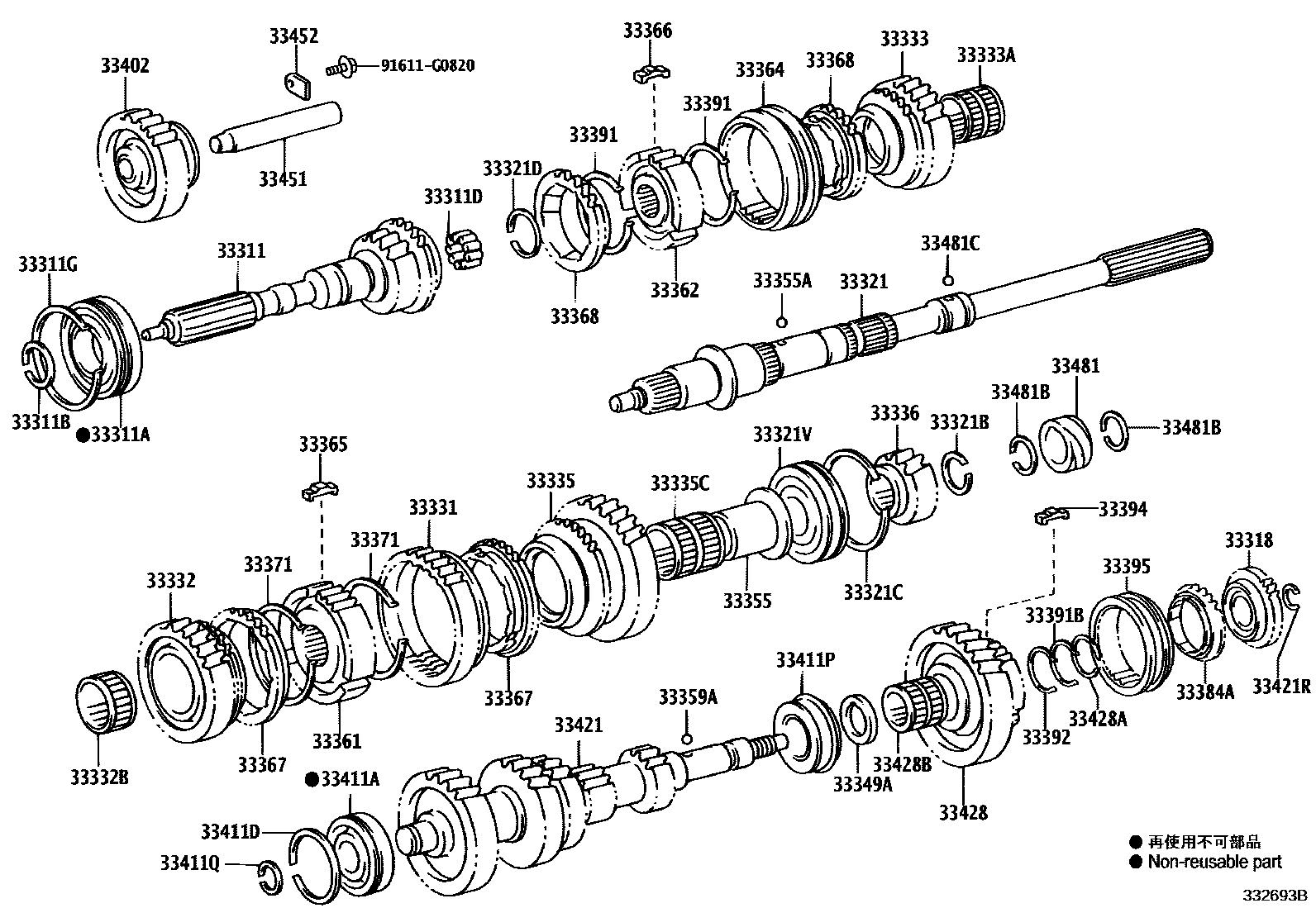

Parts diagram
33311SHAFT, INPUT
main33301-0K010i200507-201108
TYPE C:REFER 33-01
sub33301-0K090
main33301-0K010i200610-200810
sub33301-0K090
main33301-0K030i200507-201107
TYPE B:REFER 33-01
sub33301-0K070
main33301-0K050i200808-201108
TYPE D:REFER 33-01
sub33301-0K052
sub90311-T0094
main33301-0W060i200507-200608
sub33301-35080
main33301-35080i200507-200610
33311ABEARING (FOR INPUT SHAFT FRONT)
main90363-32024i200507-200610
main90363-T0010i200610-200810
sub90363-T0048
main90363-T0010i200507-201108
TYPE C:REFER 33-01
sub90363-T0048
main90363-T0010i200808-201108
TYPE D:REFER 33-01
sub90363-T0048
main90363-T0021i200507-201107
TYPE B:REFER 33-01
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-30214i200507-200610
T=2.05,MARK 0
main90520-30215i200507-200610
T=2.10,MARK 1
main90520-30216i200507-200610
T=2.15,MARK 2
main90520-30217i200507-200610
T=2.20,MARK 3
main90520-30218i200507-200610
T=2.25,MARK 4
main90520-30219i200507-200610
T=2.30,MARK 5
main90520-38008i200808-201108
T=2.10,MARK A,TYPE D:REFER 33-01
main90520-38008i200507-201108
T=2.10,MARK A,TYPE C:REFER 33-01
main90520-38008i200610-200810
T=2.10,MARK A
main90520-38009i200507-201108
T=2.15,MARK B,TYPE C:REFER 33-01
main90520-38009i200610-200810
T=2.15,MARK B
main90520-38009i200808-201108
T=2.15,MARK B,TYPE D:REFER 33-01
main90520-38010i200610-200810
T=2.20,MARK C
main90520-38010i200808-201108
T=2.20,MARK C,TYPE D:REFER 33-01
main90520-38010i200507-201108
T=2.20,MARK C,TYPE C:REFER 33-01
main90520-38011i200507-201108
T=2.25,MARK D,TYPE C:REFER 33-01
main90520-38011i200610-200810
T=2.25,MARK D
main90520-38011i200808-201108
T=2.25,MARK D,TYPE D:REFER 33-01
main90520-38012i200808-201108
T=2.30,MARK E,TYPE D:REFER 33-01
main90520-38012i200507-201108
T=2.30,MARK E,TYPE C:REFER 33-01
main90520-38012i200610-200810
T=2.30,MARK E
main90520-38013i200610-200810
T=2.35,MARK F
main90520-38013i200808-201108
T=2.35,MARK F,TYPE D:REFER 33-01
main90520-38013i200507-201108
T=2.35,MARK F,TYPE C:REFER 33-01
main90520-38014i200610-200810
T=2.40,MARK G
main90520-38014i200507-201108
T=2.40,MARK G,TYPE C:REFER 33-01
main90520-38014i200808-201108
T=2.40,MARK G,TYPE D:REFER 33-01
main90520-T0049i200507-201107
T=2.10,MARK A,TYPE B:REFER 33-01
main90520-T0050i200507-201107
T=2.15,MARK B,TYPE B:REFER 33-01
main90520-T0051i200507-201107
T=2.20,MARK C,TYPE B:REFER 33-01
main90520-T0052i200507-201107
T=2.25,MARK D,TYPE B:REFER 33-01
main90520-T0053i200507-201107
T=2.30,MARK E,TYPE B:REFER 33-01
main90520-T0054i200507-201107
T=2.35,MARK F,TYPE B:REFER 33-01
main90520-T0055i200507-201107
T=2.40,MARK G,TYPE B:REFER 33-01
33311DBEARING, INPUT SHAFT
main90361-06002i200507-200610
main90364-25012i200507-200510
TYPE C:REFER 33-01
main90364-T0014i200610-200810
main90364-T0014i200510-201108
TYPE C:REFER 33-01
main90364-T0019i200507-201107
TYPE B:REFER 33-01
main90364-T0024i200808-201108
TYPE D:REFER 33-01
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-76002i200507-200610
main90520-T0037i200507-201108
TYPE C:REFER 33-01
sub90520-T0284
main90520-T0037i200610-200810
sub90520-T0284
main90520-T0038i200808-201108
TYPE D:REFER 33-01
sub90520-T0285
main90520-T0040i200507-201107
TYPE B:REFER 33-01
33318PIECE, GEAR SPLINE, NO.5
main33318-0K010i200610-200810
sub33318-0K060
main33318-0K010i200507-201108
TYPE C:REFER 33-01
sub33318-0K060
main33318-0K020i200507-200608
sub33318-71010
main33318-0K030i200507-201107
TYPE B:REFER 33-01
main33318-0K040i200808-201108
TYPE D:REFER 33-01
main33318-71010i200507-200610
33321SHAFT, OUTPUT
main33321-0B020i200507-200608
sub33321-35092
main33321-0K010i200507-201108
TYPE C:REFER 33-01
sub33321-0K130
main33321-0K010i200808-200810
sub33321-0K130
main33321-0K020i200810-201108
TYPE C:REFER 33-01
sub33321-0K120
main33321-0K020i200610-200810
sub33321-0K120
main33321-0K040i200507-201107
TYPE B:REFER 33-01
sub33321-0K041
main33321-0K050i200608-201107
TYPE B:REFER 33-01
sub33321-0K051
main33321-0K060i200808-201108
TYPE D:REFER 33-01
sub33321-0K061
main33321-0K070i200808-201108
TYPE D:REFER 33-01
sub33321-0K071
main33321-35092i200507-200610
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
main90520-25005i200507-200610
T=2.67-2.72,MARK A
main90520-25006i200507-200610
T=2.73-2.78,MARK B
main90520-25009i200507-200610
T=2.79-2.84,MARK C
main90520-25010i200507-200610
T=2.85-2.90,MARK D
main90520-25011i200507-200610
T=2.91-2.96,MARK E
main90520-25012i200507-200610
T=2.97-3.02,MARK F
main90520-25013i200507-200610
T=3.03-3.08,MARK G
main90520-25014i200507-200610
T=3.09-3.14,MARK H
main90520-25015i200507-200610
T=3.15-3.20,MARK J
main90520-25016i200507-200610
T=3.21-3.26,MARK K
main90520-25017i200507-200610
T=3.27-3.32,MARK L
main90520-28031i200507-200902
T=2.65,MARK A,TYPE B:REFER 33-01
main90520-28031i200610-200810
T=2.65,MARK A
main90520-28031i200507-201108
T=2.65,MARK A,TYPE C:REFER 33-01
main90520-28031i200808-201108
T=2.65,MARK A,TYPE D:REFER 33-01
main90520-28032i200507-200902
T=2.70,MARK B,TYPE B:REFER 33-01
main90520-28032i200507-201108
T=2.70,MARK B,TYPE C:REFER 33-01
main90520-28032i200808-201108
T=2.70,MARK B,TYPE D:REFER 33-01
main90520-28032i200610-200810
T=2.70,MARK B
main90520-28033i200507-201108
T=2.75,MARK C,TYPE C:REFER 33-01
main90520-28033i200610-200810
T=2.75,MARK C
main90520-28033i200507-200902
T=2.75,MARK C,TYPE B:REFER 33-01
main90520-28033i200808-201108
T=2.75,MARK C,TYPE D:REFER 33-01
main90520-28034i200610-200810
T=2.80,MARK D
main90520-28034i200507-200902
T=2.80,MARK D,TYPE B:REFER 33-01
main90520-28034i200507-201108
T=2.80,MARK D,TYPE C:REFER 33-01
main90520-28034i200808-201108
T=2.80,MARK D,TYPE D:REFER 33-01
main90520-28035i200507-201108
T=2.85,MARK E,TYPE C:REFER 33-01
main90520-28035i200507-200902
T=2.85,MARK E,TYPE B:REFER 33-01
main90520-28035i200610-200810
T=2.85,MARK E
main90520-28035i200808-201108
T=2.85,MARK E,TYPE D:REFER 33-01
main90520-28037i200507-201108
T=2.90,MARK F,TYPE C:REFER 33-01
main90520-28037i200507-200902
T=2.90,MARK F,TYPE B:REFER 33-01
main90520-28037i200610-200810
T=2.90,MARK F
main90520-28037i200808-201108
T=2.90,MARK F,TYPE D:REFER 33-01
main90520-28039i200610-200810
T=2.95,MARK G
main90520-28039i200507-201108
T=2.95,MARK G,TYPE C:REFER 33-01
main90520-28039i200507-200902
T=2.95,MARK G,TYPE B:REFER 33-01
main90520-28039i200808-201108
T=2.95,MARK G,TYPE D:REFER 33-01
main90520-28042i200507-201108
T=3.00,MARK H,TYPE C:REFER 33-01
main90520-28042i200507-200902
T=3.00,MARK H,TYPE B:REFER 33-01
main90520-28042i200610-200810
T=3.00,MARK H
main90520-28042i200808-201108
T=3.00,MARK H,TYPE D:REFER 33-01
main90520-28043i200507-201108
T=3.05,MARK J,TYPE C:REFER 33-01
main90520-28043i200507-200902
T=3.05,MARK J,TYPE B:REFER 33-01
main90520-28043i200610-200810
T=3.05,MARK J
main90520-28043i200808-201108
T=3.05,MARK J,TYPE D:REFER 33-01
main90520-28045i200507-201108
T=3.10,MARK K,TYPE C:REFER 33-01
main90520-28045i200507-200902
T=3.10,MARK K,TYPE B:REFER 33-01
main90520-28045i200610-200810
T=3.10,MARK K
main90520-28045i200808-201108
T=3.10,MARK K,TYPE D:REFER 33-01
main90520-28046i200507-200902
T=3.15,MARK L,TYPE B:REFER 33-01
main90520-28046i200808-201108
T=3.15,MARK L,TYPE D:REFER 33-01
main90520-28046i200507-201108
T=3.15,MARK L,TYPE C:REFER 33-01
main90520-28046i200610-200810
T=3.15,MARK L
main90520-28047i200808-201108
T=3.20,MARK M,TYPE D:REFER 33-01
main90520-28047i200507-200902
T=3.20,MARK M,TYPE B:REFER 33-01
main90520-28047i200507-201108
T=3.20,MARK M,TYPE C:REFER 33-01
main90520-28047i200610-200810
T=3.20,MARK M
main90520-28048i200507-201108
T=3.25,MARK N,TYPE C:REFER 33-01
main90520-28048i200507-200902
T=3.25,MARK N,TYPE B:REFER 33-01
main90520-28048i200808-201108
T=3.25,MARK N,TYPE D:REFER 33-01
main90520-28048i200610-200810
T=3.25,MARK N
main90520-28049i200610-200810
T=3.30,MARK P
main90520-28049i200808-201108
T=3.30,MARK P,TYPE D:REFER 33-01
main90520-28049i200507-200902
T=3.30,MARK P,TYPE B:REFER 33-01
main90520-28049i200507-201108
T=3.30,MARK P,TYPE C:REFER 33-01
main90520-28050i200507-201108
T=3.35,MARK Q,TYPE C:REFER 33-01
main90520-28050i200610-200810
T=3.35,MARK Q
main90520-28050i200507-200902
T=3.35,MARK Q,TYPE B:REFER 33-01
main90520-28050i200808-201108
T=3.35,MARK Q,TYPE D:REFER 33-01
main90520-28051i200507-201108
T=3.40,MARK R,TYPE C:REFER 33-01
main90520-28051i200610-200810
T=3.40,MARK R
main90520-28051i200507-200902
T=3.40,MARK R,TYPE B:REFER 33-01
main90520-28051i200808-201108
T=3.40,MARK R,TYPE D:REFER 33-01
main90520-28052i200507-200902
T=3.45,MARK S,TYPE B:REFER 33-01
main90520-28052i200507-201108
T=3.45,MARK S,TYPE C:REFER 33-01
main90520-28052i200808-201108
T=3.45,MARK S,TYPE D:REFER 33-01
main90520-28052i200610-200810
T=3.45,MARK S
main90520-T0110i200902-201107
T=2.65,MARK A,TYPE B:REFER 33-01
main90520-T0111i200902-201107
T=2.70,MARK B,TYPE B:REFER 33-01
main90520-T0112i200902-201107
T=2.75,MARK C,TYPE B:REFER 33-01
main90520-T0113i200902-201107
T=2.80,MARK D,TYPE B:REFER 33-01
main90520-T0114i200902-201107
T=2.85,MARK E,TYPE B:REFER 33-01
main90520-T0115i200902-201107
T=2.90,MARK F,TYPE B:REFER 33-01
main90520-T0116i200902-201107
T=2.95,MARK G,TYPE B:REFER 33-01
main90520-T0117i200902-201107
T=3.00,MARK H,TYPE B:REFER 33-01
main90520-T0118i200902-201107
T=3.05,MARK J,TYPE B:REFER 33-01
main90520-T0119i200902-201107
T=3.10,MARK K,TYPE B:REFER 33-01
main90520-T0120i200902-201107
T=3.15,MARK L,TYPE B:REFER 33-01
main90520-T0121i200902-201107
T=3.20,MARK M,TYPE B:REFER 33-01
main90520-T0122i200902-201107
T=3.25,MARK N,TYPE B:REFER 33-01
main90520-T0123i200902-201107
T=3.30,MARK P,TYPE B:REFER 33-01
main90520-T0124i200902-201107
T=3.35,MARK Q,TYPE B:REFER 33-01
main90520-T0125i200902-201107
T=3.40,MARK R,TYPE B:REFER 33-01
main90520-T0126i200902-201107
T=3.45,MARK S,TYPE B:REFER 33-01
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
main90520-71221i200507-200610
T=1.65,ID=71.1
main90520-88001i200808-201108
T=2.36-2.46,TYPE D:REFER 33-01
main90520-T0038i200507-201108
T=1.7,TYPE C:REFER 33-01
sub90520-T0285
main90520-T0038i200610-200810
T=1.7
sub90520-T0285
main90520-T0041i200507-201107
T=2.41,TYPE B:REFER 33-01
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
main90520-28010i200507-200610
T=1.85-1.90,MARK D-1
main90520-28011i200507-200610
T=1.95-2.00,MARK E-1
main90520-28012i200507-200610
T=1.75-1.80,MARK C-1
main90520-28013i200507-200610
T=2.05-2.10,MARK F-1
main90520-28245i200507-200610
T=1.80-1.85,MARK D
main90520-28246i200507-200610
T=1.90-1.95,MARK E
main90520-28248i200507-200610
T=2.00-2.05,MARK F
main90520-30014i200507-201108
T=1.80,MARK A,TYPE C:REFER 33-01
main90520-30014i200610-200810
T=1.80,MARK A
main90520-30014i200808-201108
T=1.80,MARK A,TYPE D:REFER 33-01
main90520-30015i200507-201108
T=1.85,MARK B,TYPE C:REFER 33-01
main90520-30015i200610-200810
T=1.85,MARK B
main90520-30015i200808-201108
T=1.85,MARK B,TYPE D:REFER 33-01
main90520-30016i200507-201108
T=1.90,MARK C,TYPE C:REFER 33-01
main90520-30016i200610-200810
T=1.90,MARK C
main90520-30016i200808-201108
T=1.90,MARK C,TYPE D:REFER 33-01
main90520-30017i200808-201108
T=1.95,MARK D,TYPE D:REFER 33-01
main90520-30017i200507-201108
T=1.95,MARK D,TYPE C:REFER 33-01
main90520-30017i200610-200810
T=1.95,MARK D
main90520-30018i200610-200810
T=2.00,MARK E
main90520-30018i200808-201108
T=2.00,MARK E,TYPE D:REFER 33-01
main90520-30018i200507-201108
T=2.00,MARK E,TYPE C:REFER 33-01
main90520-30019i200507-201108
T=2.05,MARK F,TYPE C:REFER 33-01
main90520-30019i200808-201108
T=2.05,MARK F,TYPE D:REFER 33-01
main90520-30019i200610-200810
T=2.05,MARK F
main90520-30020i200507-201108
T=2.10,MARK G,TYPE C:REFER 33-01
main90520-30020i200610-200810
T=2.10,MARK G
main90520-30020i200808-201108
T=2.10,MARK G,TYPE D:REFER 33-01
main90520-T0063i200507-201107
T=1.80,MARK A,TYPE B:REFER 33-01
main90520-T0064i200507-201107
T=1.85,MARK B,TYPE B:REFER 33-01
main90520-T0065i200507-201107
T=1.90,MARK C,TYPE B:REFER 33-01
main90520-T0066i200507-201107
T=1.95,MARK D,TYPE B:REFER 33-01
main90520-T0067i200507-201107
T=2.00,MARK E,TYPE B:REFER 33-01
main90520-T0068i200507-201107
T=2.05,MARK F,TYPE B:REFER 33-01
main90520-T0069i200507-201107
T=2.10,MARK G,TYPE B:REFER 33-01
33321VBEARING (FOR OUTPUT SHAFT CENTER)
main90363-30059i200507-200610
main90363-T0011i200507-201108
TYPE C:REFER 33-01
sub90363-T0047
main90363-T0011i200610-200810
sub90363-T0047
main90363-T0011i200808-201108
TYPE D:REFER 33-01
sub90363-T0047
main90363-T0022i200507-201107
TYPE B:REFER 33-01
33331GEAR, REVERSE
main33331-0K010i200610-200810
sub33331-09005
sub33331-09015
main33331-0K010i200507-201108
TYPE C:REFER 33-01
sub33331-09005
sub33331-09015
main33331-0K020i200507-200608
sub33331-71010
main33331-0K030i200507-201107
TYPE B:REFER 33-01
sub33331-09025
sub33331-09035
main33331-0K040i200808-201108
TYPE D:REFER 33-01
main33331-35062i200507-200610
sub33331-71010
33332GEAR, 2ND
main33033-0K010i200507-201108
TYPE C:REFER 33-01
sub33033-0K070
main33033-0K010i200610-200810
sub33033-0K070
main33033-0K030i200507-201107
TYPE B:REFER 33-01
main33033-0K050i200808-201108
TYPE D:REFER 33-01
main33033-0W010i200507-200608
sub33033-35011
main33033-35011i200507-200610
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
main90364-38002i200507-200610
main90364-T0011i200507-201108
TYPE C:REFER 33-01
main90364-T0011i200610-200810
main90364-T0016i200507-200608
sub90364-38002
main90364-T0020i200507-201107
TYPE B:REFER 33-01
main90364-T0026i200808-201108
TYPE D:REFER 33-01
33333GEAR, 3RD
main33034-0K010i200507-201108
TYPE C:REFER 33-01
sub33034-0K130
main33034-0K010i200610-200810
sub33034-0K130
main33034-0K040i200507-201107
TYPE B:REFER 33-01
main33034-0K050i200808-201108
TYPE D:REFER 33-01
sub33034-0K040
main33034-0W070i200507-200608
sub33034-35100
main33034-35100i200507-200610
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
main90364-35005i200507-200610
main90364-T0012i200507-201108
TYPE C:REFER 33-01
main90364-T0012i200610-200810
main90364-T0017i200507-200608
sub90364-35005
main90364-T0022i200507-201107
TYPE B:REFER 33-01
main90364-T0027i200808-201108
TYPE D:REFER 33-01
33335GEAR, 1ST
main33032-0K020i200507-201108
TYPE C:REFER 33-01
sub33032-0K021
main33032-0K020i200610-200810
sub33032-0K021
main33032-0K040i200507-201107
TYPE B:REFER 33-01
sub33032-0K041
main33032-0K070i200808-201108
TYPE D:REFER 33-01
sub33032-0K071
main33032-0W050i200507-200608
sub33032-26020
main33032-26020i200507-200610
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
main90364-39011i200507-200610
main90364-T0010i200507-201108
TYPE C:REFER 33-01
main90364-T0010i200610-200810
main90364-T0015i200507-200608
sub90364-39011
main90364-T0021i200507-201107
TYPE B:REFER 33-01
main90364-T0025i200808-201108
TYPE D:REFER 33-01
33336GEAR, 5TH
main33336-0K010i200610-200810
sub33336-0K011
main33336-0K010i200507-201108
TYPE C:REFER 33-01
sub33336-0K011
main33336-0K020i200507-201107
TYPE B:REFER 33-01
sub33336-0K110
main33336-0K030i200808-201108
TYPE D:REFER 33-01
sub33336-0K031
main33336-0W030i200507-200608
sub33336-28010
main33336-28010i200507-200610
33349WASHER, 5TH GEAR THRUST
main33346-0K020i200901-200911
TYPE B:REFER 33-01
main33346-0K020i200911-201107
TYPE B:SEE 33-01,(L)
main33346-0K020i201007-201108
TYPE D:REFER 33-01,TYPE C:REFER 33-01
main33346-35020i200610-200708
TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01
sub33346-71010
main33346-35020i200507-200708
TYPE C:REFER 33-01
sub33346-71010
main33346-35020i200507-200712
TYPE B:REFER 33-01
sub33346-71010
main33346-71010i200712-200901
TYPE B:REFER 33-01
main33346-71010i200808-201007
TYPE D:REFER 33-01
main33346-71010i200708-201007
TYPE C:REFER 33-01
main33346-71010i200911-201107
TYPE B:SEE 33-01,(J)
main33346-71010i200708-200808
TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01
main33346-71010i200708-200810
33349AWASHER, 4TH GEAR
main33349-0K010i200507-200608
T=8.0
main33349-35010i200507-200610
OD=43
33355RACE, 1ST GEAR BEARING INNER
main33355-0W010i200507-200608
sub33355-35020
main33355-35020i200507-200610
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
main90360-06004i200507-200610
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
main90360-06004i200507-200610
33361HUB, TRANSMISSION CLUTCH, NO.1
main33361-0K020i200610-200810
sub33361-0K021
main33361-0K020i200507-201108
TYPE C:REFER 33-01
sub33361-0K021
main33361-0K030i200507-201107
TYPE B:REFER 33-01
sub33361-0K031
main33361-0K050i200808-201108
TYPE D:REFER 33-01
main33361-0W010i200507-200608
sub33361-35020
main33361-35020i200507-200610
33362HUB, TRANSMISSION CLUTCH, NO.2
main33362-0K010i200507-200510
sub33362-0W010
main33362-0K020i200610-200810
sub33362-0K050
main33362-0K020i200507-201108
TYPE C:REFER 33-01
sub33362-0K050
main33362-0K020i200808-201108
TYPE D:REFER 33-01
sub33362-0K050
main33362-0K030i200507-201107
TYPE B:REFER 33-01
sub33362-0K031
main33362-0W010i200510-200608
sub33362-35040
main33362-35040i200507-200610
33364SLEEVE, TRANSMISSION HUB, NO.2
main33364-0K010i200507-201108
TYPE C:REFER 33-01
sub33364-0K060
main33364-0K010i200610-200810
sub33364-0K060
main33364-0K020i200507-201107
TYPE B:REFER 33-01
main33364-0K030i200808-201108
TYPE D:REFER 33-01
main33364-0W010i200507-200608
sub33364-26020
main33364-26020i200507-200610
33365KEY, SYNCHROMESH SHIFTING, NO.1
main33365-0K010i200507-201107
TYPE B:REFER 33-01
main33365-0K020i200908-201108
TYPE C:REFER 33-01
main33365-35021i200507-200610
main33365-35060i200507-200908
TYPE C:REFER 33-01
main33365-35060i200610-200810
main33365-35060i200808-201108
TYPE D:REFER 33-01
33366KEY, SYNCHROMESH SHIFTING, NO.2
main33366-0K010i200507-201107
TYPE B:REFER 33-01
main33366-0K020i200908-201108
TYPE C:REFER 33-01
main33366-35041i200507-200610
main33366-35050i200507-200908
TYPE C:REFER 33-01
main33366-35050i200808-201108
TYPE D:REFER 33-01
main33366-35050i200610-200810
33367RING, SYNCHRONIZER, NO.1
main33368-20012i200507-200610
33368RING, SYNCHRONIZER, NO.2
main33367-14010i200507-200610
main33368-0K010i200507-201108
*182
main33368-0K010i200610-200810
3RD GEAR SIDE
main33368-0K020i200507-201108
*183
sub33368-0K220
main33368-0K020i200610-200810
4TH GEAR SIDE
sub33368-0K220
main33368-0K030i200901-201108
*189
main33368-0K040i200901-201108
*190
main33368-0K050i200811-201107
*178
main33368-0K060i200811-201107
*179
sub33368-35090
main33368-35050i200808-200901
*189
sub33368-35080
main33368-35050i200507-200811
*178
sub33368-35080
main33368-35070i200507-200811
*179
sub33368-35090
main33368-35070i200808-200901
*190
sub33368-35090
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
main33371-14031i200507-200610
33384ARING, SYNCHRONIZER, OUTER NO.3
main33384-60090i200610-200810
sub33384-60091
main33384-60090i200507-201107
TYPE B:REFER 33-01
sub33384-60091
main33384-60090i200507-201108
TYPE C:REFER 33-01
sub33384-60091
main33384-60090i200808-201108
TYPE D:REFER 33-01
sub33384-60091
main33384-71010i200507-200610
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
main33371-14010i200507-200610
33391BSPRING, SYNCHROMESH SHIFTING KEY, NO.4
main33392-71010i200507-200610
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
main33392-60020i200610-200810
NO.1
main33392-60020i200507-201108
T/P C:SEE 33-01,NO.1
main33392-60020i200507-201107
T/P B:SEE 33-01,NO.1
main33392-60020i200808-201108
T/P D:SEE 33-01,NO.1
main33392-60030i200507-201107
T/P B:SEE 33-01,NO.2
main33392-60030i200507-201108
T/P C:SEE 33-01,NO.2
main33392-60030i200610-200810
NO.2
main33392-60030i200808-201108
T/P D:SEE 33-01,NO.2
main33392-71020i200507-200610
33394KEY, SYNCHROMESH SHIFTING, NO.3
main33394-71010i200507-200610
33395SLEEVE, TRANSMISSION HUB, NO.3
main33395-0K010i200507-201108
TYPE C:REFER 33-01
sub33395-0K060
main33395-0K010i200610-200810
sub33395-0K060
main33395-0K020i200507-200608
sub33395-71010
main33395-0K040i200507-201107
TYPE B:REFER 33-01
main33395-0K050i200808-201108
TYPE D:REFER 33-01
main33395-71010i200507-200610
33402GEAR SUB-ASSY, REVERSE IDLER
main33402-0K010i200507-201108
TYPE C:REFER 33-01
sub33402-0K050
main33402-0K010i200610-200810
sub33402-0K050
main33402-0K020i200507-200608
sub33402-71010
main33402-0K030i200507-201107
TYPE B:REFER 33-01
sub33402-0K070
main33402-0K040i200808-201108
TYPE D:REFER 33-01
sub33402-0K060
main33402-71010i200507-200610
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
main90365-25023i200507-200610
main90365-25027i200507-200608
main90365-T0001i200610-200804
TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01
sub90365-T0005
main90365-T0001i200507-200804
TYPE C:REFER 33-01
sub90365-T0005
main90365-T0004i200507-201107
TYPE B:REFER 33-01
main90365-T0005i200804-200904
TYPE C:REFER 33-01
sub90365-T0006
main90365-T0005i200804-200808
TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01
sub90365-T0006
main90365-T0005i200804-200810
sub90365-T0006
main90365-T0005i200808-200904
TYPE D:REFER 33-01
sub90365-T0006
main90365-T0006i200904-201108
TYPE D:REFER 33-01,TYPE C:REFER 33-01
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
main90520-49222i200507-200610
T=1.07,OD=55.6
main90520-56002i200507-201108
T=1.07,OD=62,TYPE C:REFER 33-01
main90520-56002i200610-200810
T=1.07,OD=62
main90520-56002i200808-201108
T=1.07,OD=62,TYPE D:REFER 33-01
main90520-T0087i200507-201107
T=1.07,OD=62,TYPE B:REFER 33-01
33411PBEARING, COUNTERSHAFT CENTER
main90365-31006i200507-200610
main90365-T0002i200507-200904
TYPE C:REFER 33-01
sub90365-T0007
main90365-T0002i200610-200810
sub90365-T0007
main90365-T0002i200808-200904
TYPE D:REFER 33-01
sub90365-T0007
main90365-T0003i200507-201107
TYPE B:REFER 33-01
main90365-T0007i200904-201108
TYPE D:REFER 33-01,TYPE C:REFER 33-01
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
main90520-23057i200507-201108
T=2.10,MARK A,TYPE C:REFER 33-01
main90520-23057i200808-201108
T=2.10,MARK A,TYPE D:REFER 33-01
main90520-23057i200610-200810
T=2.10,MARK A
main90520-23057i200507-200902
T=2.10,MARK A,TYPE B:REFER 33-01
main90520-23058i200507-200902
T=2.15,MARK B,TYPE B:REFER 33-01
main90520-23058i200507-201108
T=2.15,MARK B,TYPE C:REFER 33-01
main90520-23058i200808-201108
T=2.15,MARK B,TYPE D:REFER 33-01
main90520-23058i200610-200810
T=2.15,MARK B
main90520-23059i200808-201108
T=2.20,MARK C,TYPE D:REFER 33-01
main90520-23059i200507-200902
T=2.20,MARK C,TYPE B:REFER 33-01
main90520-23059i200507-201108
T=2.20,MARK C,TYPE C:REFER 33-01
main90520-23059i200610-200810
T=2.20,MARK C
main90520-23060i200507-201108
T=2.25,MARK D,TYPE C:REFER 33-01
main90520-23060i200610-200810
T=2.25,MARK D
main90520-23060i200808-201108
T=2.25,MARK D,TYPE D:REFER 33-01
main90520-23060i200507-200902
T=2.25,MARK D,TYPE B:REFER 33-01
main90520-23061i200507-201108
T=2.30,MARK E,TYPE C:REFER 33-01
main90520-23061i200507-200902
T=2.30,MARK E,TYPE B:REFER 33-01
main90520-23061i200610-200810
T=2.30,MARK E
main90520-23061i200808-201108
T=2.30,MARK E,TYPE D:REFER 33-01
main90520-23062i200507-201108
T=2.35,MARK F,TYPE C:REFER 33-01
main90520-23062i200507-200902
T=2.35,MARK F,TYPE B:REFER 33-01
main90520-23062i200610-200810
T=2.35,MARK F
main90520-23062i200808-201108
T=2.35,MARK F,TYPE D:REFER 33-01
main90520-23089i200507-200610
T=2.10-2.15
main90520-23090i200507-200610
T=2.20-2.25
main90520-23115i200507-200610
T=2.05-2.10
main90520-23143i200507-200610
T=2.15-2.20
main90520-23144i200507-200610
T=2.25-2.30
main90520-23145i200507-200610
T=2.30-2.35
main90520-T0097i200902-201107
T=2.10,MARK A,TYPE B:REFER 33-01
main90520-T0098i200902-201107
T=2.15,MARK B,TYPE B:REFER 33-01
main90520-T0099i200902-201107
T=2.20,MARK C,TYPE B:REFER 33-01
main90520-T0100i200902-201107
T=2.25,MARK D,TYPE B:REFER 33-01
main90520-T0101i200902-201107
T=2.30,MARK E,TYPE B:REFER 33-01
main90520-T0102i200902-201107
T=2.35,MARK F,TYPE B:REFER 33-01
33421GEAR, COUNTER
main33421-0K010i200507-200708
TYPE C:REFER 33-01
sub33421-0K011
main33421-0K010i200610-200708
TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01
sub33421-0K011
main33421-0K011i200708-200808
TYPE C:REFER 33-01
sub33421-0K012
sub90365-T0005
main33421-0K011i200708-200808
TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01
sub33421-0K012
sub90365-T0005
main33421-0K012i200808-200810
sub33421-0K013
main33421-0K012i200810-201108
TYPE C:REFER 33-01
sub33421-0K013
main33421-0K030i200507-200608
sub33421-71050
main33421-0K060i200507-201107
TYPE B:REFER 33-01
sub33421-0K061
main33421-0K080i200808-201108
TYPE D:REFER 33-01
sub33421-0K081
main33421-71050i200507-200610
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
main90520-19008i200507-200610
T=2.85
main90520-19009i200507-200610
T=2.90
main90520-19010i200507-200610
T=2.95
main90520-19011i200507-200610
T=3.00
main90520-19012i200507-200610
T=3.05
main90520-19013i200507-200610
T=3.10
main90520-19014i200507-200610
T=3.15
main90520-22016i200507-201108
T=2.85,MARK A,T/P C:SEE 33-01,NO.1
main90520-22016i200610-200810
T=2.85,MARK A,NO.1
main90520-22016i200808-201108
T=2.85,MARK A,T/P D:SEE 33-01,NO.1
main90520-22016i200507-200902
T=2.85,MARK A,T/P B:SEE 33-01,NO.1
main90520-22017i200507-201108
T=2.90,MARK B,T/P C:SEE 33-01,NO.1
main90520-22017i200507-200902
T=2.90,MARK B,T/P B:SEE 33-01,NO.1
main90520-22017i200610-200810
T=2.90,MARK B,NO.1
main90520-22017i200808-201108
T=2.90,MARK B,T/P D:SEE 33-01,NO.1
main90520-22018i200507-201108
T=2.95,MARK C,T/P C:SEE 33-01,NO.1
main90520-22018i200610-200810
T=2.95,MARK C,NO.1
main90520-22018i200507-200902
T=2.95,MARK C,T/P B:SEE 33-01,NO.1
main90520-22018i200808-201108
T=2.95,MARK C,T/P D:SEE 33-01,NO.1
main90520-22019i200808-201108
T=3.00,MARK D,T/P D:SEE 33-01,NO.1
main90520-22019i200610-200810
T=3.00,MARK D,NO.1
main90520-22019i200507-201108
T=3.00,MARK D,T/P C:SEE 33-01,NO.1
main90520-22019i200507-200902
T=3.00,MARK D,T/P B:SEE 33-01,NO.1
main90520-22020i200507-200902
T=3.05,MARK E,T/P B:SEE 33-01,NO.1
main90520-22020i200507-201108
T=3.05,MARK E,T/P C:SEE 33-01,NO.1
main90520-22020i200610-200810
T=3.05,MARK E,NO.1
main90520-22020i200808-201108
T=3.05,MARK E,T/P D:SEE 33-01,NO.1
main90520-22021i200507-201108
T=3.10,MARK F,T/P C:SEE 33-01,NO.1
main90520-22021i200610-200810
T=3.10,MARK F,NO.1
main90520-22021i200507-200902
T=3.10,MARK F,T/P B:SEE 33-01,NO.1
main90520-22021i200808-201108
T=3.10,MARK F,T/P D:SEE 33-01,NO.1
main90520-22022i200507-200902
T=3.15,MARK G,T/P B:SEE 33-01,NO.1
main90520-22022i200808-201108
T=3.15,MARK G,T/P D:SEE 33-01,NO.1
main90520-22022i200810-201108
T=3.15,MARK G,T/P C:SEE 33-01,NO.1
main90520-22022i200507-200810
T=3.15,MARK G,NO.1
main90520-33021i200507-201107
T=1.00,T/P B:SEE 33-01,NO.2
main90520-33021i200507-201108
T=1.00,T/P C:SEE 33-01,NO.2
main90520-33021i200610-200810
T=1.00,NO.2
main90520-33021i200808-201108
T=1.00,T/P D:SEE 33-01,NO.2
main90520-T0127i200902-201107
T=2.85,MARK A,T/P B:SEE 33-01,NO.1
main90520-T0128i200902-201107
T=2.90,MARK B,T/P B:SEE 33-01,NO.1
main90520-T0129i200902-201107
T=2.95,MARK C,T/P B:SEE 33-01,NO.1
main90520-T0130i200902-201107
T=3.00,MARK D,T/P B:SEE 33-01,NO.1
main90520-T0131i200902-201107
T=3.05,MARK E,T/P B:SEE 33-01,NO.1
main90520-T0132i200902-201107
T=3.10,MARK F,T/P B:SEE 33-01,NO.1
main90520-T0133i200902-201107
T=3.15,MARK G,T/P B:SEE 33-01,NO.1
33428GEAR, COUNTERSHAFT 5TH
main33428-0K010i200507-201108
TYPE C:REFER 33-01
sub33428-0K011
main33428-0K010i200610-200810
sub33428-0K011
main33428-0K020i200507-200608
sub33428-71030
main33428-0K050i200507-201107
TYPE B:REFER 33-01
sub33428-0K051
main33428-0K060i200808-201108
TYPE D:REFER 33-01
sub33428-0K061
main33428-71030i200507-200610
33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)
main90520-34029i200507-200610
33428BBEARING (FOR COUNTER 5TH GEAR)
main90364-26002i200507-200610
main90364-T0013i200507-201108
TYPE C:REFER 33-01
main90364-T0013i200610-200810
main90364-T0018i200507-200608
sub90364-26002
main90364-T0023i200507-201107
TYPE B:REFER 33-01
main90364-T0028i200808-201108
TYPE D:REFER 33-01
33451SHAFT, REVERSE IDLER GEAR
main33451-0K010i200507-201108
TYPE C:REFER 33-01
main33451-0K010i200610-200810
main33451-0K020i200507-200608
sub33451-28011
main33451-0K030i200507-201107
TYPE B:REFER 33-01
main33451-0K040i200808-201108
TYPE D:REFER 33-01
main33451-28011i200507-200610
33452STOPPER, REVERSE IDLER GEAR SHAFT
main33452-0K010i200507-200608
main33452-36030i200507-200610
33481GEAR, SPEEDOMETER DRIVE (MTM)
main33481-22010i200507-200610
N=6,MARK 6X18-20
main33481-35070i200808-201107
N=11,MARK 11X28-30,TYPE B:REFER 33-01
main33481-35070i200808-201108
N=11,MARK 11X28-30,TYPE D:REFER 33-01
main33481-35070i200810-201108
N=11,MARK 11X28-30,TYPE C:REFER 33-01
main33481-35190i200608-200808
N=11,MARK 11X31-33,TYPE B:REFER 33-01
main33481-35190i200610-200810
N=11,MARK 11X31-33
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
main90520-26061i200507-200610
T=1.50,OD=31.3
main90520-28030i200608-200902
T=1.5,TYPE B:REFER 33-01
main90520-28030i200610-200810
T=1.5
main90520-28030i200808-201108
T=1.5,TYPE D:REFER 33-01
main90520-28030i200810-201108
T=1.5,TYPE C:REFER 33-01
main90520-T0134i200902-201107
T=1.5,TYPE B:REFER 33-01
33481CBALL, REVERSE SHIFT RESTRICT
main90360-06004i200608-201107
TYPE B:REFER 33-01
main90360-06004i200810-201108
TYPE C:REFER 33-01
main90360-06004i200507-200810
main90360-06004i200808-201108
TYPE D:REFER 33-01
91611G0820
main91611-G0820

54 parts on this diagram · 2 diagrams in section

TRANSMISSION GEAR (MTM) — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
