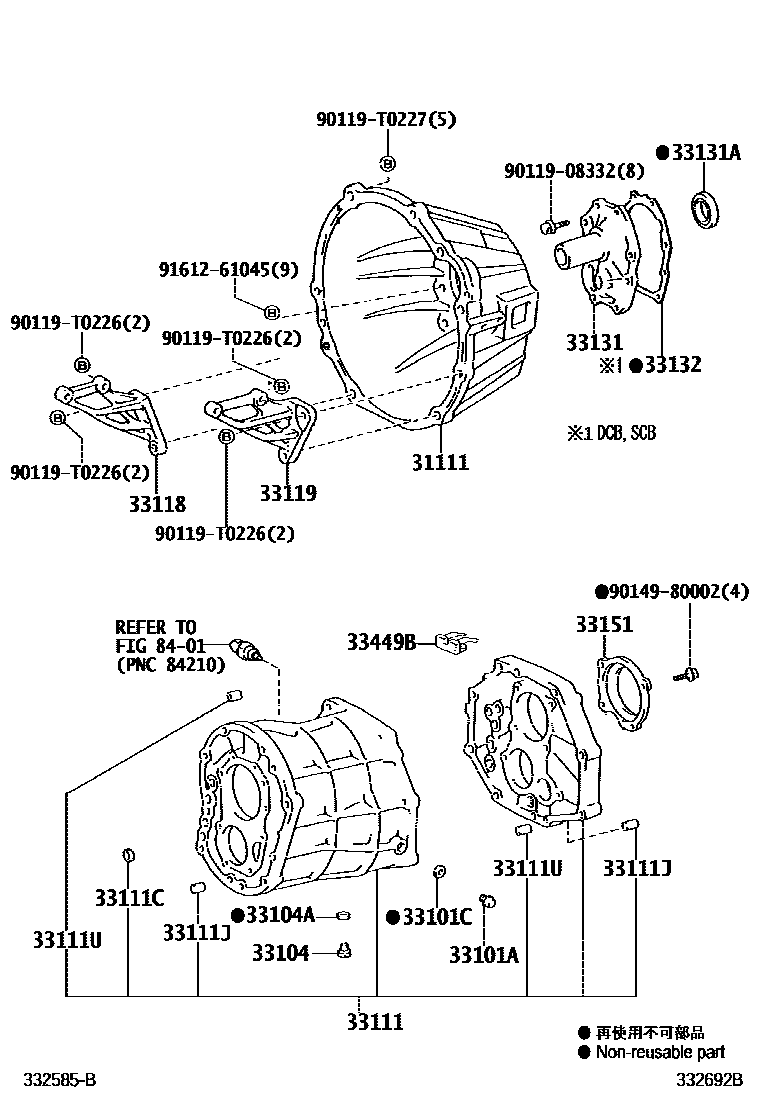

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G50 0002 1R151 0003 1R151,R151F

31111HOUSING, CLUTCH

main31111-0K010iKUN15,2#..(THDCB,THSCB,XTR)..5F200507-201108

TYPE C:REFER 33-01

main31111-0K010iKUN15..DCB,SCB200610-200810

main31111-0K060iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-201107

TYPE B:REFER 33-01

sub31111-0K061

main31111-0K090iKUN15,2#..5F200808-201108

TYPE D:REFER 33-01

main31111-0W070iKUN15..XTR200507-200608

sub31111-25050

main31111-25050iKUN15..(DCB,SCB)..DCR200507-200610

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-201107

TYPE B:REFER 33-01

main90341-18006iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-201108

TYPE C:REFER 33-01

main90341-18006iKUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX200507-200810

main90341-18006iKUN15,2#..5F200808-201108

TYPE D:REFER 33-01

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iKUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX200507-200810

main90430-18008iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-201107

TYPE B:REFER 33-01

main90430-18008iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-201108

TYPE C:REFER 33-01

main90430-18008iKUN15,2#..5F200808-201108

TYPE D:REFER 33-01

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iKUN15,2#..(THDCB,THSCB,XTR)..5F200507-201108

TYPE C:REFER 33-01

main90341-18006iKUN2#..(DCB,SCB)..5F200507-201107

TYPE B:REFER 33-01

main90341-18006iKUN15..DCB,SCB200610-200810

main90341-18006iKUN15,2#..5F200808-201108

TYPE D:REFER 33-01

main90341-18057iKUN15..DCR200507-200610

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iKUN15,2#..5F200808-201108

TYPE D:REFER 33-01

main90430-18008iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-201107

TYPE B:REFER 33-01

main90430-18008iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-201108

TYPE C:REFER 33-01

main90430-18008iKUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX200507-200810

33111CASE, MANUAL TRANSMISSION

main33101-0K010iKUN15,2#..(THDCB,THSCB,XTR)..5F200507-201108

TYPE C:REFER 33-01

main33101-0K010iKUN15..DCB,SCB200610-200810

main33101-0K020iKUN15..XTR200507-200608

sub33101-71020

main33101-0K030iKUN15,2#..5F200808-201108

TYPE D:REFER 33-01

main33101-0K040iKUN15,2#..(THDCB,THSCB,XTR)..5F200507-201107

TYPE B:REFER 33-01

main33101-35051iKUN15..(DCB,SCB)..DCR200507-200610

sub33101-71020

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iKUN25..XTR200507-200508

OD=14,TYPE B:REFER 33-01

main90331-14004iKUN25..DCB,SCB200507-200606

OD=14,TYPE C:REFER 33-01

main90331-14004iKUN15..DCR200507-200610

OD=14

main96411-41800iKUN2#..(DCB,SCB)..5F200507-201107

OD=18,TYPE B:REFER 33-01

main96411-41800iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-200808

OD=18,TYPE C:REFER 33-01

main96411-41800iKUN15..DCB,SCB200610-200810

OD=18

main96411-41800iKUN15,2#..(THDCB,THSCB,XTR)..5F200808-201108

OD=18,TYPE D:REFER 33-01

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iKUN15,2#..(THDCB,THSCB,XTR)..5F200507-201108

L=16,OD=12,TYPE C:REFER 33-01

main90250-12002iKUN15..DCR200507-200810

L=16,OD=12

main90250-12002iKUN2#..(DCB,SCB)..5F200507-200902

L=16,OD=12,TYPE B:REFER 33-01

main90250-12002iKUN15,2#..5F200808-201108

L=16,OD=12,TYPE D:REFER 33-01

main90250-T0020iKUN15,2#..(THDCB,THSCB,XTR)..5F200902-201107

L=16,OD=12,TYPE B:REFER 33-01

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-201108

L=14,OD=15,TYPE C:REFER 33-01

main90253-15001iKUN15..DCR200507-200810

L=14,OD=15

main90253-15001iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-201107

L=14,OD=15,TYPE B:REFER 33-01

main90253-15001iKUN15,2#..5F200808-201108

L=14,OD=15,TYPE D:REFER 33-01

33118PLATE, STIFFENER, RH(MTM)

main33118-04020iKUN15,2#..5F200507-201108

33119PLATE, STIFFENER, LH(MTM)

main33119-0K020iKUN15,2#..5F200507-201108

33131RETAINER, BEARING, FRONT(MTM)

main33018-0K010iKUN2#..(DCB,SCB)..5F200610-200810

NO.1

sub33018-0K011

main33018-0K010iKUN2#..(DCB,SCB)..5F200507-201108

T/P C:SEE 33-01,NO.1

sub33018-0K011

main33018-0K040iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-201107

TYPE B:REFER 33-01

sub33018-0K041

main33018-0K070iKUN15,2#..5F200808-201108

TYPE D:REFER 33-01

sub33018-0K071

main33131-0K010iKUN2#..(DCB,SCB)..5F200610-200810

NO.2

sub33131-0K011

main33131-0K010iKUN15,2#..(THDCB,THSCB,XTR)..5F200507-201108

T/P C:SEE 33-01,NO.2

sub33131-0K011

main33131-0K030iKUN15..XTR200507-200608

sub33131-26020

main33131-26020iKUN15..(DCB,SCB)..DCR200507-200610

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iKUN15..(DCB,SCB)..DCR200507-200610

main90311-T0017iKUN15,2#..(DCB,SCB)..5F200507-201108

TYPE C:REFER 33-01

main90311-T0017iKUN15..DCB,SCB200610-200810

main90311-T0017iKUN15,2#..5F200808-201108

TYPE D:REFER 33-01

main90311-T0021iKUN15..XTR200507-200608

main90311-T0027iKUN15,2#..(THDCB,THSCB,XTR)..5F200507-201107

TYPE B:REFER 33-01

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iKUN15..(DCB,SCB)..DCR200507-200610

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-0K010iKUN2#..(DCB,SCB)..5F200507-201108

TYPE C:REFER 33-01

main33151-0K010iKUN15..DCB,SCB200610-200810

main33151-0K020iKUN15..XTR200507-200608

sub33151-35030

main33151-0K030iKUN15,2#..(THDCB,THSCB,XTR)..5F200507-201107

TYPE B:REFER 33-01

main33151-0K040iKUN15,2#..5F200808-201108

TYPE D:REFER 33-01

main33151-35030iKUN15..(DCB,SCB)..DCR200507-200610

33449BMAGNET, TRANSMISSION

main33449-26010iKUN15..DCR200507-200610

main33449-35030iKUN2#..(DCB,SCB)..5F200507-201108

TYPE C:REFER 33-01

main33449-35030iKUN15,2#..(THDCB,THSCB,XTR)..5F200507-201107

TYPE B:REFER 33-01

main33449-35030iKUN15..DCB,SCB200610-200810

main33449-35030iKUN15,2#..5F200808-201108

TYPE D:REFER 33-01

8401

9011908332

main90119-08332

90119T0226

main90119-T0226

90119T0227

main90119-T0227

9014980002

main90149-80002

9161261045

main91612-61045

22 parts on this diagram · 3 diagrams in section
