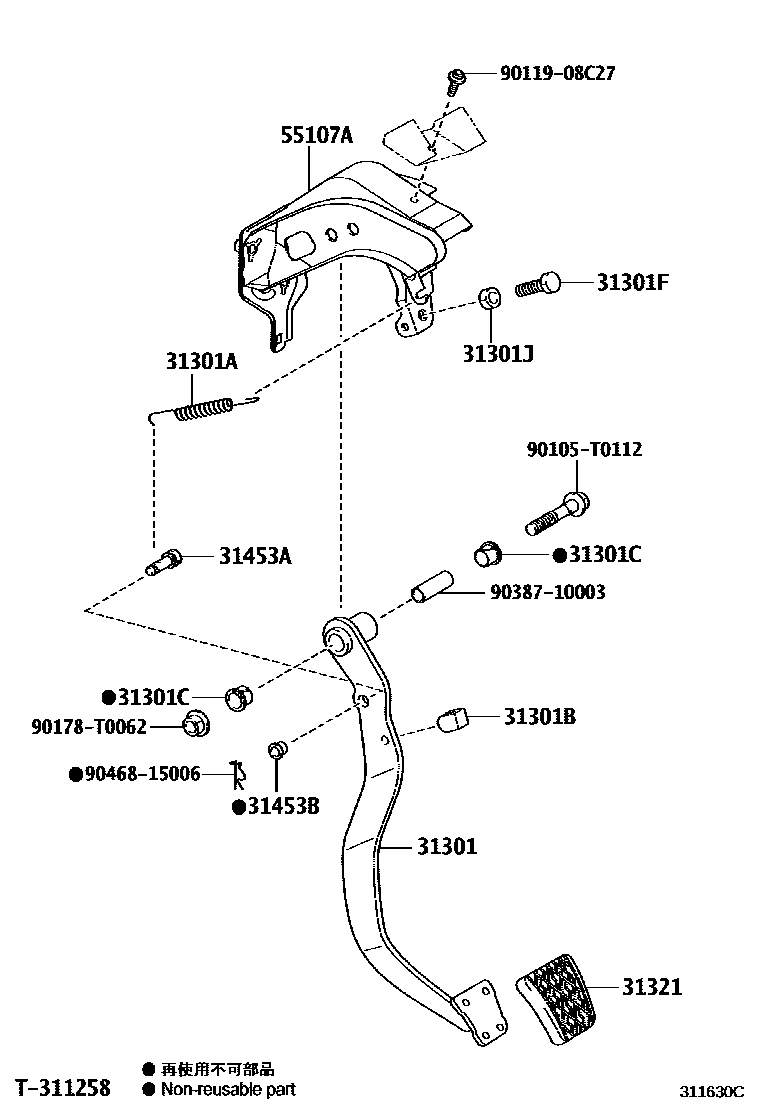

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0006 1 0008 1 0010 1 0012 1 0014 1 0016 1 0018 1 0020 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0K010iKUN15..RHD..XTR200507-200608

main31301-0K020iKUN15,2#..RHD..(THDCB,THSCB,XTR)..5F200608-201008

main31301-0K030iKUN15..LHD..XTR200507-200608

main31301-0K040iKUN26..LHD..THDCB..5F;KUN15,25..LHD..(THDCB,THSCB,XTR)..HDCR200507-201008

main31301-0K050iKUN15..RHD..SCB200507-200610

main31301-0K060iKUN15,25..RHD..(DCB,SCB)200507-201010

main31301-0K070iKUN15..LHD..(DCB,SCB)..DCR200507-200610

main31301-0K080iKUN26..LHD..DCB..5F;KUN15,25..LHD..(DCB,SCB)..5F..HDCR200507-201010

main31301-0K110iKUN26..RHD..THDCB..5F200808-201008

main31301-0K120iKUN26..LHD..THDCB..5F200808-201008

main31301-0K130iKUN26..RHD..DCB..5F200810-201010

main31301-0K140iKUN26..LHD..DCB..5F200810-201010

main31301-0K160iKUN15,2#..RHD..(THDCB,THSCB,XTR)..5F201008-201107

main31301-0K180iKUN15,2#..LHD..(THDCB,THSCB,XTR)..5F201008-201107

main31301-0K200iKUN15,2#..RHD..(DCB,SCB)..5F201010-201108

main31301-0K220iKUN15,2#..LHD..(DCB,SCB)..5F201010-201108

31301ASPRING(FOR CLUTCH PEDAL)

main90507-T0001iKUN15..DCR200507-200610

main90905-06079iKUN2#..5F;KUN15..DLX..HDCR200507-201010

NO.2

main90949-T3001iKUN25..XTR;KUN2#..LHD..(THDCB,THSCB)..5F201008-201108

main90949-T3001iKUN2#..5F;KUN15..DLX..HDCR200507-201010

NO.1

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKUN15..THDCB,THSCB,XTR;KUN25..RHD..(THDCB,THSCB)200808-201108

NO.1

main90541-T0004iKUN15,25..RHD..(THDCB,THSCB)200808-201108

NO.2

main90541-T0004iKUN15,25..RHD..(DCB,SCB)200507-201010

main90541-T0005iKUN26..LHD..5F200808-201108

NO.2

main90541-T0005iKUN15,2#..LHD..5F200507-201010

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iKUN15,2#..5F200507-201108

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iKUN15,2#..5F200507-201108

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-T0011iKUN15,2#..5F200507-201108

31321PAD, CLUTCH PEDAL

main31321-52010iKUN15,2#..5F200507-201108

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-0K011iKUN15,2#..5F200507-201108

L=29.4

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iKUN15,2#..5F200507-201108

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0K010iKUN15,25..DCB,SCB200507-201010

main55107-0K020iKUN15..DCR200507-200610

sub55107-0K021

main55107-0K030iKUN15,25..THDCB,THSCB,XTR200808-201008

main55107-0K040iKUN26..DCB..5F200808-201010

main55107-0K060iKUN15,2#..(THDCB,THSCB,XTR)..5F201008-201107

main55107-0K070iKUN15,2#..(DCB,SCB)..5F201010-201108

90105T0112

main90105-T0112

9011908C27

main90119-08C27

90178T0062

main90178-T0062

9038710003

main90387-10003

9046815006

main90468-15006

15 parts on this diagram · 10 diagrams in section
