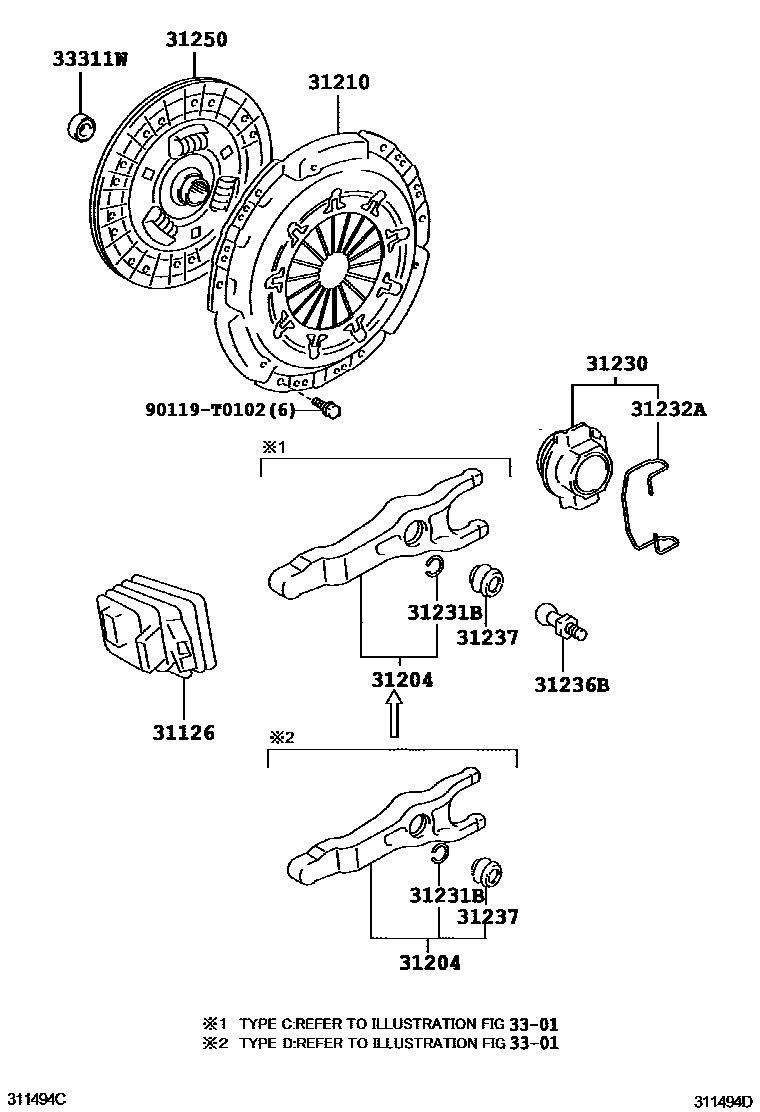

CLUTCH & RELEASE FORK

0001 1 0003 1 0005 1 0006 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0K050iKUN15,2#..5F200808-201108

TYPE D:REFER 33-01

main31126-0K050iKUN15..XTR200507-200608

main31126-60081iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-201108

TYPE C:REFER 33-01

main31126-60081iKUN2#..(DCB,SCB)..5F200507-201107

TYPE B:REFER 33-01

main31126-60081iKUN15..(DCB,SCB)..DLX200507-200810

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0K070iKUN15..XTR200507-200608

sub31204-0K180

sub31236-35050

main31204-0K071iKUN15,2#..5F200808-201108

TYPE D:REFER 33-01

sub31204-0K180

main31204-0K081iKUN15,2#..(THDCB,THSCB,XTR)..5F200507-201108

TYPE C:REFER 33-01

sub31204-0K160

main31204-0K081iKUN15..DCB,SCB200610-200810

sub31204-0K160

main31204-35070iKUN15,2#..(THDCB,THSCB,XTR)..5F200507-201107

TYPE B:REFER 33-01

sub31204-35071

main31204-35070iKUN15..(DCB,SCB)..DCR200507-200610

sub31204-35071

31210COVER ASSY, CLUTCH

main31210-0K020iKUN15..XTR200507-200608

sub31210-0K021

main31210-0K040iKUN25..XTR200507-200511

main31210-0K050iKUN25..DCB,SCB200507-200511

main31210-0K070iKUN25..LHD..THDCB..SR;KUN15..THDCB,THSCB,XTR;KUN25..RHD..(THDCB,THSCB,XTR);KUN25..LHD..(THDCB,THSCB,XTR)..DLX200808-200908

PNC 31250:OD=260

main31210-0K070iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200511-200808

main31210-0K080iKUN26..DCB..5F;KUN15,25..(DCB,SCB)..5F..HDCR200511-200810

main31210-0K080iKUN15,25..DCB,SCB200810-200908

PNC 31250:OD=260

main31210-0K190iKUN25..LHD..THDCB..SR;KUN15..THDCB,THSCB,XTR;KUN25..RHD..(THDCB,THSCB,XTR);KUN25..LHD..(THDCB,THSCB,XTR)..DLX200808-201108

main31210-0K190iKUN25..XTR..SR;KUN15,25..DCB,SCB200908-201108

PNC 31250:OD=275

main31210-35241iKUN15..(DCB,SCB)..DCR200507-200610

sub31210-0K210

31230BEARING ASSY, CLUTCH RELEASE

main31230-71010iKUN2#..(DCB,SCB)..5F200808-200809

TYPE D:REFER 33-01,TYPE B:REFER 33-01

sub31230-71011

main31230-71010iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-200808

TYPE C:REFER 33-01

sub31230-71011

main31230-71010iKUN2#..(DCB,SCB)..5F200507-200808

TYPE B:REFER 33-01

sub31230-71011

main31230-71010iKUN15..DCB,SCB200610-200810

sub31230-71011

main31230-71011iKUN15,2#..(DCB,SCB)..5F200810-201108

TYPE C:REFER 33-01

main31230-71011iKUN2#..(DCB,SCB)..5F200809-200810

TIRE & DISC WHEEL-205/70R15C 6JJ

main31230-71011iKUN15,2#..(THDCB,THSCB,XTR)..5F200809-201107

TYPE B:REFER 33-01

main31230-71011iKUN15,2#..5F200809-201108

TYPE D:REFER 33-01

main31230-71030iKUN15..DCR200507-200610

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

main90520-T0031iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)..5F200808-201108

TYPE D:REFER 33-01

main90520-T0031iKUN15..XTR200507-200608

main90521-22003iKUN2#..(DCB,SCB)..5F200507-201108

TYPE C:REFER 33-01

main90521-22003iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-200808

TYPE B:REFER 33-01

main90521-22003iKUN15..(DCB,SCB)..DLX200507-200810

main90521-22003iKUN15,2#..(THDCB,THSCB,XTR)..5F200808-201107

TYPE B:SEE 33-01,(J)

31232ACLIP, RELEASE BEARING HUB

main31232-71010iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-201107

TYPE B:REFER 33-01

main31232-71010iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-201108

TYPE C:REFER 33-01

main31232-71010iKUN15..DCB,SCB200610-200810

main31232-71010iKUN15,2#..5F200808-201108

TYPE D:REFER 33-01

main31232-71030iKUN15..DCR200507-200610

31236BSUPPORT, RELEASE FORK

main31236-71010iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-200811

TYPE B:REFER 33-01

sub31236-71011

main31236-71010iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200507-200811

TYPE C:REFER 33-01

sub31236-71011

main31236-71010iKUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX200507-200810

sub31236-71011

main31236-71010iKUN15,2#..(THDCB,THSCB,XTR)..5F200808-200811

TYPE D:REFER 33-01

sub31236-71011

main31236-71011iKUN15,2#..(THDCB,THSCB,XTR)..5F200811-201107

TYPE B:REFER 33-01

main31236-71011iKUN15,2#..(DCB,SCB)..5F200811-201108

TYPE C:REFER 33-01

main31236-71011iKUN15,2#..(DCB,SCB)..5F200811-201108

TYPE D:REFER 33-01

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)..5F200808-201108

TYPE D:REFER 33-01

main31237-60010iKUN2#..(DCB,SCB)..5F200507-200808

TYPE B:REFER 33-01

main31237-60010iKUN2#..(DCB,SCB)..5F200507-201108

TYPE C:REFER 33-01

main31237-60010iKUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX200507-200810

main31237-60010iKUN15,2#..(THDCB,THSCB,XTR)..5F200808-201107

TYPE B:SEE 33-01,(J)

31250DISC ASSY, CLUTCH

main31250-0K020iKUN15..XTR200507-200608

sub31250-0K210

main31250-0K030iKUN15..(DCB,SCB)..DCR200507-200610

main31250-0K060iKUN15,25..DCB,SCB200810-200908

OD=260

sub31250-0K061

main31250-0K060iKUN26..DCB..5F;KUN15,25..(DCB,SCB)..5F..HDCR200507-200810

sub31250-0K061

main31250-0K201iKUN25..XTR200507-200508

sub31250-0K202

main31250-0K202iKUN25..XTR200509-200510

sub31250-0K203

main31250-0K203iKUN25..XTR200511-200606

sub31250-0K204

main31250-0K204iKUN15,25..THDCB,THSCB,XTR200808-200908

OD=260

sub31250-0K205

main31250-0K204iKUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR200607-200808

sub31250-0K205

main31250-0K220iKUN26..5F200808-201007

OD=275

sub31250-0K221

main31250-0K221iKUN15,2#..5F201008-201108

OD=275

sub31250-0K222

3301

33311WBEARING (FOR INPUT SHAFT)

main90080-36198iKUN15,2#..(DCB,SCB)..5F200610-200810

(L)

main90080-36198iKUN15,25..(DCB,SCB)..5F200507-200610

main90363-12002iKUN15,2#..(DCB,SCB)..5F200610-200810

(J)

sub90363-12024

main90363-12002iKUN15,2#..(DCB,SCB)..5F200810-201108

sub90363-12024

main90363-T0006iKUN15,2#..(THDCB,THSCB,XTR)..5F200507-201107

90119T0102

main90119-T0102
