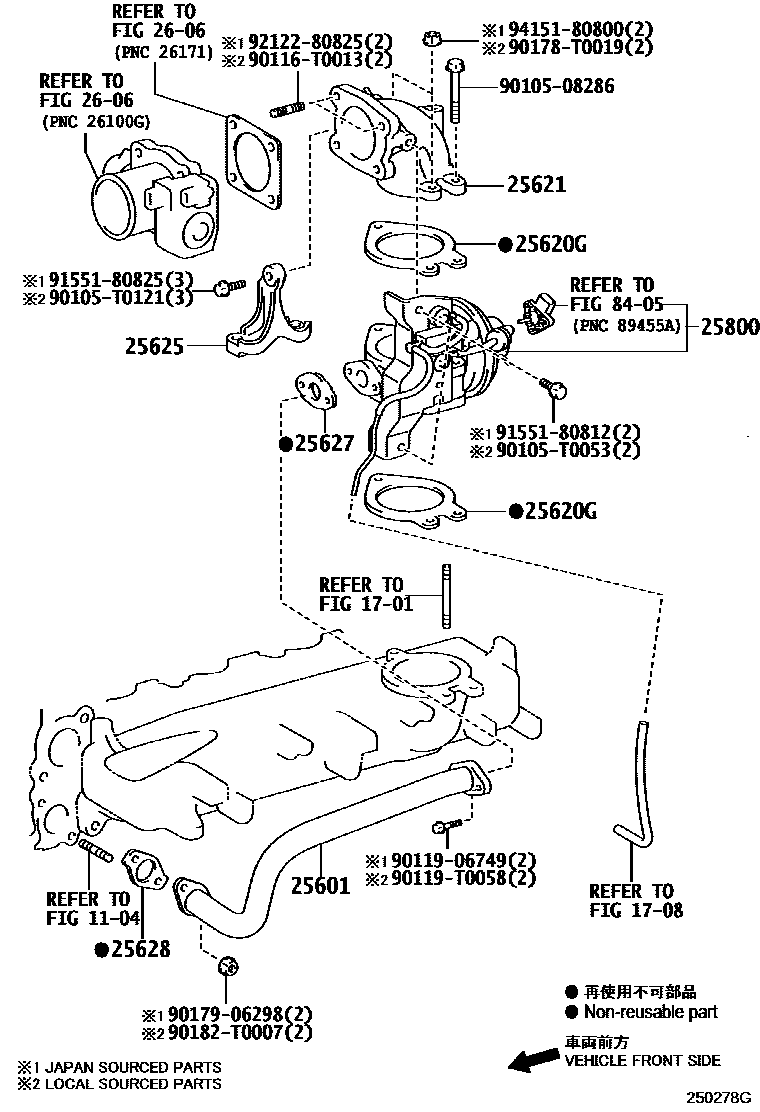

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0003 1

1104

1701

1708

25601PIPE SUB-ASSY, EGR, NO.1

main25601-0L010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main25601-30070i2KDFTV..KUN25..XTR200507-200610

*163 OR *184

main25601-30080i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200608-201108

sub25601-0L020

25620GGASKET, DIESEL THROTTLE

main26171-0L010i2KDFTV..KUN25..XTR200507-200610

*130

main26171-30030i2KDFTV..KUN25..DCB,SCB200608-201108

NO.1

main26171-30030i2KDFTV..KUN25..XTR200507-200610

*163 OR *184

main26171-30050i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-201108

NO.2

25621CONNECTOR, INTAKE AIR(FOR GASKET)

main17861-0L010i2KDFTV..KUN25..XTR200507-200610

*130

main17861-30070i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*163 OR *184

main17861-30090i2KDFTV..KUN25..DCB,SCB200608-201108

25625BRACKET, EGR VALVE

main26127-0L010i2KDFTV..KUN25..XTR200507-200610

*130

main26127-30020i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*163 OR *184

main26127-30030i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200608-201108

25627GASKET, EGR VALVE

main25627-0L010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main25627-30010i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-201011

main25627-30030i2KDFTV..KUN25..XTR200507-200610

*163 OR *184

main25627-30060i1KDFTV,2KDFTV..KUN15,2#201011-201108

25628GASKET, EGR INLET

main25628-0L010i2KDFTV..KUN25..XTR200507-200610

*130

main25628-30020i2KDFTV..KUN25..XTR200507-200610

*163 OR *184

main25628-30030i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200608-201106

sub25628-30031

main25628-30031i1KDFTV,2KDFTV..KUN15,2#201106-201108

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-0L020i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

sub25800-0L050

main25800-30120i2KDFTV..KUN25..DCB,SCB200608-201108

main25800-30180i1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR200803-200810

sub25800-30120

2606

8405

9010508286

main90105-08286

90105T0053

main90105-T0053

90105T0121

main90105-T0121

90116T0013

main90116-T0013

9011906749

main90119-06749

90119T0058

main90119-T0058

90178T0019

main90178-T0019

9017906298

main90179-06298

90182T0007

main90182-T0007

9155180812

main91551-80812

9155180825

main91551-80825

9212280825

main92122-80825

9415180800

main94151-80800

25 parts on this diagram · 2 diagrams in section
