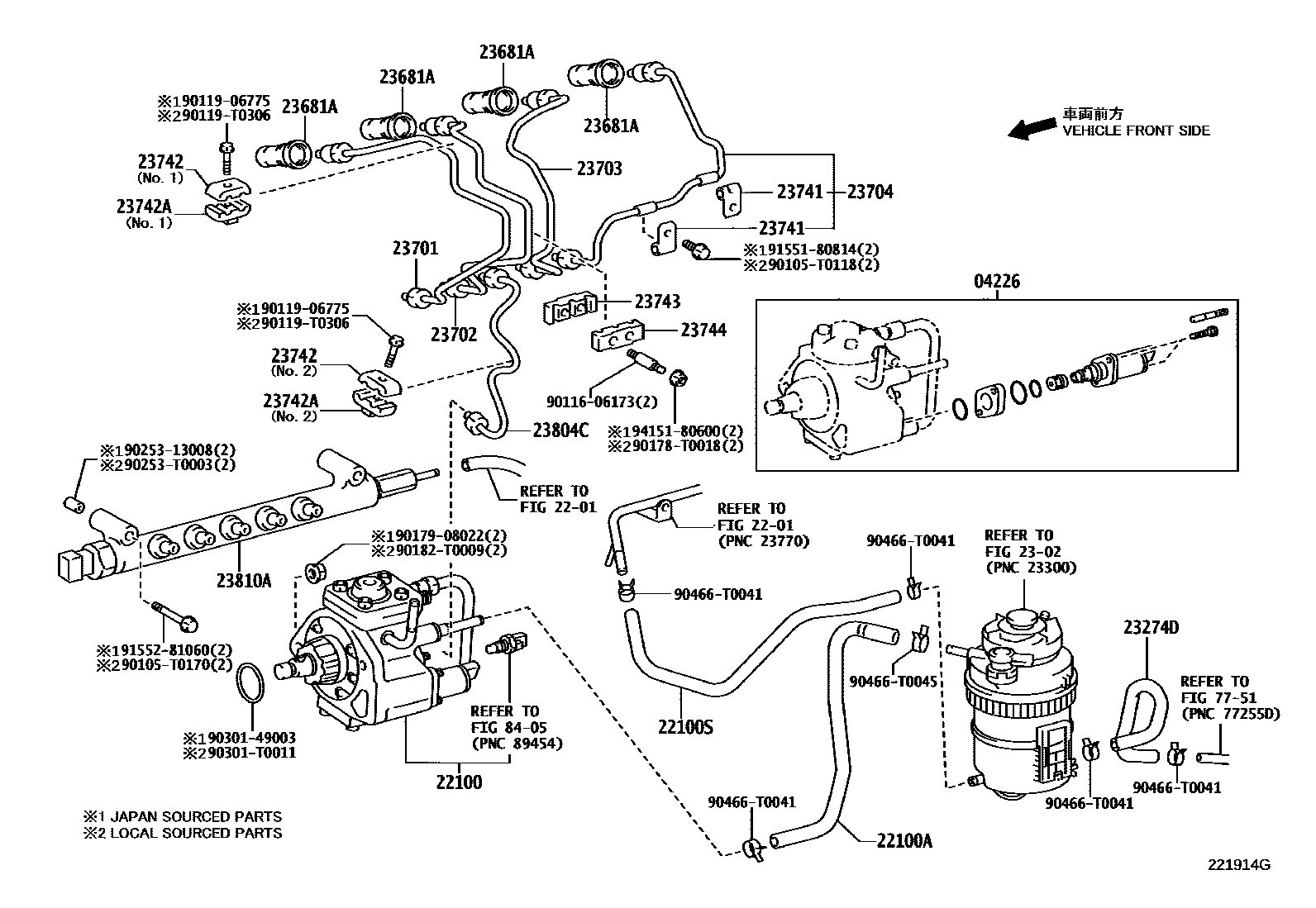

INJECTION PUMP ASSEMBLY

0001 1 0003 1 0005 1 0006 1 0007 1

04226VALVE KIT, SUCTION CONTROL

main04226-0L010i2KDFTV..KUN25..DCB,SCB200507-200605

*163 OR *184

main04226-30010i2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-200705

*163 OR *184

main04226-30020i2KDFTV..KUN15,25200705-200810

*163 OR *184

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-0L020i2KDFTV..KUN25..XTR200507-200608

*163 OR *184,*130

sub22100-0L060

main22100-30040i2KDFTV..KUN25..DCB,SCB200610-200705

*163 OR *184

main22100-30090i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200809-201108

main22100-30100i1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR200808-200809

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-0L060i2KDFTV..KUN25..DCB,SCB,XTR;1KDFTV,2KDFTV..KUN2#..LHD..(THDCB,THSCB);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB)..(5F,5FC)200808-201108

main23271-30180i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-30170i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

2302

23274DHOSE, FUEL, NO.3

main23274-30040i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

23681ASEAL, NOZZLE HOLDER

main23681-0L010×4i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main23681-30010×4i2KDFTV..KUN25..XTR200507-200608

*163 OR *184

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-0L010i2KDFTV..KUN25..XTR200507-200608

*130

main23701-30050i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*163 OR *184

main23701-30060i2KDFTV..KUN25..DCB,SCB200610-200810

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-0L010i2KDFTV..KUN25..XTR200507-200608

*130

main23702-30050i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*163 OR *184

main23702-30060i2KDFTV..KUN25..DCB,SCB200610-200810

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-0L010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main23703-30050i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*163 OR *184

main23703-30060i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-200810

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-09015i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

main23704-39055i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200801-200810

23741CLAMP, INJECTION PIPE, NO.1

main23741-0L020×2i2KDFTV..KUN15,25..DCB,SCB200507-200610

main23741-30010i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-200810

main23741-30020×2i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*163 OR *184

23742CLAMP, INJECTION PIPE, NO.2

main23742-0L011i2KDFTV..KUN15,25..XTR200507-200608

*130,NO.1

sub23742-0L090

main23742-0L030i2KDFTV..KUN15,25..DCB,SCB200507-200610

*130,NO.1

main23742-0L050i2KDFTV..KUN15,25..XTR200507-200608

*130,NO.2

main23742-0L070i2KDFTV..KUN15,25..DCB,SCB200507-200610

*130,NO.2

main23742-27010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*163 OR *184,NO.1

main23742-30010i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

NO.2

23742ACLAMP, INJECTION PIPE, NO.3

main23742-0L021i2KDFTV..KUN15,25..XTR200507-200608

*130,NO.1

main23742-0L040i2KDFTV..KUN15,25..DCB,SCB200507-200610

*130,NO.1

main23742-0L060i2KDFTV..KUN15,25..XTR200507-200608

*130,NO.2

main23742-0L080i2KDFTV..KUN15,25..DCB,SCB200507-200610

*130,NO.2

main23742-30020i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*163 OR *184,NO.2

main23742-58020×2i2KDFTV..KUN25..DCB,SCB200610-200810

NO.1

23743CLAMP, INJECTION PIPE, NO.3

main23743-0L012i2KDFTV..KUN15,25..XTR200507-200608

*130

sub23743-0L040

main23743-0L030i2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main23743-30011i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-200810

23744CLAMP, INJECTION PIPE, NO.4

main23743-0L012i2KDFTV..KUN15,25..XTR200507-200608

*130

sub23743-0L040

main23743-0L030i2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main23743-30011i2KDFTV..KUN25..XTR200507-200608

*163 OR *184

23804CPIPE SUB-ASSY, FUEL INLET

main23804-0L010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main23804-30050i2KDFTV..KUN25..DCB,SCB200610-200810

23810ARAIL ASSY, COMMON

main23810-0L010i2KDFTV..KUN15..RHD..XTR..HDCR200507

main23810-0L020i2KDFTV..KUN15,25200808-200907

*163 OR *184,*319

sub23810-0L011

main23810-30091i2KDFTV..KUN15,25200907-200908

*163 OR *184,*319

sub23810-0L011

main23810-30100i2KDFTV..KUN15,25200908-201108

*163 OR *184,*320

7751

8405

90105T0118

main90105-T0118

90105T0170

main90105-T0170

9011606173

main90116-06173

9011906775

main90119-06775

90119T0306

main90119-T0306

90178T0018

main90178-T0018

9017908022

main90179-08022

90182T0009

main90182-T0009

9025313008

main90253-13008

90253T0003

main90253-T0003

9030149003

main90301-49003

90301T0011

main90301-T0011

90466T0041

main90466-T0041

90466T0045

main90466-T0045

9155180814

main91551-80814

9155281060

main91552-81060

9415180600

main94151-80600

38 parts on this diagram · 5 diagrams in section
