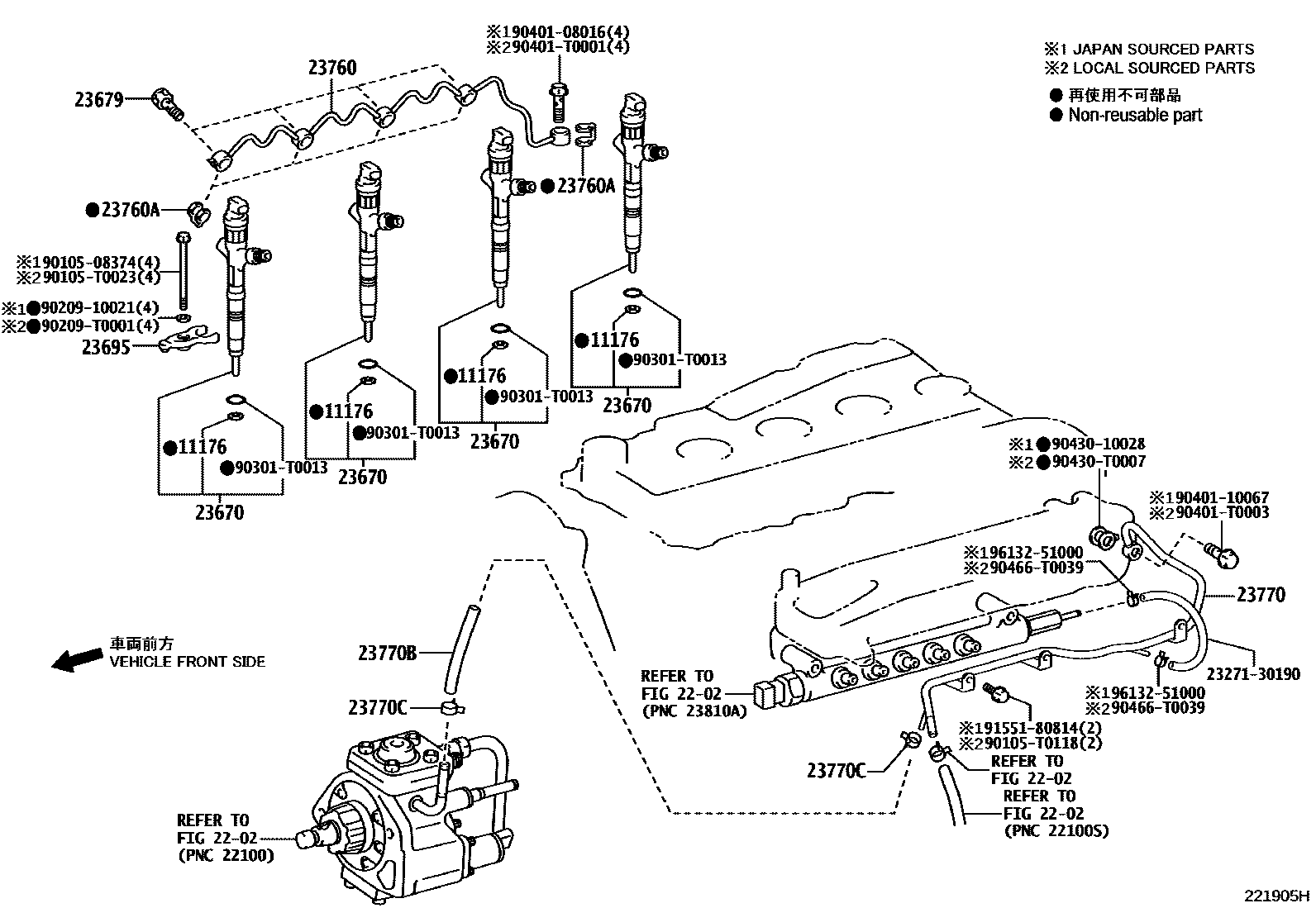

INJECTION NOZZLE

0001 1 0003 1 0005 1

11176SEAT, INJECTION NOZZLE

main11176-0L010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

sub11176-0L011

main11176-30010i1KDFTV..KUN26;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-200711

sub11176-30011

main11176-30010i2KDFTV..KUN25..XTR200507-200610

*163 OR *184

sub11176-30011

main11176-30011i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200711-201108

main11176-30011i1KDFTV,2KDFTV..KUN2#200908-201108

*163 OR *184

2202

23670INJECTOR ASSY

main23670-09060i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*163 OR *184

sub23670-09061

main23670-39145i2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-200711

sub23670-39146

main23670-39146i2KDFTV..KUN15,25200711-200803

sub23670-39285

main23670-39185i1KDFTV..KUN26200610-200711

*163 OR *184

sub23670-39186

main23670-39186i1KDFTV..KUN26200711-200803

*163 OR *184

sub23670-39316

main23670-39285i2KDFTV..KUN15,25200803-200908

main23670-39316i1KDFTV..KUN26..5F,5FC200808-200908

MARK 23670-30280

main23670-39316i1KDFTV..KUN26..4FC,5F200803-200810

*163 OR *184

main23670-39355i2KDFTV..KUN15200908-201108

main23670-39365i1KDFTV,2KDFTV..KUN2#200908-201108

MARK 23670-30400

23679SCREW, INJECTOR FOLLOW

main23679-0L010i2KDFTV..KUN25..XTR200507-200610

*130

main23679-30020i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-201001

*163 OR *184

sub23679-30021

main23679-30020i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-201001

sub23679-30021

main23679-30021i1KDFTV,2KDFTV..KUN2#201001-201108

*163 OR *184

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0L010i2KDFTV..KUN25..XTR200507-200610

*130

sub23695-30011

main23695-0L010i1KDFTV,2KDFTV..KUN2#200908-201007

*163 OR *184

sub23695-30011

main23695-0L010i1KDFTV,2KDFTV..KUN2#200905-201007

sub23695-30011

main23695-30010i2KDFTV..KUN25..DCB,SCB200608-200810

sub23695-30011

main23695-30010i2KDFTV..KUN25..XTR200507-200610

*163 OR *184

sub23695-30011

main23695-30011i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200809-200905

main23695-30011i2KDFTV..KUN15201007-201108

*163 OR *184

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0L010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main23760-30020i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-201108

*163 OR *184

main23760-30020i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-201108

23760AGASKET

main90430-T0008i2KDFTV..KUN25..XTR200507-200610

*130

main90904-30013i1KDFTV,2KDFTV..KUN2#200507-201108

*163 OR *184

main90904-30013i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-201108

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-0L020i2KDFTV..KUN25..XTR200507-200610

*130

main23770-30060i2KDFTV..KUN25..XTR200507-200610

*163 OR *184

main23770-30070i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-201108

sub23770-0L030

23770BHOSE, FUEL

main23273-30180i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201012

L=200

sub95337-06020

main95337-06020i1KDFTV,2KDFTV..KUN15,2#201012-201108

L=200

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main90466-T0043i2KDFTV..KUN25..XTR200507-200610

*130

sub90466-T0022

main96135-51100i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200608-201108

main96135-51100i2KDFTV..KUN25..DCB,SCB200507-200810

*163 OR *184

2327130190VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1

main23271-30190

9010508374

main90105-08374

90105T0023

main90105-T0023

90105T0118

main90105-T0118

9020910021

main90209-10021

90209T0001

main90209-T0001

90301T0013

main90301-T0013

9040108016

main90401-08016

9040110067

main90401-10067

90401T0001

main90401-T0001

90401T0003

main90401-T0003

9043010028

main90430-10028

90430T0007

main90430-T0007

90466T0039

main90466-T0039

9155180814

main91551-80814

9613251000

main96132-51000

26 parts on this diagram · 3 diagrams in section
