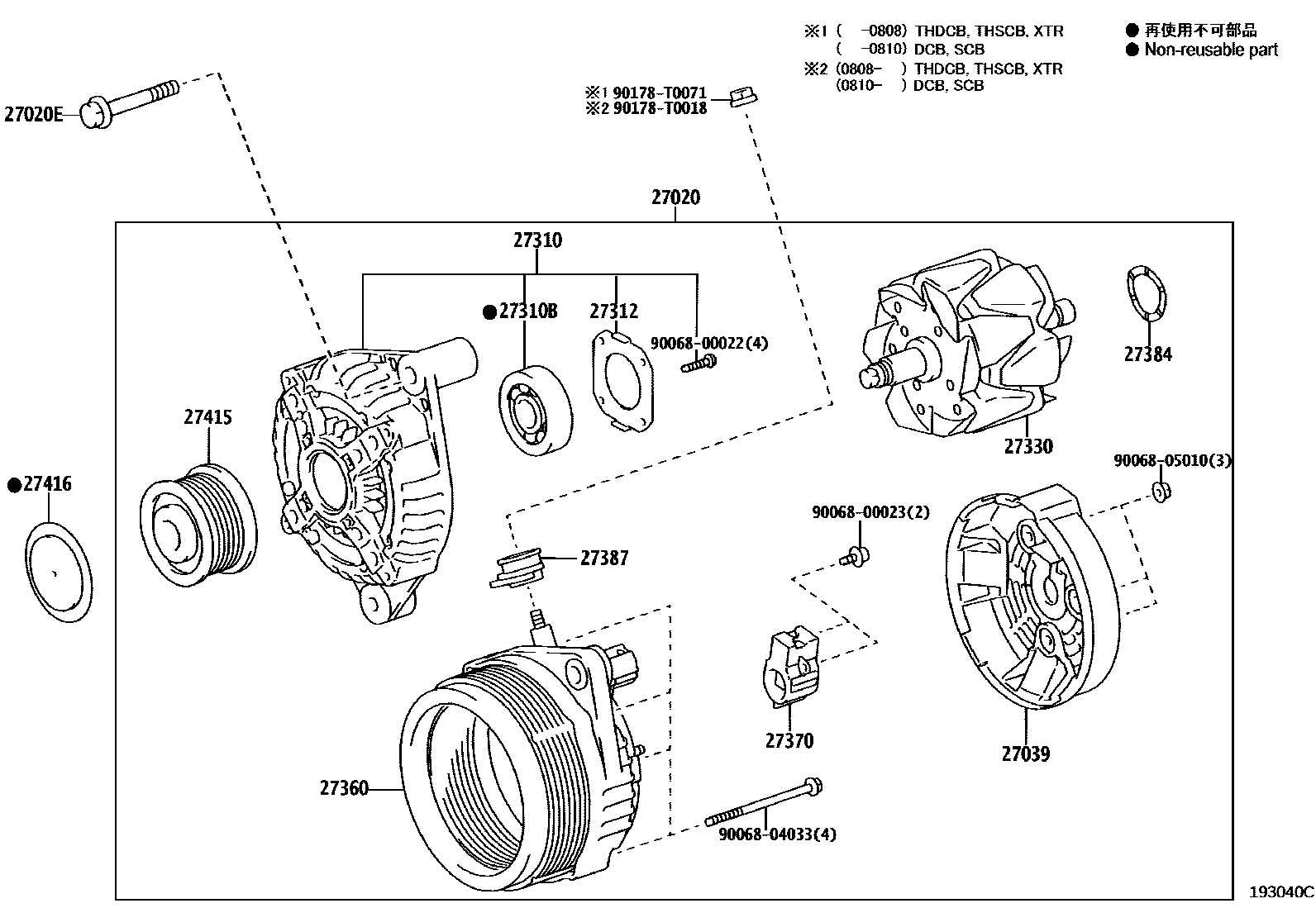

ALTERNATOR

0001 112V 80A 0005 112V 80A COLD AREA SPEC 0006 112V 70A,12V 80A 0008 112V 80A(BOSCH)

27020ALTERNATOR ASSY

main27060-0L020i1KDFTV..KUN26;2KDFTV..KUN25..XTR;2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15..DLX..HDCR200507-200612

12V 80A

sub27060-0L021

sub27416-30010

main27060-0L021i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200701-200912

12V 80A

sub27060-0L022

main27060-0L022i2KDFTV..KUN25..LHD..(THDCB,THSCB);2KDFTV..KUN25..RHD..(THDCB,THSCB,XTR);1KDFTV,2KDFTV..KUN15,26..THDCB,THSCB,XTR201001-201107

12V 80A

main27060-0L050i2KDFTV..KUN15,25..DCB,SCB200507-200610

12V 70A

sub27060-0L021

main27060-0L060i2KDFTV..KUN15..RHD..SCB200810-201108

12V 80A

main27060-0L090i2KDFTV..KUN25..LHD..XTR200909-201008

12V 80A

main27060-0L100i2KDFTV..KUN25..LHD..XTR201008-201107

12V 80A

sub27060-0L060

27020EBOLT(FOR ALTERNATOR)

main90105-10092i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

main90105-T0074i2KDFTV..KUN15..THDCB,THSCB,XTR;1KDFTV,2KDFTV..KUN2#..RHD..(THDCB,THSCB)200808-201108

27039COVER, ALTERNATOR REAR END

main27039-0L020i2KDFTV..KUN25..LHD..XTR200808-201107

main27039-0L030i2KDFTV..KUN25..LHD..XTR201008-201107

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0L020i2KDFTV..KUN25..LHD..XTR200808-201008

sub27310-0L021

main27310-0L021i2KDFTV..KUN25..LHD..(THDCB,THSCB);2KDFTV..KUN25..RHD..(THDCB,THSCB,XTR);1KDFTV,2KDFTV..KUN15,26..THDCB,THSCB,XTR201001-201107

main27310-0L030i2KDFTV..KUN25..LHD..XTR201008-201107

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10024i2KDFTV..KUN25..LHD..(THDCB,THSCB);2KDFTV..KUN25..RHD..(THDCB,THSCB,XTR);1KDFTV,2KDFTV..KUN15,26..THDCB,THSCB,XTR200808-201008

main90068-10029i2KDFTV..KUN25..LHD..(THDCB,THSCB);2KDFTV..KUN25..RHD..(THDCB,THSCB,XTR);1KDFTV,2KDFTV..KUN15,26..THDCB,THSCB,XTR201001-201107

main90069-40000i2KDFTV..KUN25..LHD..XTR201008-201107

27312PLATE, RETAINER

main27312-0C020i2KDFTV..KUN25..LHD..(THDCB,THSCB);2KDFTV..KUN25..RHD..(THDCB,THSCB,XTR);1KDFTV,2KDFTV..KUN15,26..THDCB,THSCB,XTR200808-201107

main27312-0L030i2KDFTV..KUN25..LHD..XTR201008-201107

27330ROTOR ASSY, ALTERNATOR

main27330-0L050i2KDFTV..KUN15,25..DCB,SCB200507-201108

main27330-0M040i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200704-201107

27360COIL ASSY, ALTERNATOR

main27360-0L020i2KDFTV..KUN25..LHD..XTR200808-201001

sub27360-0L021

main27360-0L021i2KDFTV..KUN25..LHD..(THDCB,THSCB);2KDFTV..KUN25..RHD..(THDCB,THSCB,XTR);1KDFTV,2KDFTV..KUN15,26..THDCB,THSCB,XTR201001-201107

main27360-0L130i2KDFTV..KUN25..LHD..XTR200909-201008

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0C020i2KDFTV..KUN25..LHD..XTR200808-201107

27384WASHER

main27384-0C020i2KDFTV..KUN25..LHD..XTR200808-201107

27387INSULATOR, TERMINAL

main27387-0C020i2KDFTV..KUN25..LHD..XTR200808-201107

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0L010i2KDFTV..KUN25..DCB,SCB200507-200612

sub27415-0L030

sub27416-0L030

main27415-0L020i2KDFTV..KUN15,25..DCB,SCB200507-200610

sub27415-0L040

main27415-0L030i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200701-201107

main27415-0L040i1KDFTV,2KDFTV..KUN15,2#..DCB,SCB200810-201108

27416CAP, ALTERNATOR PULLEY

main27416-0L010i1KDFTV..KUN26;2KDFTV..KUN25..XTR;2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15..DLX..HDCR200507-200701

main27416-0L020i2KDFTV..KUN15,25..DCB,SCB200507-200610

main27416-0L030i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200701-201107

main27416-33010i1KDFTV,2KDFTV..KUN15,2#..DCB,SCB200810-201108

9006800022

main90068-00022

9006800023

main90068-00023

9006804033

main90068-04033

9006805010

main90068-05010

90178T0018

main90178-T0018

90178T0071

main90178-T0071

19 parts on this diagram · 4 diagrams in section
