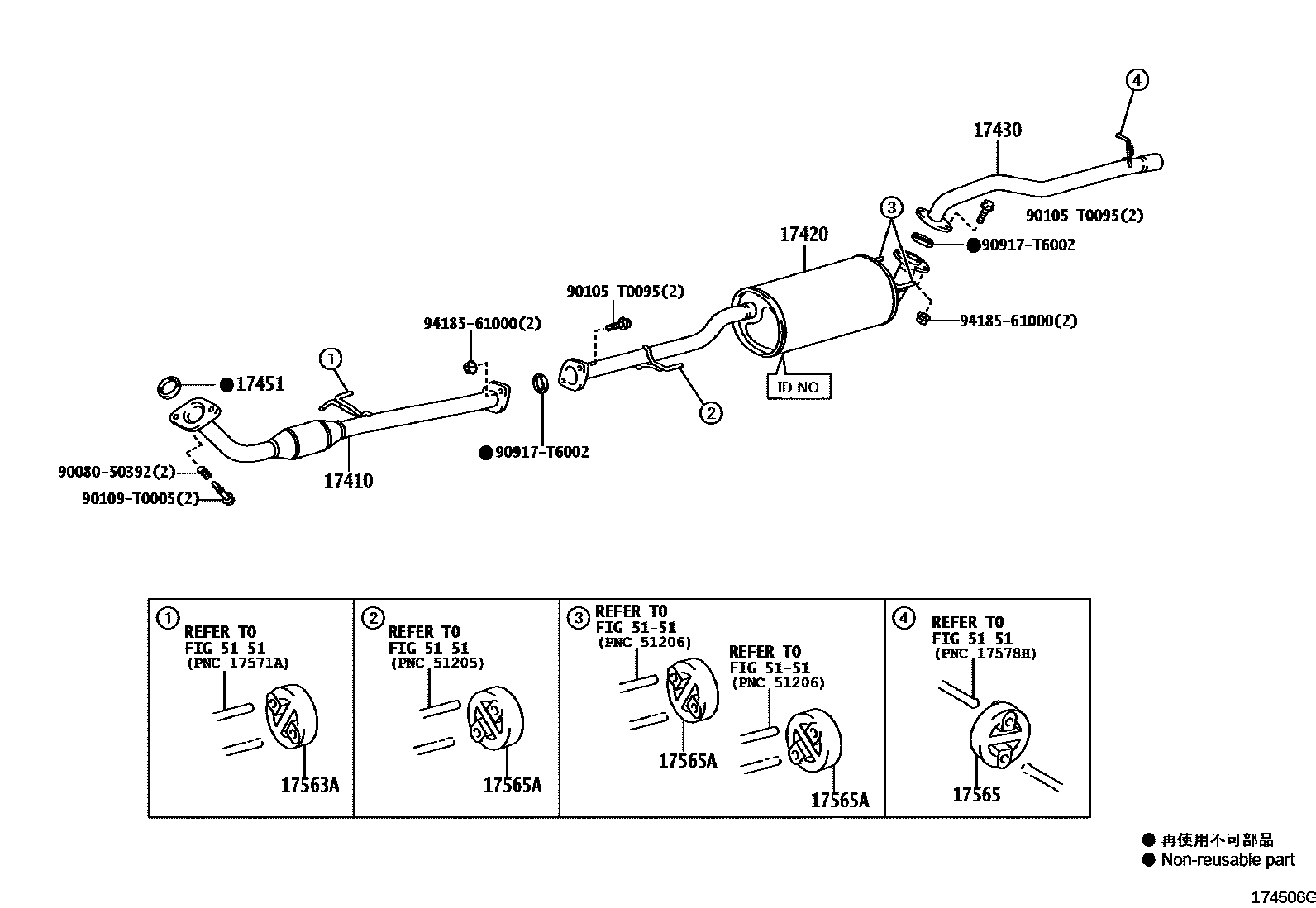

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17401-0L060i2KDFTV..KUN25..IV3;2KDFTV..KUN25..(DCB,XTR)..CBU200507-200610

main17401-0L070i1KDFTV..KUN26..4FC,5F200602-200810

*114=TOYOTA/AD5/Y

main17401-0L080i2KDFTV..KUN25..DCB,SCB200608-200810

*114=TOYOTA/AD5/Y

main17401-0L090i1KDFTV..KUN26..5F,5FC200808-201108

*114=TOYOTA/AF3/Y

main17401-0L100i2KDFTV..KUN25..THDCB,THSCB,XTR200808-201108

*114=TOYOTA/AF3/Y

17420PIPE ASSY, EXHAUST, CENTER

main17403-0L060i2KDFTV..KUN25..SCB..IV3;2KDFTV..KUN15..DLX..HDCR;1KDFTV,2KDFTV..KUN2#..(DCB,THDCB,THSCB,XTR)..(4FC,5F)200602-201105

ID NO.=10L02

sub17403-0L061

main17403-0L061i1KDFTV,2KDFTV..KUN15,2#201106-201108

ID NO.=10L02

main17403-0L080i2KDFTV..KUN25..IV3;2KDFTV..KUN25..(DCB,XTR)..CBU200507-200610

ID NO.=10L03

sub17403-0L081

17430PIPE ASSY, EXHAUST, TAIL

main17405-0L110i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201003

sub17405-0L111

main17405-0L111i1KDFTV,2KDFTV..KUN15,2#201004-201108

17451GASKET, EXHAUST PIPE

main17451-0L010i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200507-201108

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-0M010i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0M010i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0M010i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

5151

9008050392

main90080-50392

90105T0095

main90105-T0095

90109T0005

main90109-T0005

90917T6002

main90917-T6002

9418561000

main94185-61000

13 parts on this diagram · 1 diagram in section
