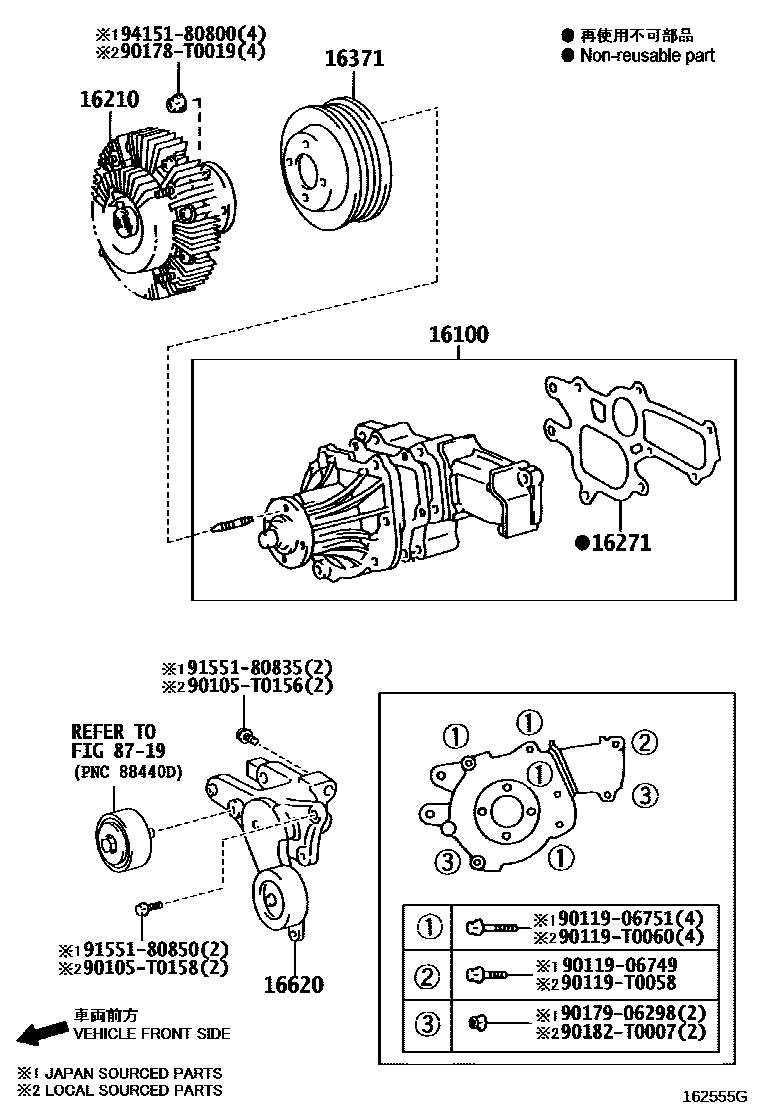

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-09260i2KDFTV..KUN25..XTR200507-200610

*130

sub16100-09261

main16100-39485i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN15..SCB..DCR..IV3;2KDFTV..KUN25..THDCB,THSCB,XTR200507-201108

*163 OR *184

sub16100-39486

16210COUPLING ASSY, FLUID

main16210-0L010i2KDFTV..KUN25..XTR200507-200610

*130

sub16210-0L011

main16210-30020i2KDFTV..KUN15,25200507-200604

*163 OR *184

sub16210-30030

main16210-30030i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200604-201108

*163 OR *184

sub16210-30031

16271GASKET, WATER PUMP

main16271-0L010i2KDFTV..KUN25..XTR200507-200610

*130

main16271-67020i2KDFTV..KUN25..THDCB,THSCB,XTR;1KDFTV,2KDFTV..KUN15,26..4FC,5F200507-201108

*163 OR *184

16371PULLEY, FAN

main16371-0L010i2KDFTV..KUN25..XTR200507-200610

*130

main16371-30020i2KDFTV..KUN25..THDCB,THSCB,XTR;1KDFTV,2KDFTV..KUN15,26..4FC,5F200507-201108

*163 OR *184

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0L020i2KDFTV..KUN25..XTR200507-200610

*130

main16620-30031i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200507-201108

*163 OR *184

8719

90105T0156

main90105-T0156

90105T0158

main90105-T0158

9011906749

main90119-06749

9011906751

main90119-06751

90119T0058

main90119-T0058

90119T0060

main90119-T0060

90178T0019

main90178-T0019

9017906298

main90179-06298

90182T0007

main90182-T0007

9155180835

main91551-80835

9155180850

main91551-80850

9415180800

main94151-80800

18 parts on this diagram · 1 diagram in section
