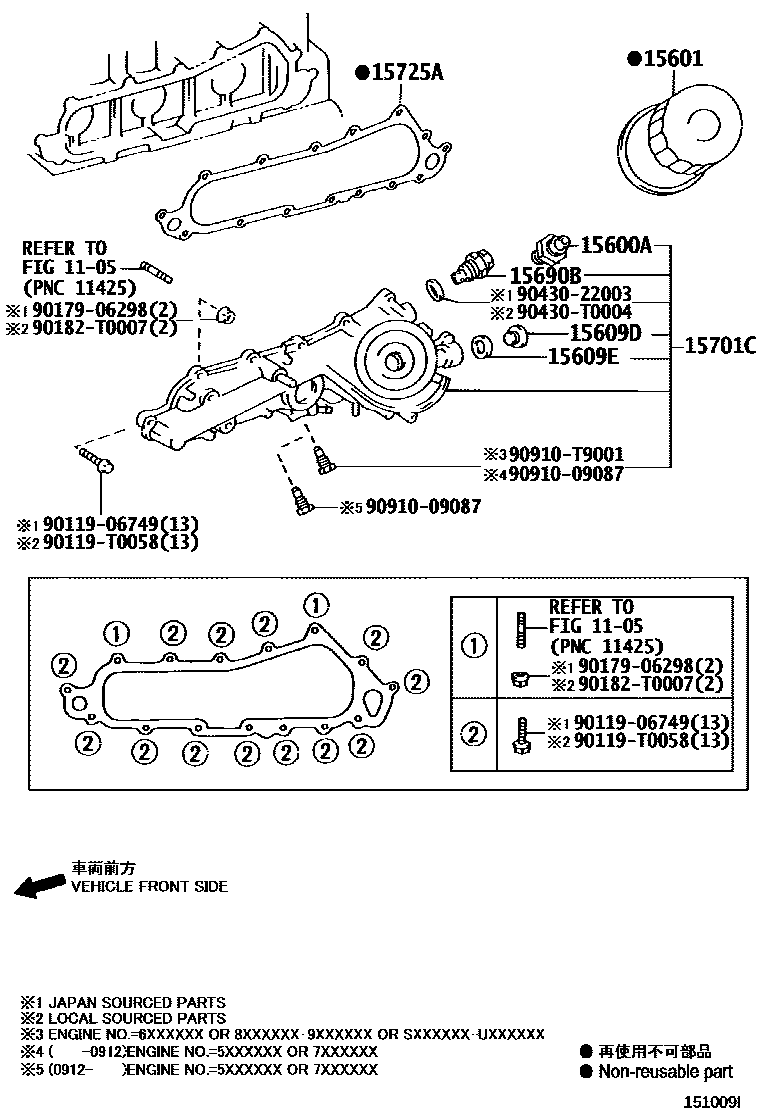

OIL FILTER

1105

15600AUNION(FOR OIL FILTER)

main90404-19002i2KDFTV..KUN25..DCB,SCB200608-201108

main90404-19002i2KDFTV..KUN25..XTR200507-200610

*163 OR *184

main90404-T0001i2KDFTV..KUN25..XTR200507-200610

*130

15601FILTER SUB-ASSY, OIL

main90915-20003i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-201108

sub90915-20005

main90915-20003i2KDFTV..KUN25..XTR200507-200610

*163 OR *184

sub90915-20005

main90915-TB001i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i2KDFTV..KUN25..DCB,SCB200608-201108

main90341-20002i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*163 OR *184

main90341-T0006i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-201108

main15134-67020i2KDFTV..KUN25..XTR200507-200610

*163 OR *184

main90430-T0005i2KDFTV..KUN25..XTR200507-200610

*130

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-0L010i2KDFTV..KUN25..XTR200507-200610

*130

sub15690-0L011

main15690-64010i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200608-201101

sub15690-64011

main15690-64010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*163 OR *184

sub15690-64011

main15690-64011i1KDFTV,2KDFTV..KUN15,2#201101-201108

15701CCOVER SUB-ASSY, OIL COOLER

main15701-0L030i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main15701-30080i2KDFTV..KUN25..XTR200507-200610

*163 OR *184

sub15701-30081

sub90910-09087

main15701-30090i2KDFTV..KUN25..DCB,SCB200608-200912

sub15701-30091

sub90910-09087

main15701-30091i1KDFTV,2KDFTV..KUN15,2#200912-201108

15725AGASKET, OIL COOLER COVER

main15725-0L010i2KDFTV..KUN25..XTR200507-200610

*130

main15725-67010i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200608-201108

main15725-67010i2KDFTV..KUN25..XTR200507-200610

*163 OR *184

9011906749

main90119-06749

90119T0058

main90119-T0058

9017906298

main90179-06298

90182T0007

main90182-T0007

9043022003

main90430-22003

90430T0004

main90430-T0004

9091009087

main90910-09087

90910T9001

main90910-T9001

16 parts on this diagram · 1 diagram in section
