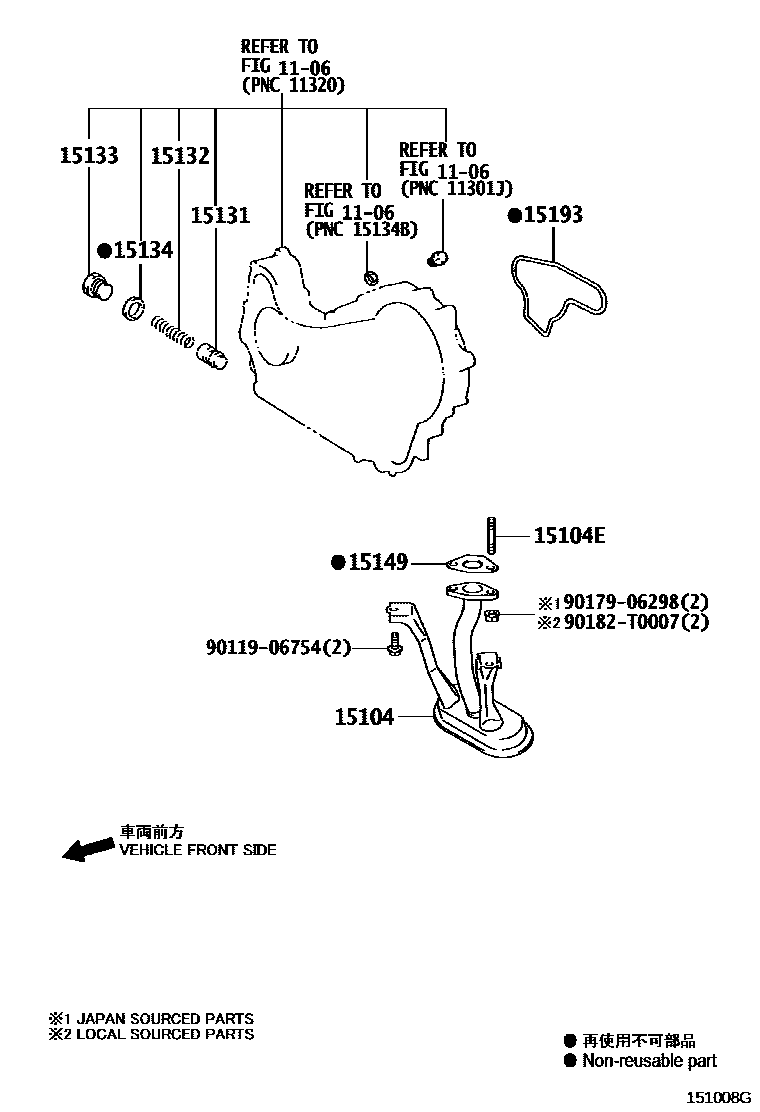

ENGINE OIL PUMP

1106

15104STRAINER SUB-ASSY, OIL

main15104-0L010i2KDFTV..KUN15,25..XTR200507-200608

*130

main15104-0L020i2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main15104-30050i2KDFTV..KUN25..DCB,SCB200507-201108

*163 OR *184

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200507-201108

*163 OR *184

main90116-T0020i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

15131VALVE, OIL PUMP RELIEF

main15131-46040i2KDFTV..KUN25..DCB,SCB200507-201108

*163 OR *184

main15131-46040i1KDFTV..KUN26..5F,5FC200808-201012

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i2KDFTV..KUN25..DCB,SCB200603-201108

*163 OR *184

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i2KDFTV..KUN25..DCB,SCB200603-201108

*163 OR *184

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i2KDFTV..KUN15,25200507-201108

*163 OR *184

15149GASKET, OIL STRAINER FLANGE

main15149-0L010i2KDFTV..KUN25..XTR200507-200610

*130

main15149-67010i2KDFTV..KUN25..DCB,SCB200507-201108

*163 OR *184

15193GASKET, OIL PUMP

main15193-0L010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main15193-67011i1KDFTV..KUN26..5F,5FC200507-201108

*163 OR *184

main15193-67011i1KDFTV..KUN26..5F,5FC200808-201108

ENGINE NO.=7XXXXXX

9011906754

main90119-06754

9017906298

main90179-06298

90182T0007

main90182-T0007

12 parts on this diagram · 1 diagram in section
