CRANKSHAFT & PISTON

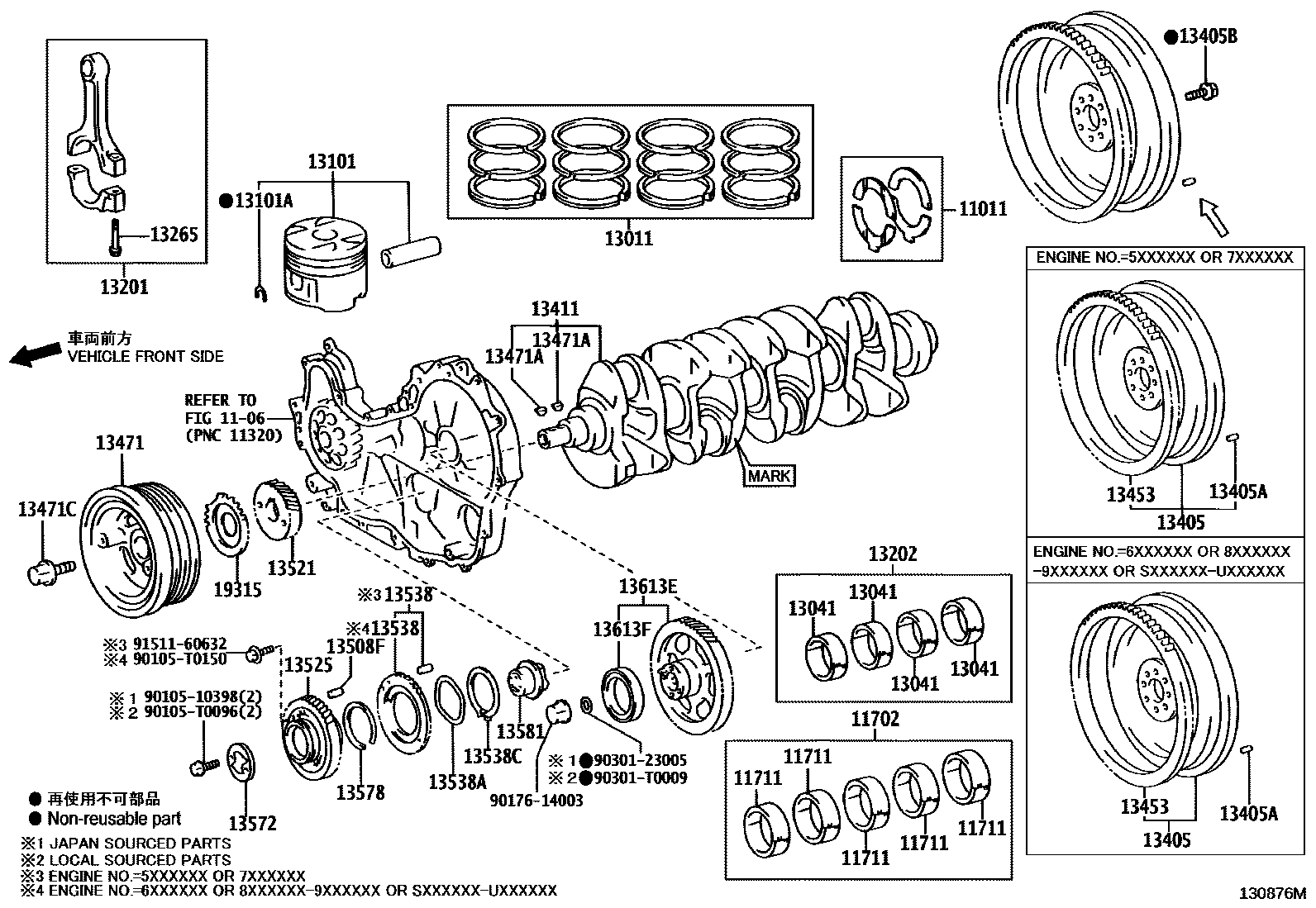

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-0L020i200507-200610
STD,*130
main11011-30010i200507-201108
STD,*163 OR *184
main11012-30010i200507-200810
O/S 0.125
main11012-30010i200808-201108
O/S 0.125,*163 OR *184
main11013-30010i200507-200810
O/S 0.250
main11013-30010i200808-201108
O/S 0.250,*163 OR *184
1106
11702BEARING SET, CRANKSHAFT
main11704-30020i200507-200810
U/S 0.25
main11704-30020i200808-201108
U/S 0.25,*163 OR *184
main11705-30020i200808-201108
U/S 0.50,*163 OR *184
main11705-30020i200507-200810
U/S 0.50
11711BEARING, CRANKSHAFT
main11701-0L020-02i200507-200610
MARK2,*130:REFER R/M
main11701-0L020-03i200507-200610
MARK3,*130:REFER R/M
main11701-0L020-04i200507-200610
MARK4,*130:REFER R/M
main11701-0L020-05i200507-200610
MARK5,*130:REFER R/M
main11701-0L020-06i200507-200610
MARK6,*130:REFER R/M
main11701-30020-02i200507-201108
MARK2,*163 OR *184,RRM
sub11701-30020
main11701-30020-03i200507-201108
MARK3,*163 OR *184,RRM
sub11701-30020
main11701-30020-04i200507-201108
MARK4,*163 OR *184,RRM
sub11701-30020
main11701-30020-05i200507-201108
MARK5,*163 OR *184,RRM
sub11701-30020
main11701-30020-06i200507-201108
MARK6,*163 OR *184,RRM
sub11701-30020
13011RING SET, PISTON
main13011-0L020i200507-200610
STD,*130
sub13011-0L021
main13011-30080i200507-201108
STD,*163 OR *184
sub13011-30081
main13011-30090i200610-200810
STD,*163 OR *184
sub13011-30150
main13011-30090i200808-200906
STD
sub13011-30150
main13011-30120i200908-201108
STD
main13011-30150i200906-201108
STD
main13013-30030i200507-200610
O/S 0.50
sub13013-30031
main13013-30080i200801-201108
O/S 0.50,*163 OR *184
main13013-30080i200608-200801
O/S 0.50
main13013-30090i200610-200906
O/S 0.50
sub13013-30150
main13013-30120i200908-201108
O/S 0.50
main13013-30150i200906-201108
O/S 0.50
main13014-30090i200610-200906
O/S 0.75
sub13014-30150
main13014-30150i200906-201108
O/S 0.75
main13015-30090i200610-200906
O/S 1.00
sub13015-30150
main13015-30150i200906-201108
O/S 1.00
13041BEARING, CONNECTING ROD
main13041-0L020-02i200507-200610
MARK2,*130:REFER R/M
main13041-0L020-03i200507-200610
MARK3,*130:REFER R/M
main13041-0L020-04i200507-200610
MARK4,*130:REFER R/M
main13041-0L020-05i200507-200610
MARK5,*130:REFER R/M
main13041-0L020-06i200507-200610
MARK6,*130:REFER R/M
main13041-30020-02i200507-201108
MARK2,*163 OR *184,RRM
sub13041-30020
main13041-30020-02i200808-201108
MARK2,REFER REPAIR MANUAL
sub13041-30020
main13041-30020-03i200507-201108
MARK3,*163 OR *184,RRM
sub13041-30020
main13041-30020-03i200808-201108
MARK3,REFER REPAIR MANUAL
sub13041-30020
main13041-30020-04i200808-201108
MARK4,REFER REPAIR MANUAL
sub13041-30020
main13041-30020-04i200507-201108
MARK4,*163 OR *184,RRM
sub13041-30020
main13041-30020-05i200507-201108
MARK5,*163 OR *184,RRM
sub13041-30020
main13041-30020-05i200808-201108
MARK5,REFER REPAIR MANUAL
sub13041-30020
main13041-30020-06i200507-201108
MARK6,*163 OR *184,RRM
sub13041-30020
main13041-30020-06i200808-201108
MARK6,REFER REPAIR MANUAL
sub13041-30020
13101PISTON SUB-ASSY, W/PIN
main13101-0L020-01i200507-200608
STD,MARK1,*130:REFER R/M
sub13101-0L051
main13101-0L020-01i200507-200608
STD,MARK1,*130,(L):REFER R/M
sub13101-0L051
main13101-0L020-02i200507-200608
STD,MARK2,*130:REFER R/M
sub13101-0L051
main13101-0L020-02i200507-200608
STD,MARK2,*130,(L):REFER R/M
sub13101-0L051
main13101-0L020-03i200507-200608
STD,MARK3,*130:REFER R/M
sub13101-0L051
main13101-0L020-03i200507-200608
STD,MARK3,*130,(L):REFER R/M
sub13101-0L051
main13101-30031-01i200507-200610
STD,MARK1,*163 OR *184,RRM
sub13101-30081
main13101-30031-01i200507-200610
STD,MARK1,*130,(J):REFER R/M
sub13101-30081
main13101-30031-02i200507-200610
STD,MARK2,*163 OR *184,RRM
sub13101-30081
main13101-30031-02i200507-200610
STD,MARK2,*130,(J):REFER R/M
sub13101-30081
main13101-30031-03i200507-200610
STD,MARK3,*130,(J):REFER R/M
sub13101-30081
main13101-30031-03i200507-200610
STD,MARK3,*163 OR *184,RRM
sub13101-30081
main13101-30090-01i200610-200908
STD,MARK1,*163 OR *184,RRM
sub13101-30150
main13101-30090-02i200610-200908
STD,MARK2,*163 OR *184,RRM
sub13101-30150
main13101-30090-03i200610-200908
STD,MARK3,*163 OR *184,RRM
sub13101-30150
main13101-30100-01i200608-200810
STD,MARK1,*163 OR *184,RRM
sub13101-30101
main13101-30100-01i200808-200812
STD,MARK1,REFER REPAIR MANUAL
sub13101-30101
main13101-30100-02i200608-200810
STD,MARK2,*163 OR *184,RRM
sub13101-30101
main13101-30100-02i200808-200812
STD,MARK2,REFER REPAIR MANUAL
sub13101-30101
main13101-30100-03i200608-200810
STD,MARK3,*163 OR *184,RRM
sub13101-30101
main13101-30100-03i200808-200812
STD,MARK3,REFER REPAIR MANUAL
sub13101-30101
main13101-30101-01i200812-200908
STD,MARK1,REFER REPAIR MANUAL
sub13101-30102
main13101-30101-02i200812-200908
STD,MARK2,REFER REPAIR MANUAL
sub13101-30102
main13101-30101-03i200812-200908
STD,MARK3,REFER REPAIR MANUAL
sub13101-30102
main13101-30102-01i200909-201108
STD,MARK 1,REFER REPAIR MANUAL
main13101-30102-02i200909-201108
STD,MARK 2,REFER REPAIR MANUAL
main13101-30102-03i200909-201108
STD,MARK 3,REFER REPAIR MANUAL
main13101-30140-01i200908-201108
STD,MARK1,REFER REPAIR MANUAL
main13101-30140-02i200908-201108
STD,MARK2,REFER REPAIR MANUAL
main13101-30140-03i200908-201108
STD,MARK3,REFER REPAIR MANUAL
main13101-30150-01i200908-201108
STD,MARK1,*163 OR *184,RRM
sub13101-30200
main13101-30150-02i200908-201108
STD,MARK2,*163 OR *184,RRM
sub13101-30200
main13101-30150-03i200908-201108
STD,MARK3,*163 OR *184,RRM
sub13101-30200
main13101-30160-01i200908-200909
STD,MARK 1,REFER REPAIR MANUAL
sub13101-30102
main13101-30160-02i200908-200909
STD,MARK 2,REFER REPAIR MANUAL
sub13101-30102
main13101-30160-03i200908-200909
STD,MARK 3,REFER REPAIR MANUAL
sub13101-30102
main13103-0L070i200908-201108
O/S 0.50
main13103-30030i200507-200610
O/S 0.50
sub13103-30081
main13103-30090i200610-200810
O/S 0.50
sub13103-30150
main13103-30090i200808-200908
O/S 0.50,*163 OR *184
sub13103-30150
main13103-30100i200608-200812
O/S 0.50
sub13103-30101
main13103-30101i200812-200908
O/S 0.50
sub13103-30102
main13103-30102i200909-201108
O/S 0.50
main13103-30150i200908-201108
O/S 0.50,*163 OR *184
sub13103-30200
main13103-30160i200908-200909
O/S 0.50
sub13103-30102
main13104-30090i200610-200810
O/S 0.75
sub13104-30150
main13104-30090i200808-200908
O/S 0.75,*163 OR *184
sub13104-30150
main13104-30150i200908-201108
O/S 0.75,*163 OR *184
sub13104-30200
main13105-30090i200808-200908
O/S 1.00,*163 OR *184
sub13105-30150
main13105-30090i200610-200810
O/S 1.00
sub13105-30150
main13105-30150i200908-201108
O/S 1.00,*163 OR *184
sub13105-30200
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-37014i200507-201108
13201ROD SUB-ASSY, CONNECTING
main13201-0L030i200507-200608
*130,(L)
sub13201-0L011
main13201-0L030i200507-200608
*130
sub13201-0L011
main13201-30030i200507-200608
*130,(J)
sub13201-30031
main13201-30040i200507-200810
*163 OR *184
sub13201-30041
main13201-30040i200608-200610
*130
sub13201-30041
main13201-30040i200808-200903
sub13201-30041
main13201-30041i200903-201108
main13201-30050i200610-200903
*163 OR *184
sub13201-30051
main13201-30051i200903-201108
*163 OR *184
13202BEARING SET, CONNECTING ROD
main13204-30020i200507-201108
U/S 0.25
main13205-30020i200507-201108
U/S 0.50
13265BOLT, CONNECTING ROD
main13265-67021i200507-201108
13405FLYWHEEL SUB-ASSY
main13405-0L010i200507-200608
*130
main13405-0L020i200507-200608
*130
sub13405-0L021
main13405-0L040i200507-200610
*130
main13405-0L050i200507-200610
*130
main13405-0L060i200507-200610
*130
main13405-30020i200507-200610
*163 OR *184
main13405-30030i200507-200806
*163 OR *184
sub13405-30031
main13405-30031i200806-201108
*163 OR *184
main13405-67030i200507-201108
*163 OR *184
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-05121i200507-201108
L=15,OD=5,*163 OR *184
main90250-08054i200507-200610
L=23,OD=8,*163 OR *184
main90250-10192i200507-201108
L=22,OD=10,*163 OR *184
main90250-T0008i200507-200610
L=22,OD=10,*130
main90250-T0010i200507-200610
L=23,OD=8,*130
main90250-T0013i200507-200610
L=15,OD=5,*130
13405BBOLT, FLYWHEEL SETTING
main90105-13010i200507-201108
*163 OR *184
main90105-T0113i200507-200610
*130
13411CRANKSHAFT
main13401-0L030i200908-201101
*163 OR *184,NO MARK
sub13401-0L100
main13401-0L030i200507-200608
*130,(L)
sub13401-0L100
main13401-0L100i201101-201108
*163 OR *184,(L)
sub13401-30060
main13401-30020i200507-200608
*130,(J)
sub13401-30060
main13401-30030i200608-200610
*130
sub13401-30060
main13401-30030i200507-200905
*163 OR *184
sub13401-30060
main13401-30040i200610-200905
*163 OR *184
sub13401-30050
main13401-30050i200905-201108
*163 OR *184
main13401-30060i201101-201108
*163 OR *184,(J)
main13401-30060i200905-201101
*163 OR *184
main13401-30060i200908-201101
*163 OR *184,MARK F
13453GEAR, FLYWHEEL RING
main13453-0L010i200507-200610
*130
main13453-67030i200507-201108
*163 OR *184
13471PULLEY, CRANKSHAFT
main13408-0L020i200507-200610
*130
main13408-30010i200507-200901
*163 OR *184
sub13408-30011
main13408-30011i200901-201108
*163 OR *184
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-T0002i200507-200608
*130,(L)
main90280-T0002i200908-201108
*163 OR *184,(L)
main95161-30516i200507-201108
*163 OR *184
main95161-30516i200905-201108
*163 OR *184,(J)
main95161-30516i200507-200608
*130,(J)
main95161-30516i200507-200610
*130
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-18003i200507-201108
*163 OR *184
main90119-T0218i200507-200610
*130
13508FPIN, STRAIGHT(FOR IDLE GEAR)
main90250-05027i200507-200610
*130
main90250-05027i200507-201108
*163 OR *184
main90250-T0011i200507-200608
*130
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0L010i200507-200608
*130
main13521-67020i200507-201108
*163 OR *184
main13521-67020i200507-200610
*130
13525GEAR, IDLE, NO.1
main13508-0L010i200507-200608
*130
main13508-30011i200507-200810
*163 OR *184
main13508-30011i200507-200610
*130
main13508-30011i200808-201108
*163 OR *184,TYPE A
main13508-67011i200610-201108
*163 OR *184
13538GEAR, IDLE SUB, NO.2
main13538-0L010i200507-200608
*130
main13538-67900i200507-201108
*163 OR *184
main13538-67900i200507-200610
*130
13538AWASHER, WAVE
main90206-69001i200507-200610
*130
main90206-69001i200507-201108
*163 OR *184
main90206-T0001i200507-200608
*130
13538CRING, SHAFT SNAP
main90520-58002i200507-201108
*163 OR *184
main90520-58002i200507-200610
*130
main90520-T0032i200507-200608
*130
13572PLATE, IDLE GEAR THRUST
main13572-0L010i200507-200610
*130
main13572-67041i200507-201108
*163 OR *184
13578SPRING, IDLE GEAR
main13578-0L010i200507-200608
*130
main13578-67010i200507-200610
*130
main13578-67010i200507-201108
*163 OR *184
13581SHAFT, IDLE GEAR, NO.1
main13581-0L010i200507-200610
*130
main13581-67041i200507-201108
*163 OR *184
13613EGEAR, INJECTION
main13603-0L010i200507-200608
*130
main13603-30020i200507-201108
*163 OR *184
main13603-30020i200507-200610
*130
13613FBEARING, RADIAL BALL
main90363-67001i200507-201108
*163 OR *184
main90363-67001i200507-200610
*130
19315PLATE, CRANK ANGLE SENSOR, NO.1
main19315-0L010i200507-200610
*130
main19315-30010i200507-201108
*163 OR *184
9010510398
main90105-10398
90105T0096
main90105-T0096
90105T0150
main90105-T0150
9017614003
main90176-14003
9030123005
main90301-23005
90301T0009
main90301-T0009
9151160632
main91511-60632

38 parts on this diagram · 3 diagrams in section

CRANKSHAFT & PISTON — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
