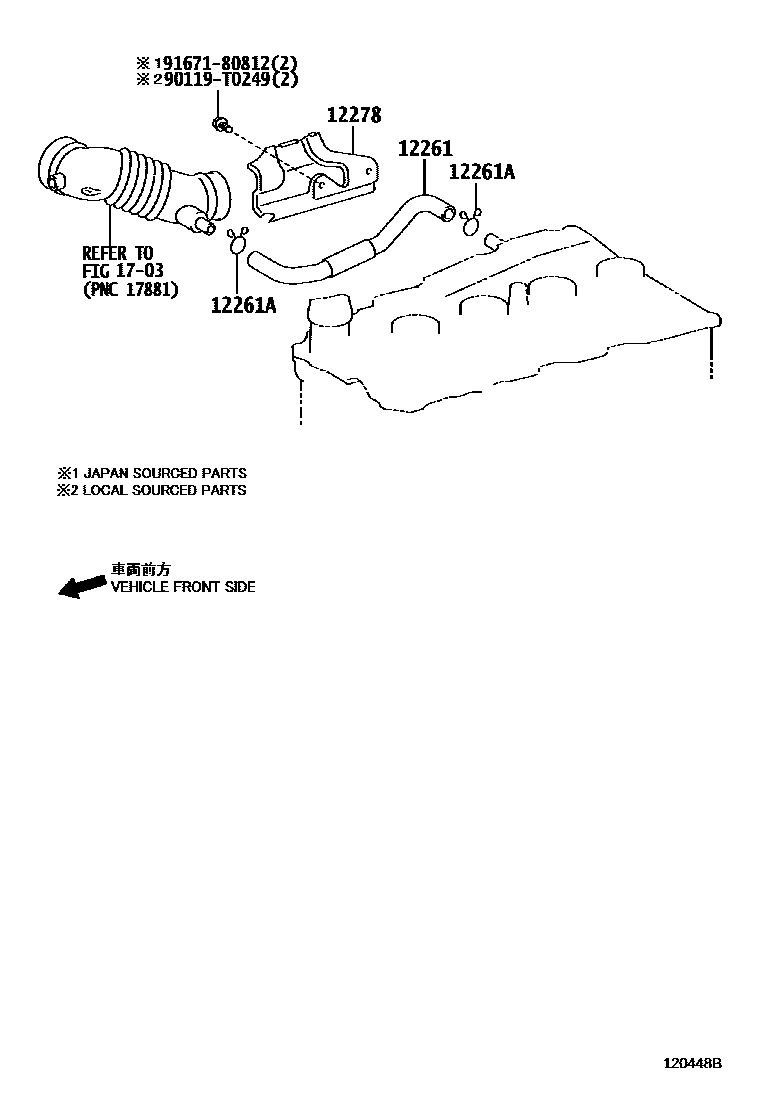

VENTILATION HOSE

0001 1 0003 1 0004 1 0007 1

12261HOSE, VENTILATION

main12261-0L020i2KDFTV..KUN15,25200507-200607

main12261-0L021i2KDFTV..KUN25..XTR200607-200608

main12261-30040i1KDFTV..KUN26..5F,5FC200808-200908

*163 OR *184

main12261-30070i2KDFTV..KUN25..DCB,SCB200610-200810

main12261-30090i2KDFTV..KUN15,25200809-201108

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-T0032×2i2KDFTV..KUN25..XTR200507-200608

main90467-22010i2KDFTV..KUN15..DCB,SCB;2KDFTV..KUN25..DCB,SCB,XTR;2KDFTV..KUN25..LHD..(THDCB,THSCB)200808-201108

main90467-28002i2KDFTV..KUN25..DCB,SCB200610-200810

NO.2

12278INSULATOR, VENTILATION HOSE HEAT

main12278-0L010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main12278-30020i2KDFTV..KUN25..XTR200507-200608

*163 OR *184

1703

90119T0249

main90119-T0249

9167180812

main91671-80812

6 parts on this diagram · 4 diagrams in section
