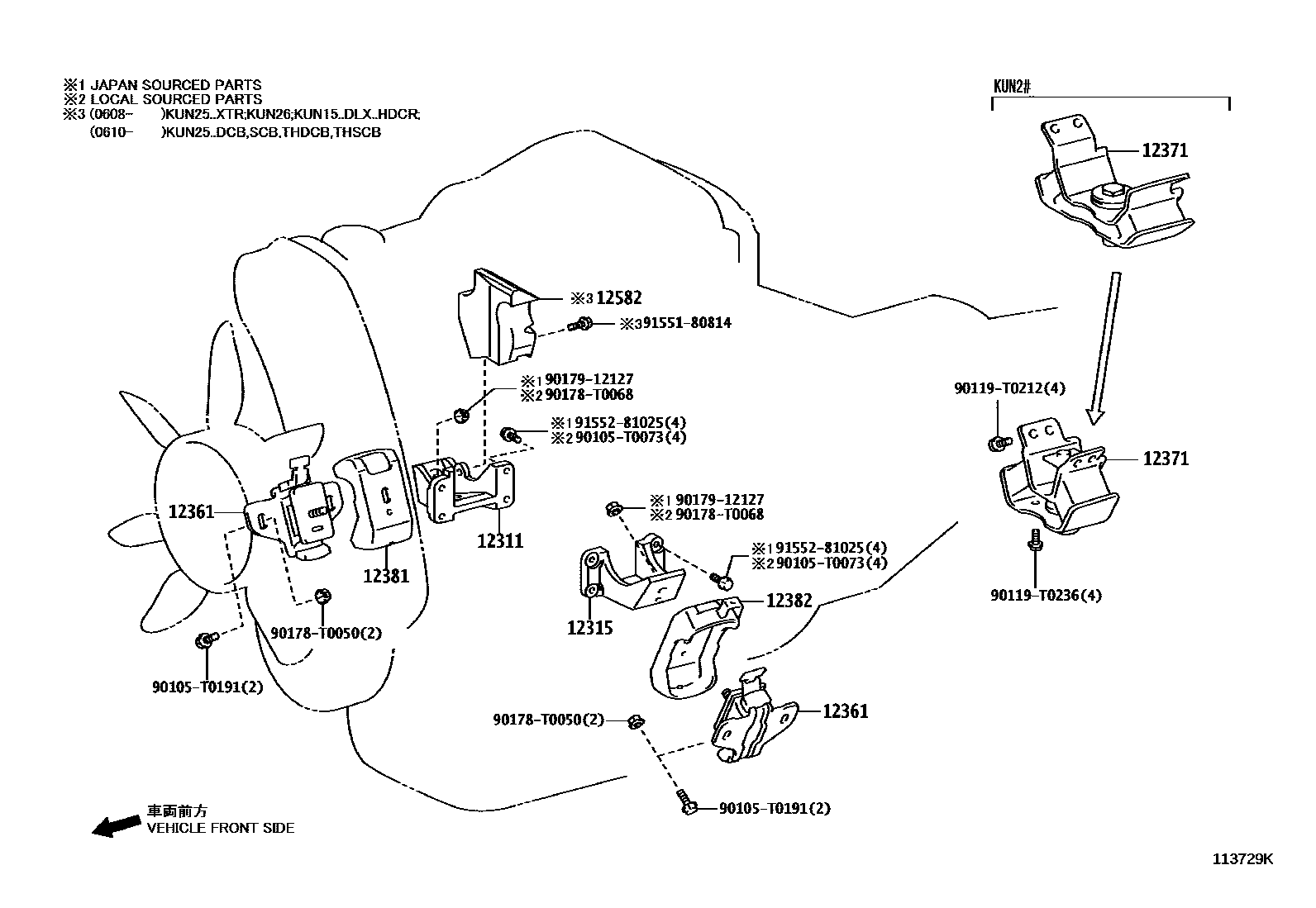

MOUNTING

0001 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0L020i2KDFTV..KUN15,25..XTR200507-200608

*130

main12311-0L030i2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main12311-67021i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

*163 OR *184

main12311-67021i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0L020i2KDFTV..KUN15,25..XTR200507-200608

*130

main12315-0L030i2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main12315-67011i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-200810

*163 OR *184

main12315-67011i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0L030i2KDFTV..KUN25..DCB,SCB,XTR;1KDFTV,2KDFTV..KUN15,26..(DCB,SCB)..5F;1KDFTV,2KDFTV..KUN2#..LHD..(THDCB,THSCB)..5F200507-201108

(L)

main12361-30080i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

(J)

main12361-30131i1KDFTV..KUN26..5FC200808-201105

sub12361-30160

main12361-30160i1KDFTV..KUN26..DCB..5FC;1KDFTV..KUN26..LHD..THDCB..5FC201106-201108

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-0C070i2KDFTV..KUN15..DCR200507-200610

sub12371-0C071

main12371-0L030i2KDFTV..KUN15200608-201102

sub12371-0L031

main12371-0L031i2KDFTV..KUN15..DCB,SCB201103-201108

main12371-0L050i2KDFTV..KUN15..SR200507-200610

sub12371-0L051

main12371-0L080i1KDFTV,2KDFTV..KUN2#..5F200507-201102

sub12371-0L081

main12371-0L081i1KDFTV,2KDFTV..KUN2#..(DCB,SCB,XTR)..5F;1KDFTV,2KDFTV..KUN2#..LHD..(THDCB,THSCB)..5F201103-201108

main12371-0L100i1KDFTV..KUN26..5FC200808-201102

sub12371-0L101

main12371-0L101i1KDFTV..KUN26..RHD..THDCB..5FC201103-201108

12381STABILIZER, ENGINE MOUNTING

main12381-0L031i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

(L)

main12381-30021i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

(J)

main12381-30050i1KDFTV..KUN26..THDCB..5FC200808-200811

main12381-30060i1KDFTV..KUN26..DCB..5FC200810-200811

main12381-30061i1KDFTV..KUN26..DCB..5FC;1KDFTV..KUN26..LHD..THDCB..5FC200811-201108

12382STABILIZER, ENGINE MOUNTING, LH

main12382-0L040i1KDFTV,2KDFTV..KUN15,2#..4FC,5F200507-201108

(L)

main12382-30031i2KDFTV..KUN25..DCB,SCB,XTR;1KDFTV,2KDFTV..KUN15,26..(DCB,SCB)..5F;1KDFTV,2KDFTV..KUN2#..LHD..(THDCB,THSCB)..5F200507-201108

(J)

main12382-30040i1KDFTV..KUN26..THDCB..5FC200808-200811

main12382-30050i1KDFTV..KUN26..DCB..5FC200810-200811

main12382-30051i1KDFTV..KUN26..DCB..5FC;1KDFTV..KUN26..LHD..THDCB..5FC200811-201108

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-30010i2KDFTV..KUN15..THDCB,THSCB,XTR;1KDFTV,2KDFTV..KUN2#..RHD..(THDCB,THSCB)200808-201108

sub12582-30011

main12582-30010i1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR200608-200810

*163 OR *184

sub12582-30011

90105T0073

main90105-T0073

90105T0191

main90105-T0191

90119T0212

main90119-T0212

90119T0236

main90119-T0236

90178T0050

main90178-T0050

90178T0068

main90178-T0068

9017912127

main90179-12127

9155180814

main91551-80814

9155281025

main91552-81025

16 parts on this diagram · 2 diagrams in section
